安裝方法
HOW TO INSTALL
100 50
1 1
( 100 mm)
Pipe
( 98 mm)
Adapter
1
2

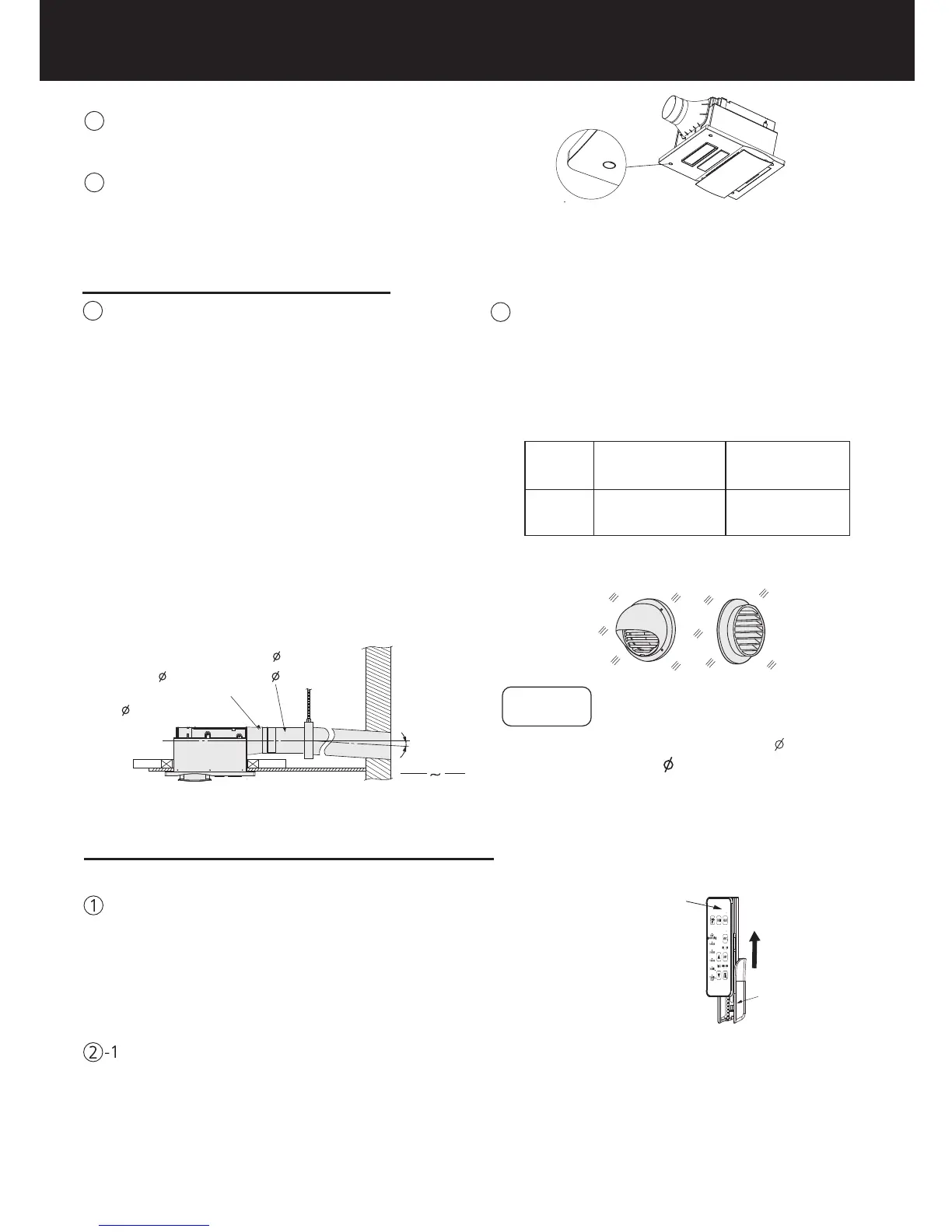

4.Connecting Duct Pipe
Install the duct pipe onto the adapter, and
then bind them tightly with adhesive tape.
Suspend the duct pipe from the ceiling to
prevent external force exerted on the unit
body. The duct pipe connected to outside
of the room must be slanted to prevent rain
or condensed water from flowing backwards.
(This duct pipe should be as short as possible.
please connect straight pipe to prolong the
duct pipe. Total length of the duct pipe should
be shorter than 30 m.)
Indoors
Outdoors
Slant taper
Vent cap
Pipe hood
Install the pipe cap or pipe cover on the
external wall. ( We recommend you purchase
products of the following models provided
by KDK.)
Model
Vent cap
Pipe hood
Name
The minimum diameter of the hole: 110 mm.
4
Attach the unclenched screw caps again.
MCX100K VCX100K
Screw caps (4pcs)
Take out the remote control from the holder.
遙控器的安裝
把遙控器從遙控器底座抽出。
5.Installing the remote control
Check the main body can receive the signal from the intended remote control installation
location. If remote control can not receive the signal from this installation location, please
choose another installation location, or operate the remote control toward product after
taking out it from the holder. The installation location cannot be toward the direct spraying
area of the shower.
遙控器安裝前，請在預定安裝的位置上檢測機體接收信號的效果，若該位置無法使機體正常接收 ，請
另選擇合適的位置或使用時把遙控器從底座中取出對著機體進行操作。且安裝位置應避免在花灑 直淋處。
底座
Holder
Pull up
遙控器
向上拔出
Remote
control
將撬開的螺絲蓋重新蓋好。
螺絲 蓋(4處)
管道的連接
將管道裝入出風口接頭上，然後用膠帶紮緊。
將管道從天花板上懸掛下來，以防止外力施
加於機體。通往屋外的管道必須保持傾斜，
防止雨水或結露水倒流。(此管道要盡可能短，
若需接長管，則最長不要使用超 的直管30 m 。)
將管罩或管蓋安裝到牆外。
(建議購買本公司如下所示型號的產品)
名稱
管罩
型號
管蓋
管罩 管蓋
出風 口接 頭
( 98 mm)
( 100 mm)管道
屋內
傾斜 角度
屋外
提示事項
Notice
牆壁通風孔最小直徑： 110 mm。
(具體開孔要求請參照所選管罩或管蓋的說明書）
5
Please remove the protective film on the mode
button panel on main body after finishing the
installation.
安裝完 成後請將 模式按鈕 面板上的保護膜撕掉。
