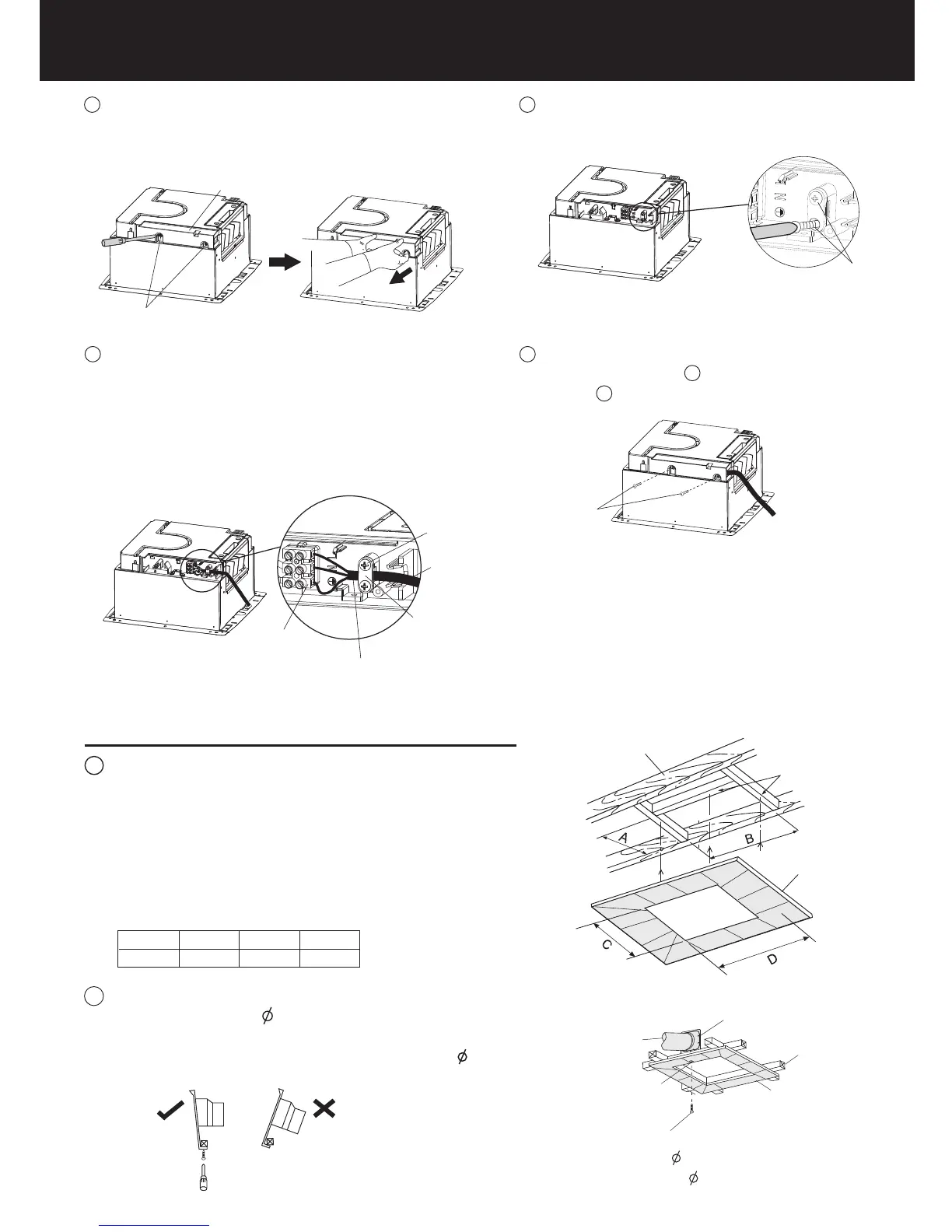

安裝方法
HOW TO INSTALL
1
2
取下接線蓋板上的螺絲 顆 ，打開接線蓋板。(2 )
接線蓋板
螺絲
鬆脫 的螺絲。固定線夾
鬆開接線柱上的螺絲，將接入室內的電源線(另購)
插入接線柱，再 擰緊接線柱螺絲。用線夾將電源線
固定。(線夾必須壓住電源線絕緣護套)
螺絲
電源線
線夾
接線柱
絕緣護套
Remove the screws(2pcs) on the cord cover,
then open the cord cover.
Cord cover
Screws
Loosenthescrewsofthecordclip.
Loosen the screws of the terminal, insert the
indoor power cord (not supplied) into the
terminal, then tighten the screws. Fix the power
cord with the cord clip. (The cord clip must pin
the insulation sheath of power cord.)
Screws
Power
cord
Cord clip
Insulation sheath
Terminal
2 Main body installation
Method 1 ordinary ceiling
1
Make a wooden frame and install it onto the ceiling
joist. Ensure that the total thickness of the wooden
frame and ceiling should be 20 mm 30 mm.
~
Meanwhile, open a mounting hole in the ceiling
board with dimensions as shown in the table below:
(unit: mm)
Ceiling
board
Wooden
frame
A B
C
D
300 300
300 300
2
Install the adapter (make the fixing hole in the
middle). Use one 4 x 20 self-tapping screw to fix
the adapter to the ceiling.
Ceiling board
Wooden
frame
Adapter
Self-tapping
screw 4 x20
Duct pipe
築造木框以及將木框(注意：木框與天花板的厚度應在
20 mm 30 mm
~
之間)安裝到天花板擱柵上， 同時在天
花板上開安裝孔，具體尺寸如下表：(單位：mm)
木框
天花板
出風口接頭的安裝(請將固定孔居中安裝)用 顆 的1 4x20
自攻螺絲，將出風口接頭固定於天花板上。
管道
出風口接頭
木框
天花板
自攻螺絲
4x20
機體的安裝
方法一 普通天花板
Fixing hole
固定孔
3 4
Fix the cord cover by the screws which
removed by step .
1
用步驟 拆 下的螺絲,將 接線蓋板 重新固定。
1
Screws
螺絲
Screws
螺絲
Ceiling joist
天花板擱柵
