10
安裝方法
HOW TO INSTALL
After completion of the installation work, be
sure the condition between the main body and
the adapter is proper. It can be checked from
the inspection hole.
Use one 4 x 20 self-tapping screw to fix the
adapter. Be sure to fix this screw because it
can prevent the main body from falling off the
ceiling board.

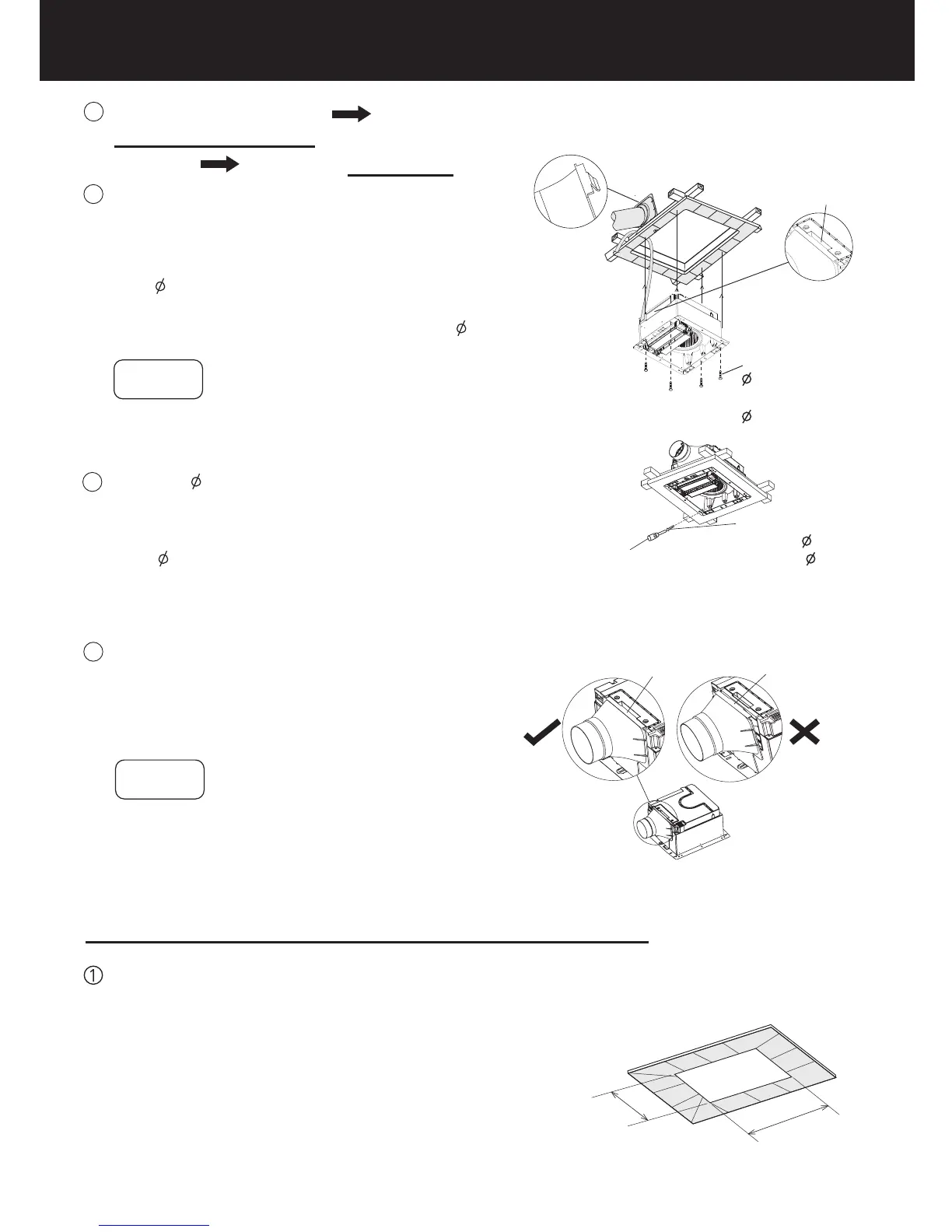

Push the main body upward into the ceiling board
and wooden frame by closely leaning against the
adapter, clip the clipping position of the adapter
into the Locating slot of the main body (otherwise,
may have air leakage), and fix the main body with
four 4 x 20 self- tapping screws.
3
Connecting the duct pipe Refer to Section
4.Duct Pipe Connection on P.14.
4
5
6
If adapter fails to cling to the main body, it
may cause air leakage.
Self-tapping
screws 4 x20
Cross screwdriver
(not longer than 150 mm)
Self-tapping
screws
4 x 20 (4 pcs)
Clipping position
of the adapter
Locating slot
of the main
body
提示事項
Notice
2 Main body installation
Method 2 Ordinary ceiling mounting
如機體與出風口接頭未貼緊，會導致漏風。
連接管道。
參考第14頁 4.管道的連接
將機體緊靠出風口接頭往上推入天花板與木框，並使出風
口接頭卡位卡入機體固定槽(否則漏風)， 用 顆 的4 4x20
自攻螺絲將機體牢固地固定。
機體固定槽
出風口接頭卡位
自攻螺絲
4x20(4 )顆
用 顆 的自 攻螺絲將 機體牢固 地固定1 4x20 ，
。此螺絲能起到防止機體脫落的作用，請務必安裝
十字螺絲刀
(長度不大於150 mm)
自攻螺絲
4x20
安裝完成後，請務必從點檢口確認機體與出風口接頭
的安裝是否到位。
機體的安裝
方法二 普通天花板吊裝
Open a 300 mm x300 mm mounting hole in the ceiling board.
在天花 板上開一 個300 mm x300 mm的 安裝孔。
Unit: mm
單位：mm
天花板
Ceiling board
300
300
推入 時 請注意不要夾傷線。機體 ，
提示事項
Notice
Please be careful not to pinch the cord, when push
upward the main body.
卡到位
未卡到位
No buckled
Buckled
