8.3.4.1 Wiring RS485 full duplex
5 4 3 2 1
9 8 7 6
COMBIVERT
5 4 3 2 1
9 8 7 6
COMBIVERT
4 5 8 9
4 5 8 9
Master
TxD-A
TxD-B
RxD-A
RxD-B
R R
R
R

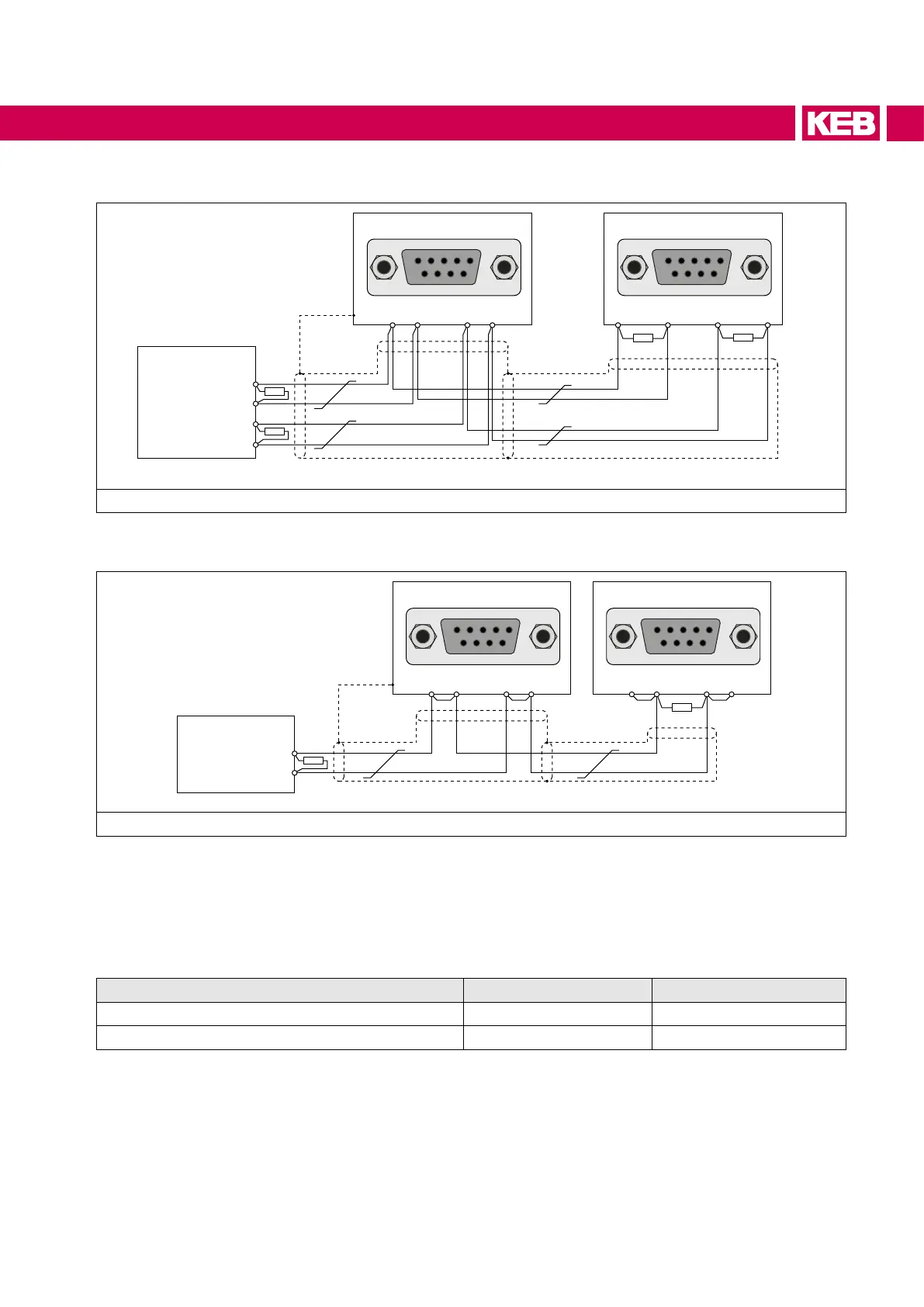

Figure 25: Wiring RS485 full duplex
8.3.4.2 Wiring RS485 half duplex
5 4 3 2 1
9 8 7 6
COMBIVERT
4 58 9
5 4 3 2 1
9 8 7 6
COMBIVERT
4 58 9
Master
RXD/TxD-A
RXD/TxD-B
R
R
Figure 26: Wiring RS485 half duplex
8.3.5 Remote control
A special HSP5 operator is available for remote control of the COMBIVERT F5. Hereby
the operator is mounted separate from the drive converter e.g. into the control cabinet
door.
Operator Material number Suitable cable
F5 HSP5 / 485 connection DSUB-15 00F5060-9000 00F50C0-2xxx
F5 HSP5 / 485 connection screw terminal 00F5060-9001 00F50C0-3xxx
xxx The last three digits of the material number determine the cable length in dm.
8.3.6 Further operators
Additionally to the described operators, the COMBIVERT can be equipped with other
operators for special applications (PROFIBUS, INTERBUS, SERCOS, CAN). Further
information => www.keb.de.
