KEB COMBIVERT F5 Series Instruction Manual

23
L1 L2 PEL3 PE ++ PB--
T1
T2
PE U WV
+PA
-
T1 T2
U
V
W
PB
L1 L2 L3

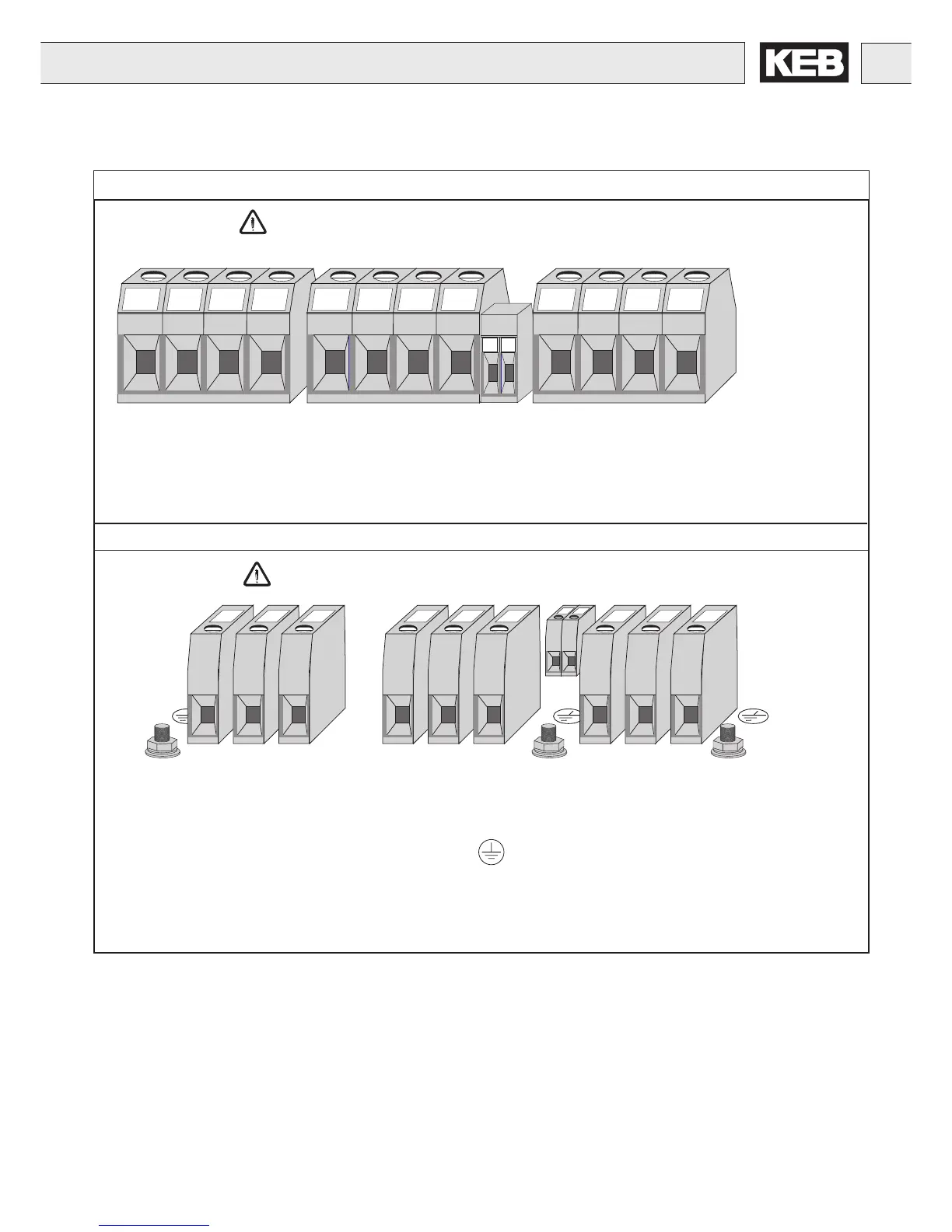

Power Circuit Terminals
Housing size R and U
L1, L2, L3 3 phase supply voltage
+ +, - - DC supply connection
+ +, PB Connection for braking resistor
T1, T2 Connection for temperature sensor
U, V, W Motor connection
Connection for earth ground
Note always verify input voltage with name plate for proper connection
Housing size H
Note always verify input voltage with name plate for proper connection 230V or 460V
T1, T2 Connection for temperature sensor
U, V, W Motor connection
PE Connection for earth ground
L1, L2, L3 3 phase supply voltage
+ +, - - DC supply connection
+ +, PB Connection for braking resistor
Terminal Tightening Torque: R housings 53 inlb
U housings size 23/24 130inlb
U housings sizes > 24 220 inlb
Terminal Tightening Torque: 22 inlb

KEB COMBIVERT F5 Series Specifications

General

Control Method	Vector Control, V/f Control
Protection Class	IP20
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, overtemperature
Communication Interfaces	CAN, PROFIBUS, Modbus RTU
Cooling Method	Fan Cooled
Relative Humidity	Up to 95% (non-condensing)
