Accessories

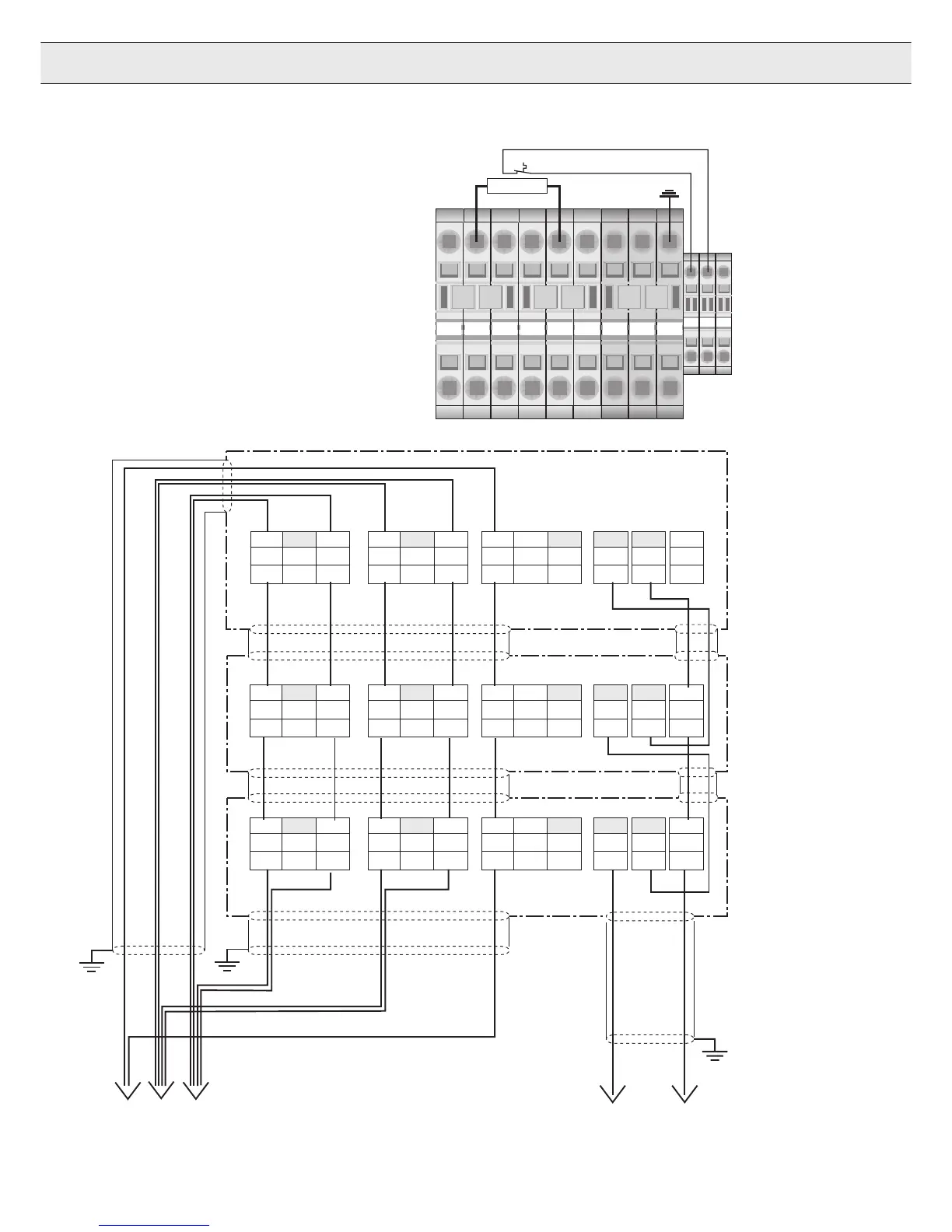

3.1.3 Parallel Connection of
Braking Resistors
ϑ=240°C
OH1
PA1 PA PA2 PB1 PB PB2 PE PE PE
OH2 OHC
PA1 PA PA2 PB1 PB PB2 PE PE PE
OH1 OH2 OHC
PA1 PA PA2 PB1 PB PB2 PE PE PE
OH1 OH2 OHC
PA1 PA PA2 PB1 PB PB2 PE PE PE
OH1 OH2 OHC
Terminal strip
braking resistor
GND PB
++
T1 T2
Rn
R2...Rn-1
R1

KEB COMBIVERT F5 Series Specifications

General

Control Method	Vector Control, V/f Control
Protection Class	IP20
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit, overtemperature
Communication Interfaces	CAN, PROFIBUS, Modbus RTU
Cooling Method	Fan Cooled
Relative Humidity	Up to 95% (non-condensing)
