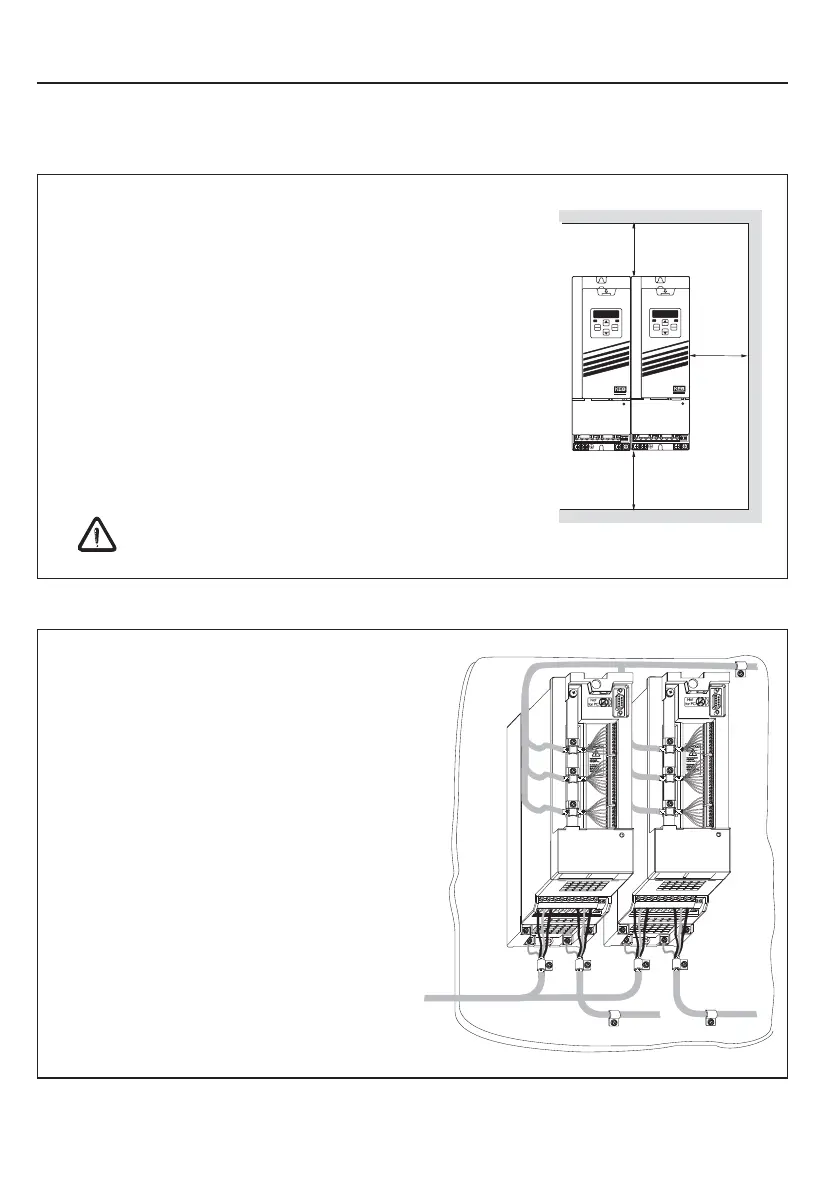

Installation and Connection
3. Installation and Connection
3.1 Control cabinet installation
3.2 EMC-conform Installation
Installation position and min.
distances
150 mm
30 mm
100 mm
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK
START
STOP
FUNC.
SPEED
ENTER
F/R
ANTRIEBSTECHNIK
6 inch
1 inch
4 inch
Protective system (EN 60529): IP20
Operation temperature: -10...45 °C (14...113 °F)
Storage temperature: -25...70 °C (-13...158 °F)
max. heat sink temperature: 90 °C (194 °F)
Climatic category (EN 60721-3-3): 3K3
Environment (IEC 664-1): Pollution degree 2
Vibration/Jolt according to: German. Lloyd; EN50155
The flat-rear design at size 04 requires cooling
measures by the machine builder. This can be in the
best case no further measure at all (e.g. at cyclic
operation with down times) up to the dissipation of the
entire, indicated heat loss at rated operation.
Protect the COMBIVERT against aggressive
gases and aerosols !
• Always apply the shielding of motor and
control cables over a large contact surface
on both sides.
• Distance between control and power cables
at least 10..20 cm (4...8 inch).
• Lay motor and power cable separately.
• If it cannot be avoided, cross control and
power cables in a right angle.
• Install all cables as close as possible to the
mounting plate - ideal in a metal cable duct.
• Mount COMBIVERT well conducting with the
mounting plate. Remove the paint
beforehand.
You can find further instructions regarding
the EMC-conform wiring in the Internet at
KEB.
