GB - 9
General

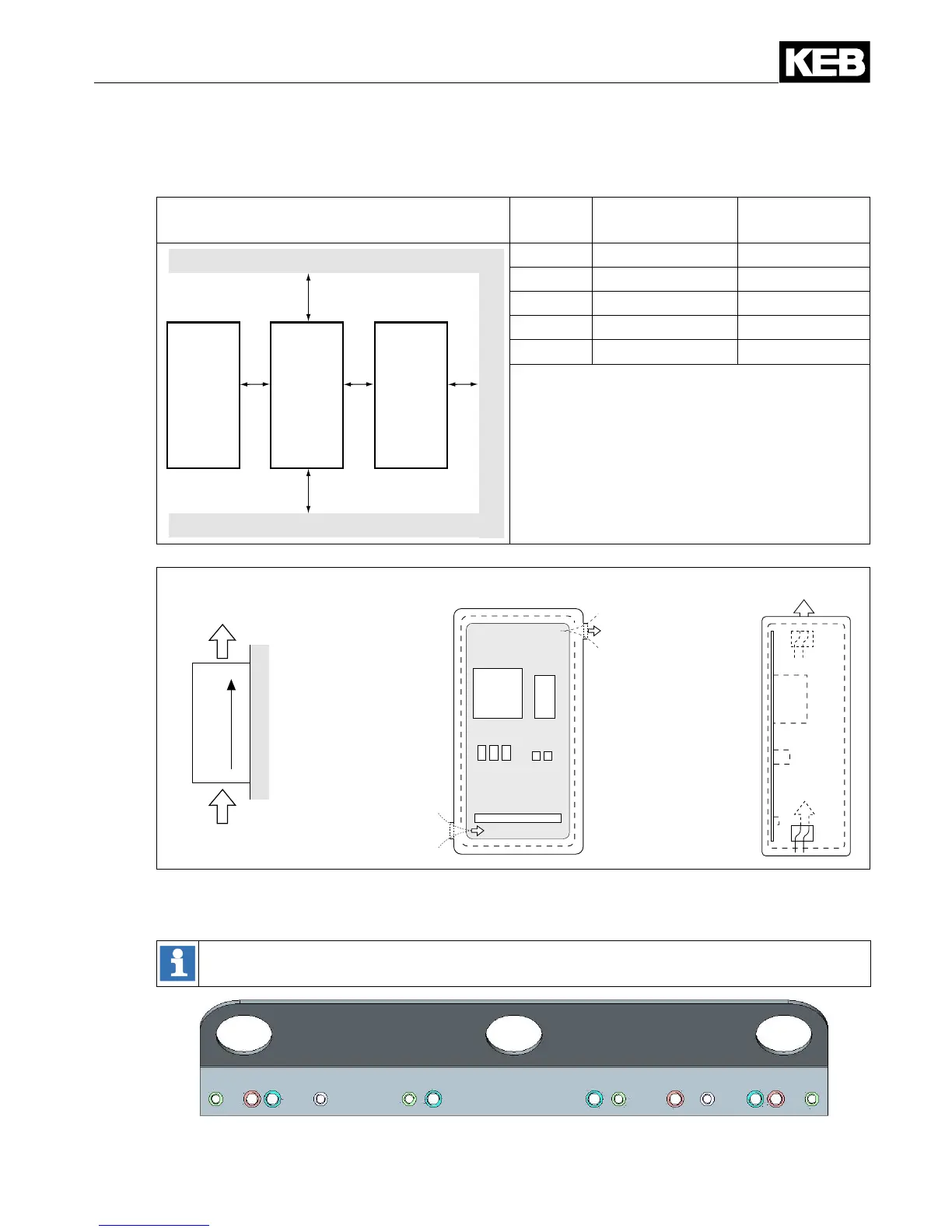

1.8.2 Control cabinet installation
Mounting distances Dimen-
sion
Distance in mm Distance in
inch
C
A
B
DD
A 150 6
B 100 4
C 30 1.2
D 30 1.2
X
1)
50 2
1) Distance to preceding elements in the cabinet door.
Direction of the
cooling ns
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
See annex C for instructions of water-cooled units.
1.8.3 Assembly aid
An assembly aid is available as accessories (part number 00F5ZTB-0001). It is
screwed to the inverter and enables the carriage by lifting devices.
