KeepRite DLFDAB - Outdoor Unit Wiring Diagrams; Outdoor Unit Wiring Diagram (09-12, 115 V); Outdoor Unit Wiring Diagram (09-12, 208;230 V)

10 328 080000 01
Specifications subject to change without notice.
WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR

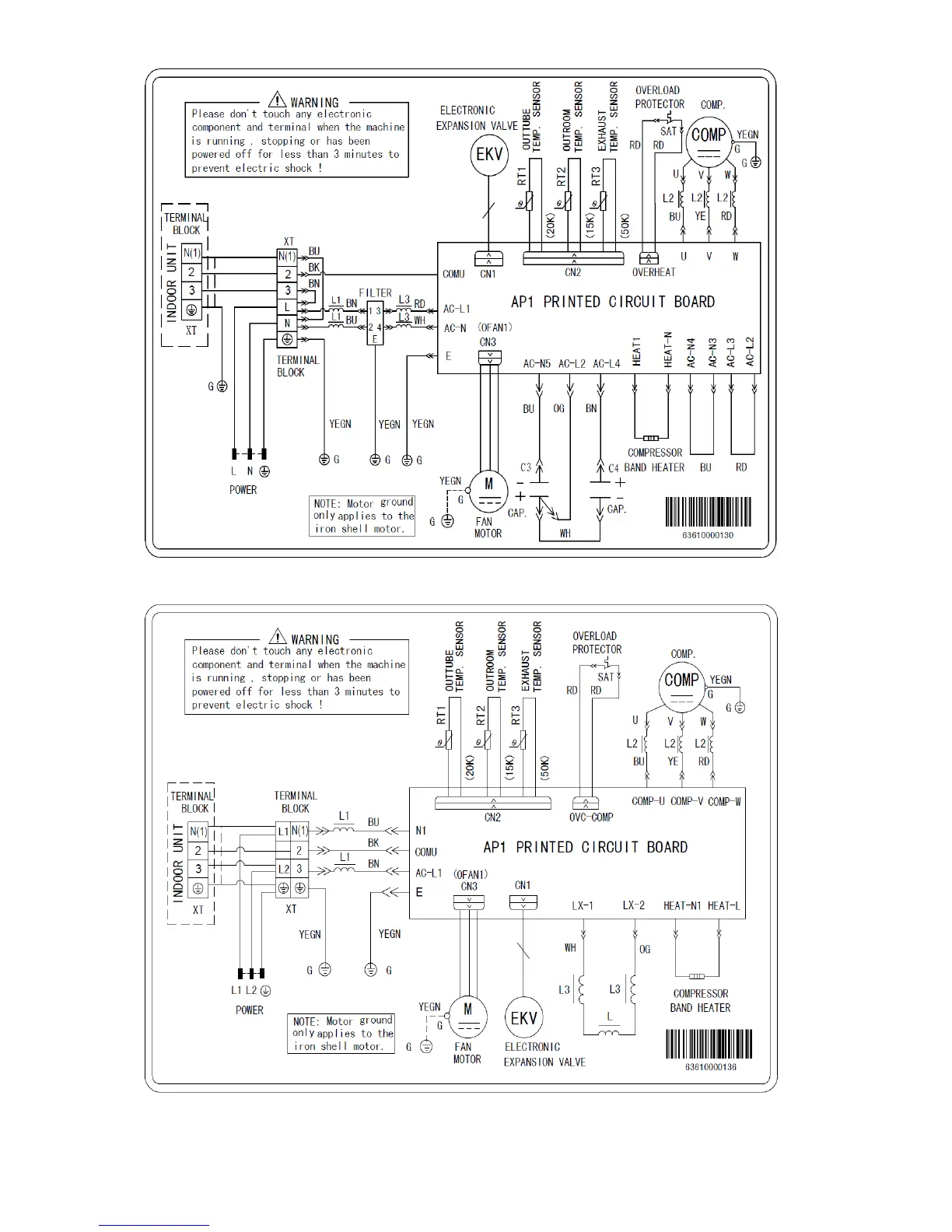

Fig. 12 - Outdoor Unit Sizes 09 − 12 (115V)
Fig. 13 - Outdoor Unit Sizes 09 − 12 (208/230V)
