DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT 9−12

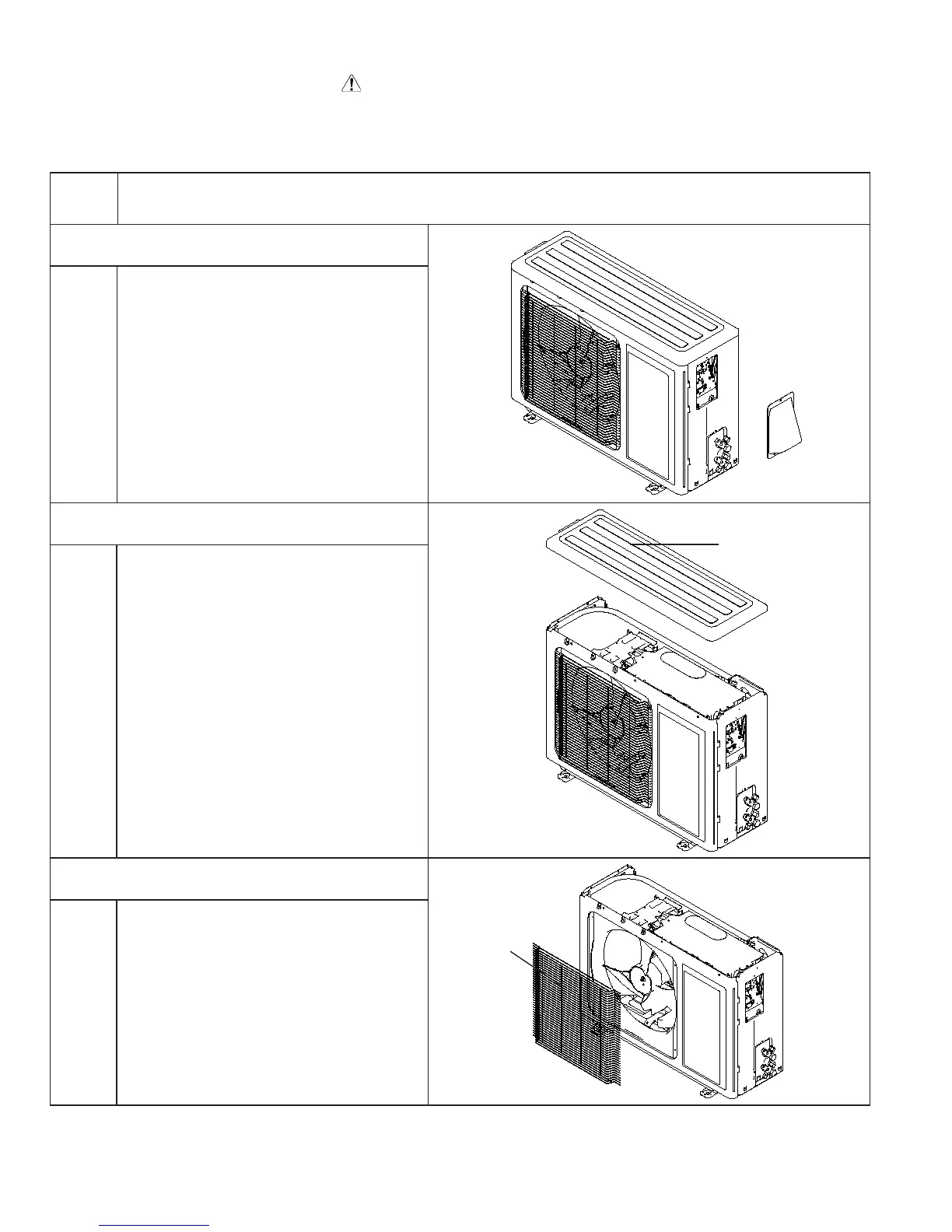

ProcedureSteps
1.Remove the panel
3.Remove the front grille
2.Remove the top cover
Open the front panel. Push the rotor shaft on
both sides of the panel to separate it from the
groove. Remove the panel.
Remove the connection screws connecting
the top cover plate with the front panel and the
right side plate. Next, remove the top
cover.
Remove th e connection screws between
the front grille and the front panel. Then remove
the front grille.
top cover
front grille
Warning: Be sure to wait for a minimum of 20 minutes
after turning off all power supplies and discharge the
refrigerant completely before removal.
