DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT SIZES 30−36

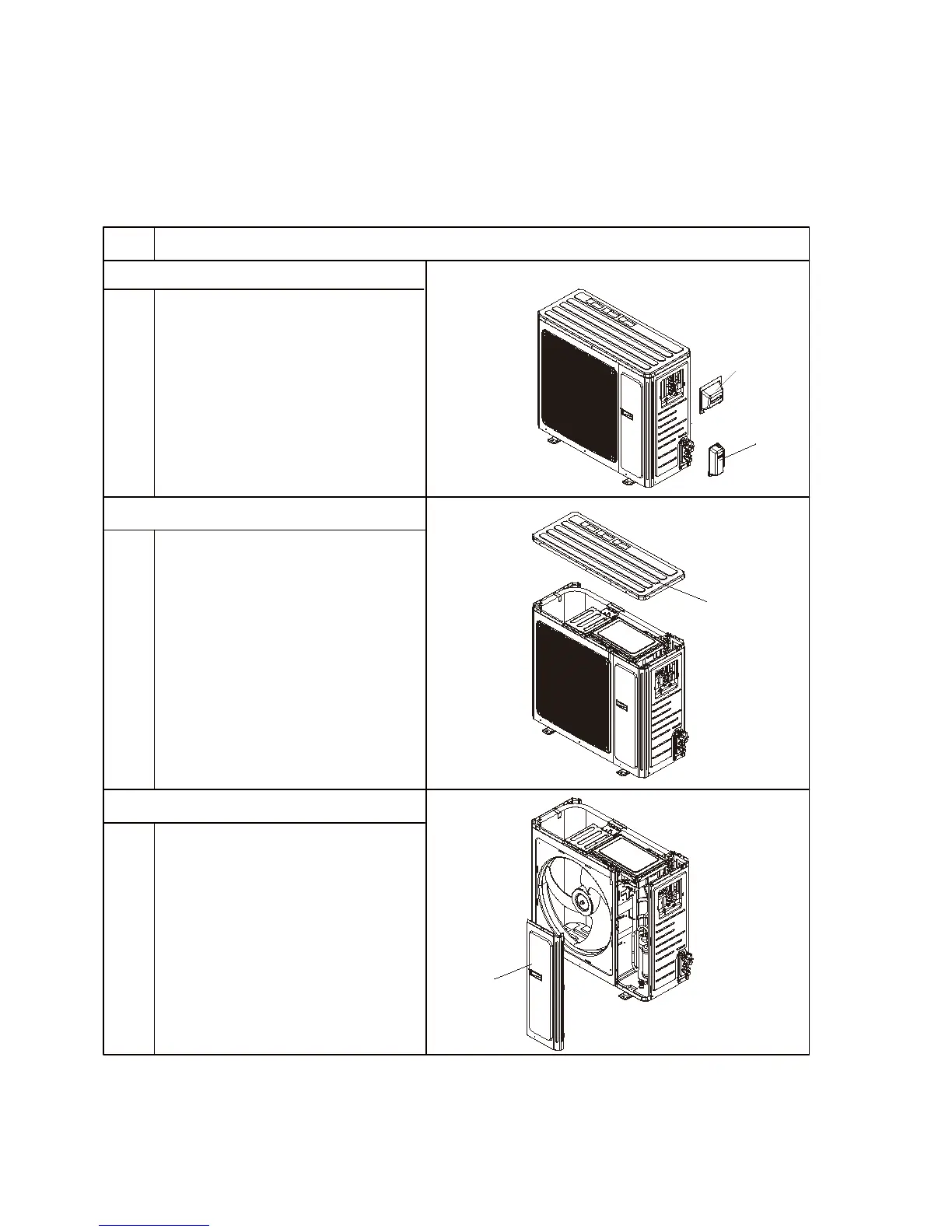

Steps
handle
2.Remove the top panel
top panel
Remove the screws connecting the top
panel with the front panel and left and right
side plate, and then remove the top panel.
3.Remove the front side panel
front side panel
Loosen the screws connecting the front side
panel and chassis. Remove the front side
panel.
Procedure
valve cover
Remove the screw connecting the big handle and
right side plate, and then remove the big handle.
Remove the screw connecting the valve cover and
right side plate, and then remove the valve cover.
1. Remove the big handle,valve cover and the top cover
