KeepRite DLFDAB - Outdoor Unit Wiring Diagram (Size 18, 208;230 V); Outdoor Unit Wiring Diagram (Size 24, 208;230 V)

328 080000 01 11
Specifications subject to change without notice.

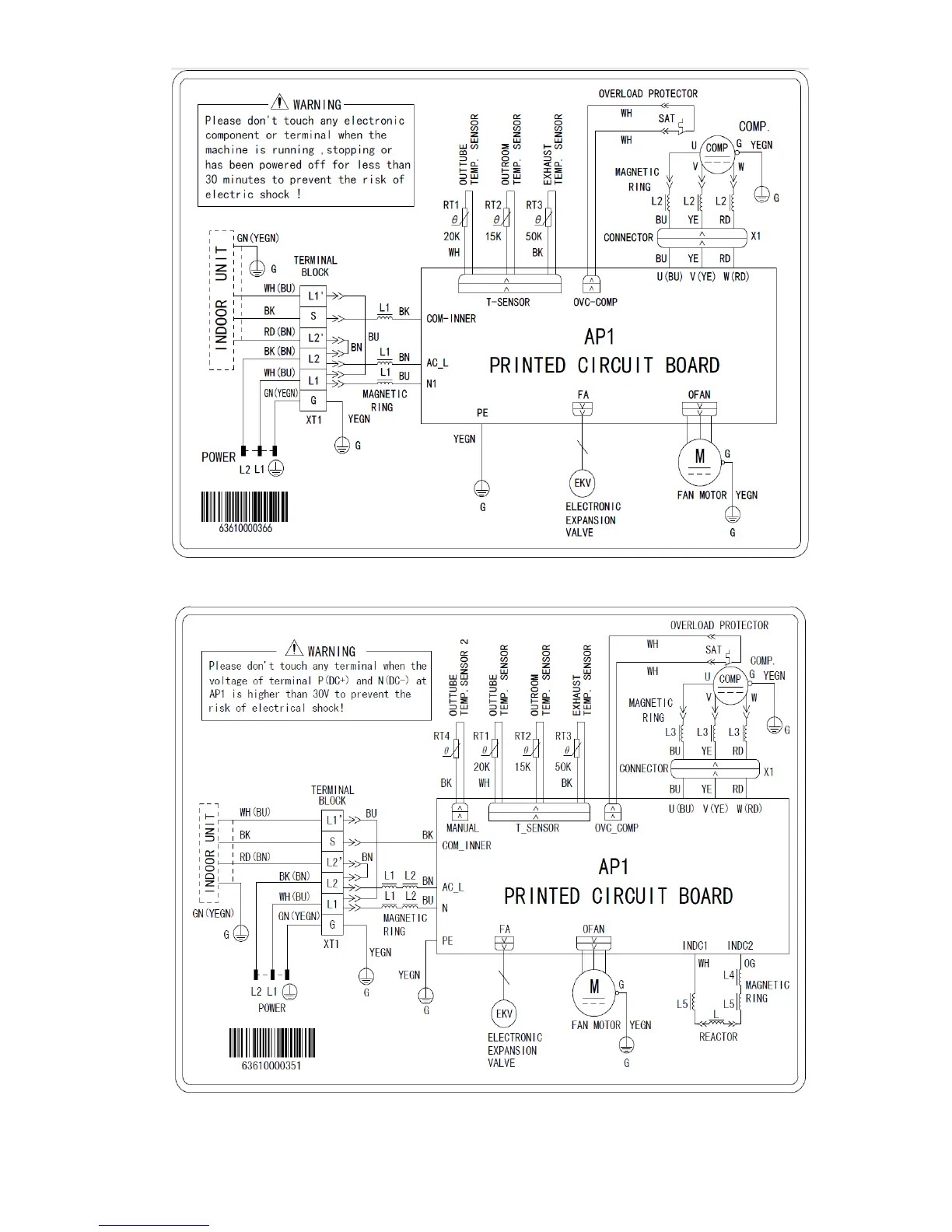

WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR (CONT)
Fig. 14 - Outdoor Unit Size 18 (208/230V)
Fig. 15 - Outdoor Unit Size 24 (208/230V)
