KeepRite DLFDAB - Connection Diagrams; Connection Diagram 9 K & 12 K Units 115 V; Connection Diagram 9 K & 12 K Units 208;230 V; Connection Diagram 18 K - 36 K Units 208;230 V

328 080000 01 7
Specifications subject to change without notice.

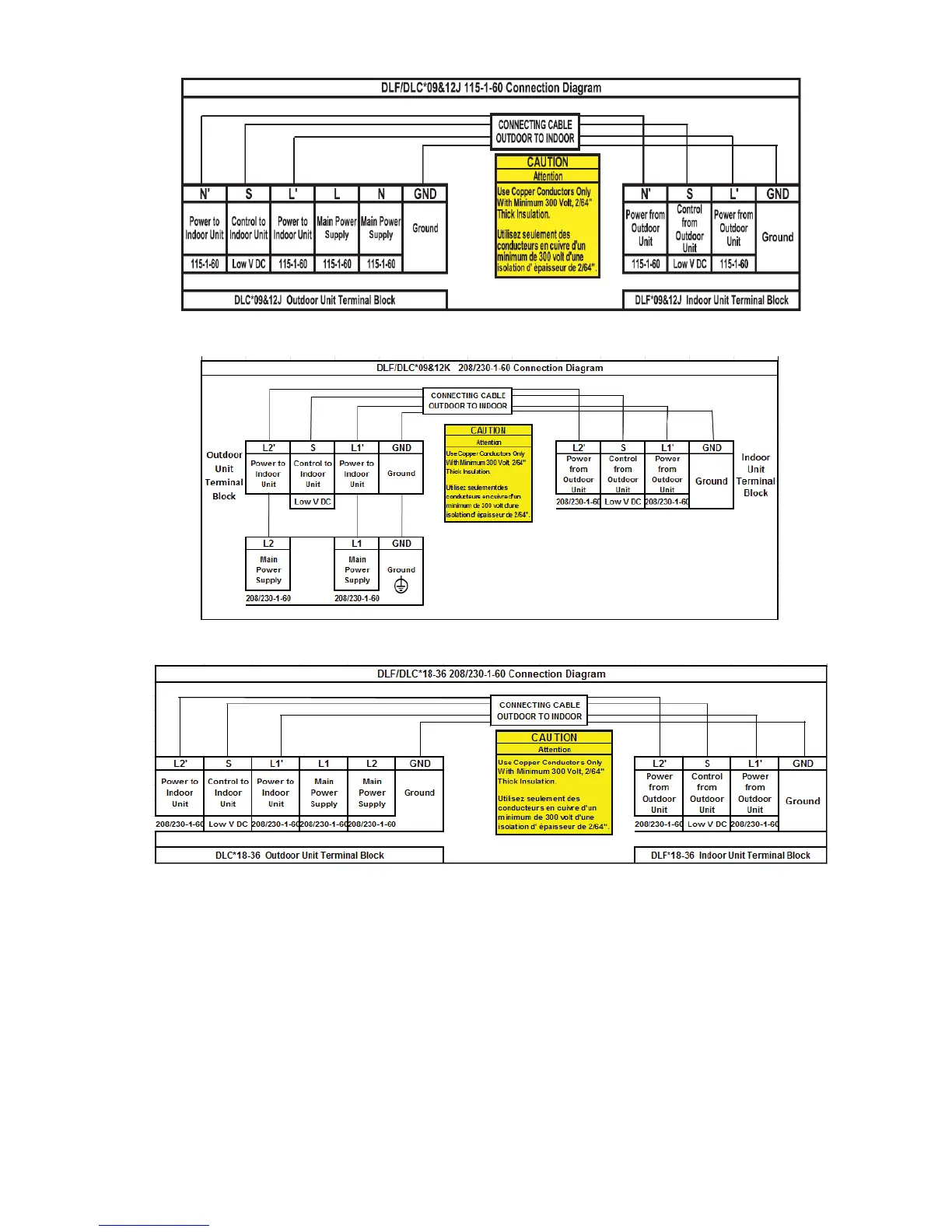

CONNECTION DIAGRAMS
Fig. 6 - Connection Diagram 9K & 12K Units 115V
Fig. 7 - Connection Diagram 9K & 12K Units 208/230V
Fig. 8 - Connection Diagram 18K − 36K Units 208/230V
