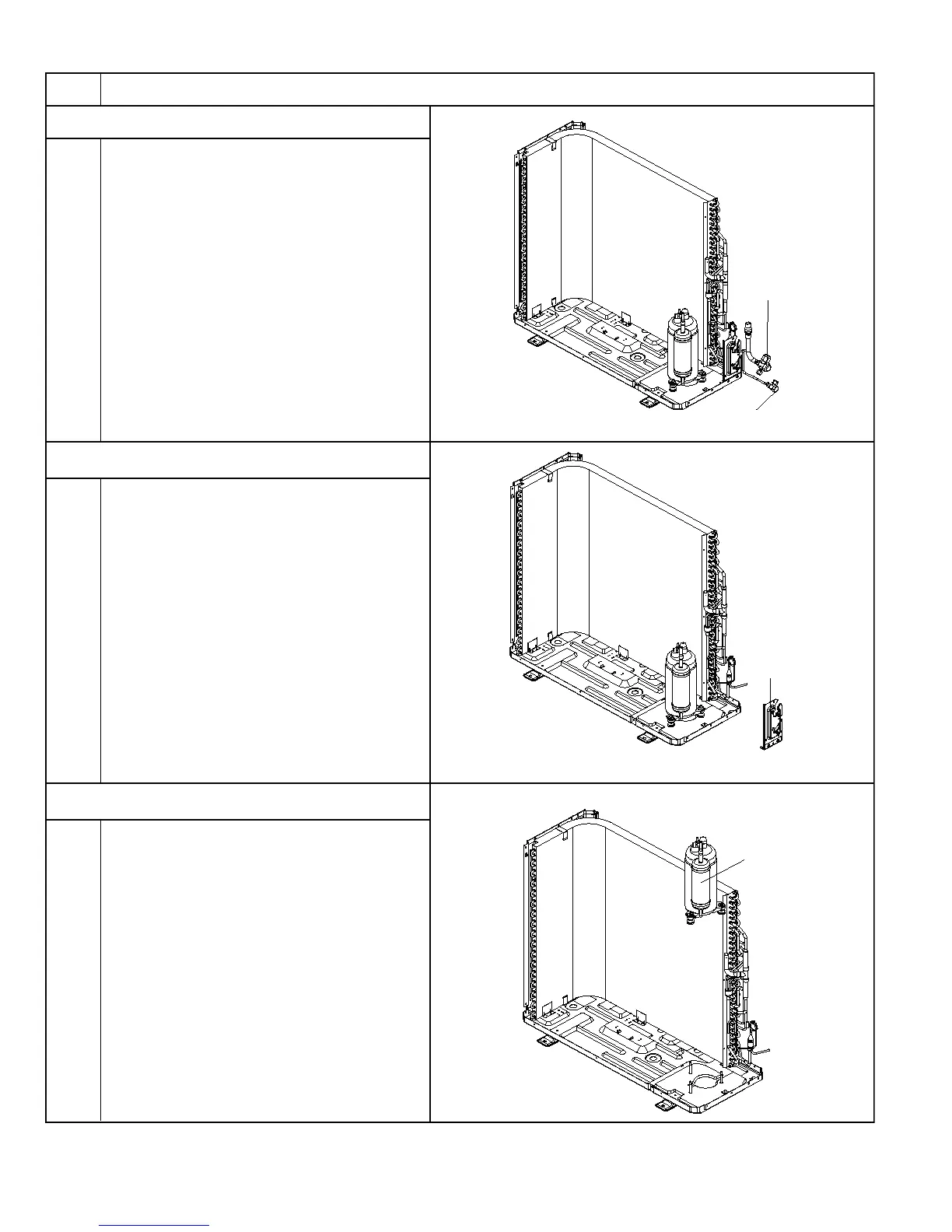

DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT SIZES 30−36 (CONT)
Steps
12.Remove the gas valve and liquid valve
liquid valve
gas valve
Twist off the 2 bolts fixing the valve sub-assy.
Unsolder the soldering joint between gas valve
and air-return pipe and then remove the gas
valve. (
Note: When unsoldering the soldering joint,
wrap the gas valve with wet cloth completely to
avoid damaging the valve. Be sure to release all
refrigerant completely first). Unsolder the
soldering joint between the liquid valve and
liquid valve connection pipe and then remove
the liquid valve.
Twist off the screws connecting valve support and
chassis, and then remove the valve support.
14.Remove the compressor
compressor
13.Remove the valve support
valve support
Twist off the 3 foot nuts on the compressor.
Next, remove the compressor.
Procedure
