KeepRite DLFDAB - Indoor Unit Wiring Diagram (18-24); Indoor Unit Wiring Diagram (30-36)

328 080000 01 9
Specifications subject to change without notice.
WIRING DIAGRAM INDOOR UNIT − DLFCAB/DLFCHB (CONT)

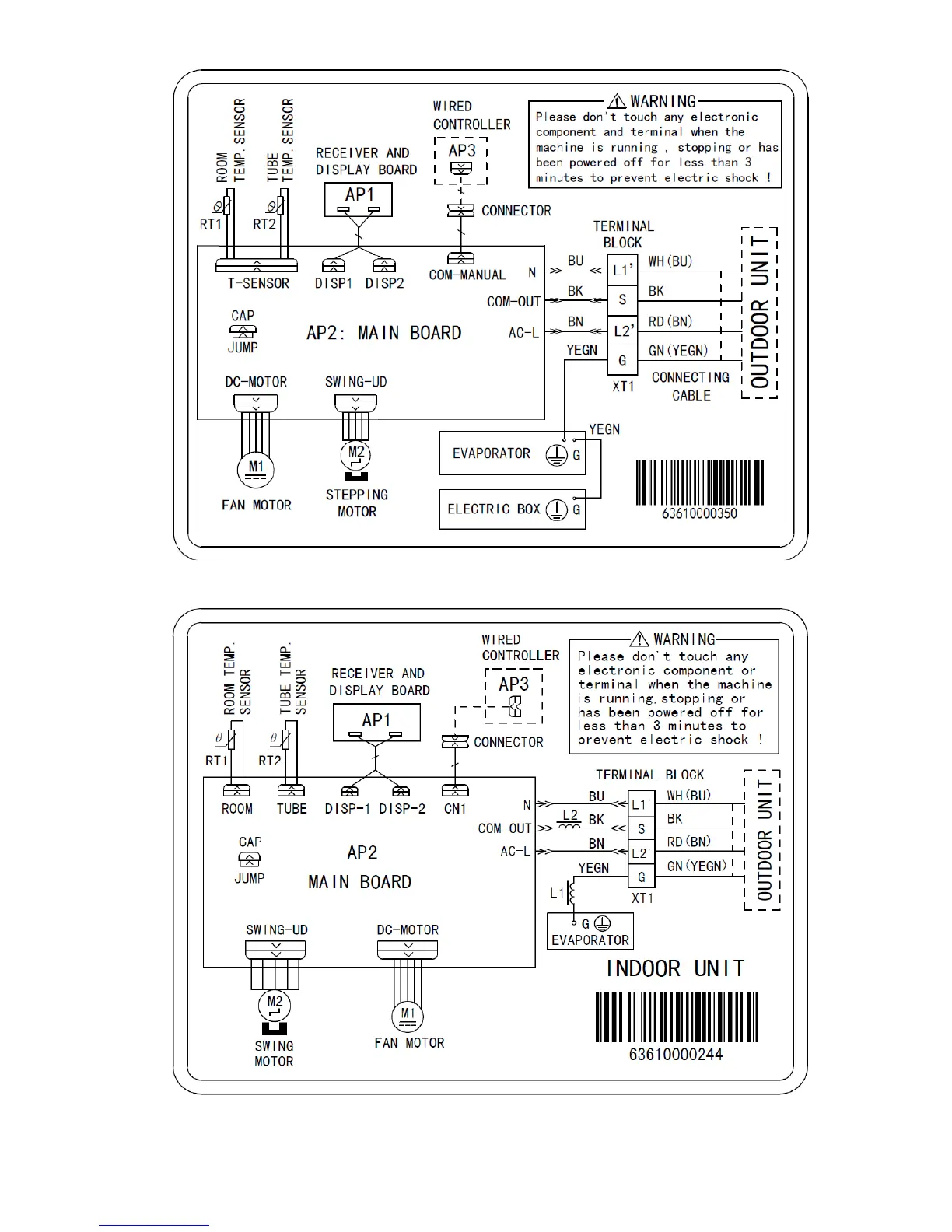

Fig. 10 - Indoor Unit Sizes 18 − 24 (208/230V)
Fig. 11 - Indoor Unit Sizes 30 − 36 (208/230V)
