DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT 9−12 (CONT)
4.Remove the front panel
5.Remove the right side plate
6.Remove the axial flow blade

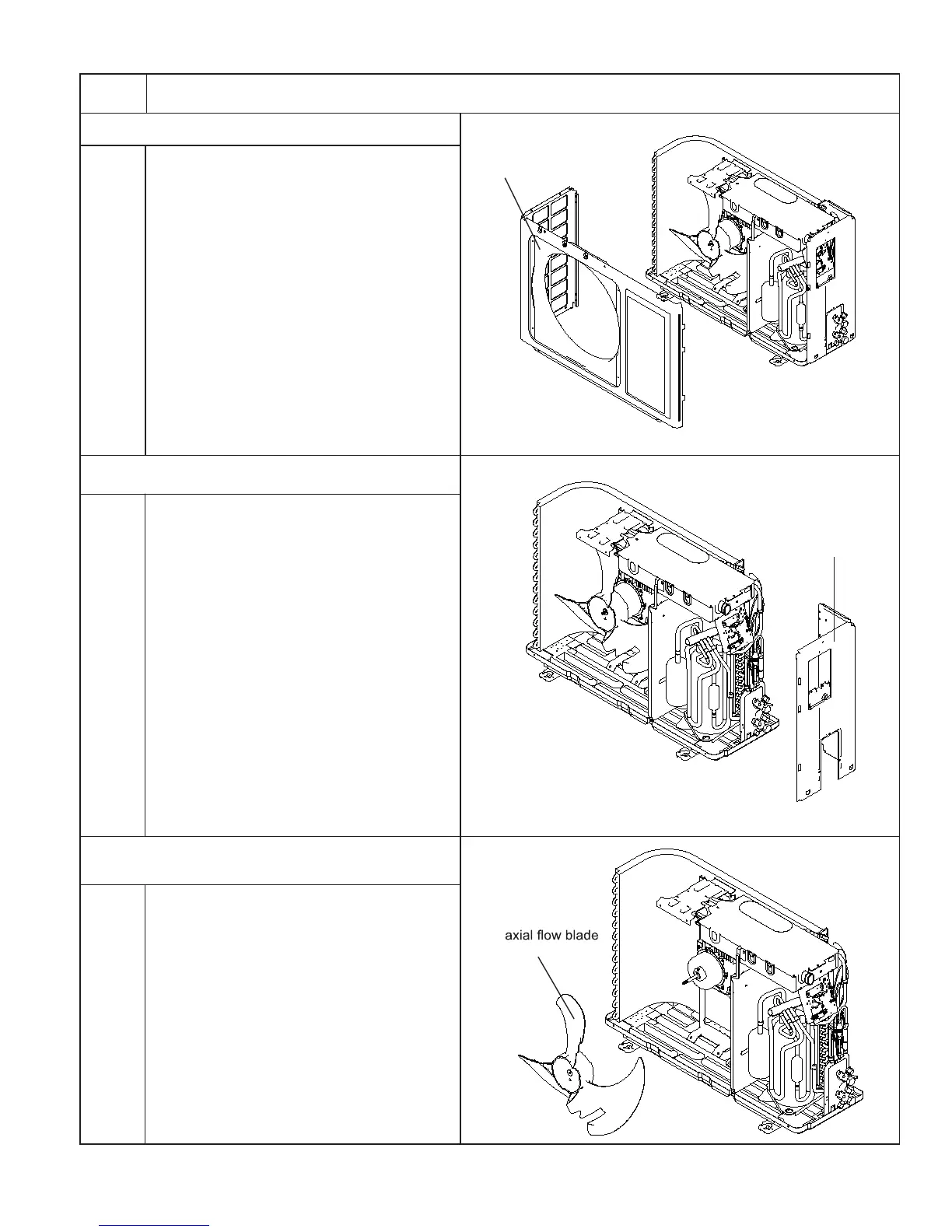

ProcedureSteps
Remove the connection screws connecting the
front panel with the chassis and the motor
support. Next, remove the front panel.
Remove the connection screws connecting the
right side plate with the valve support and
the electric box. Then remove the right side
plate.
front panel
right side plate
Remove the nut securing the blade.
Next, remove the axial flow blade.
