KeepRite DLFDHB - Outdoor Unit Wiring Diagrams; DLCCAR;DLCCHR 09-12 (115 V) Wiring; DLCCAR;DLCCHR 09-12 (208;230 V) Wiring

10 328 080000 01
Specifications subject to change without notice.

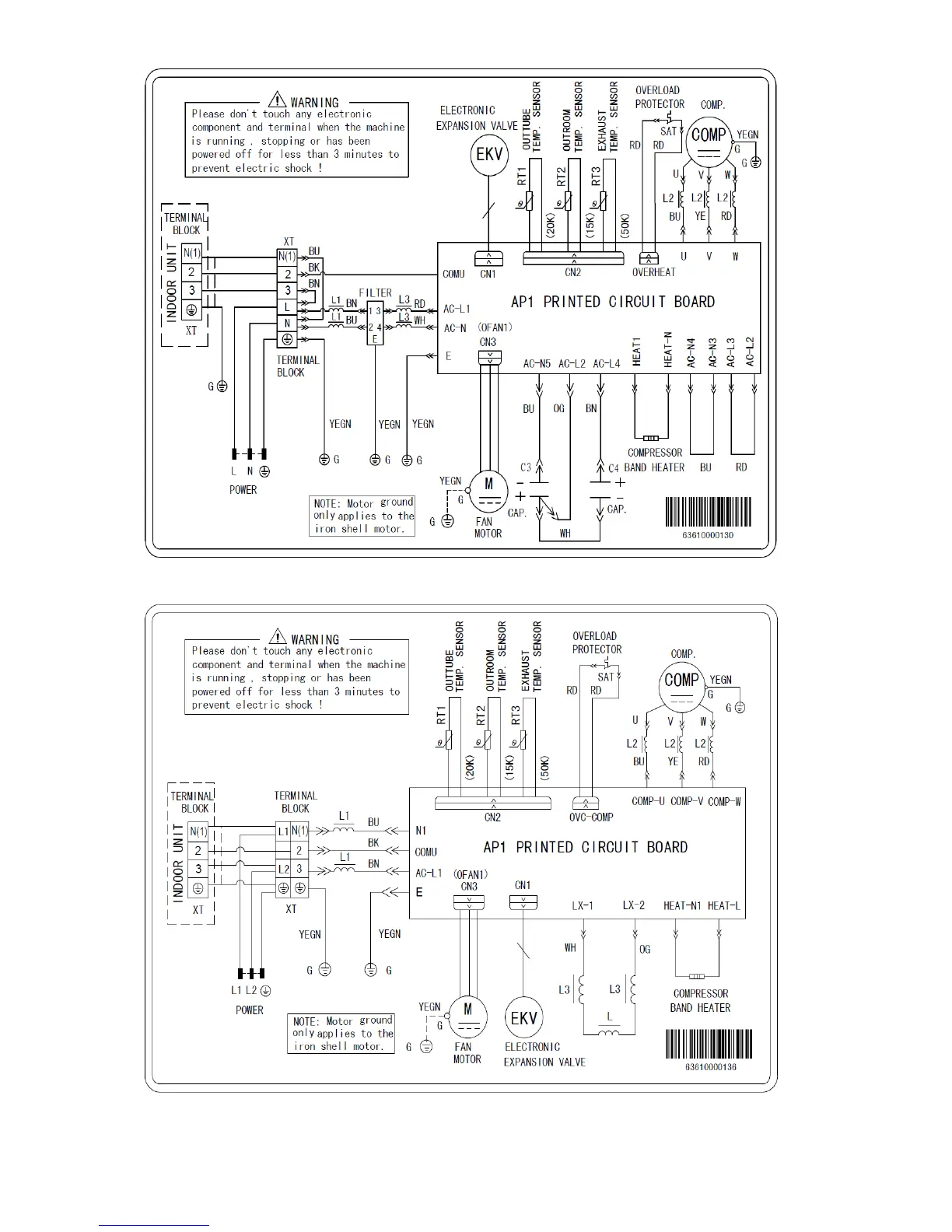

WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR
Fig. 12 - Outdoor Unit Sizes 09 − 12 (115V)
Fig. 13 - Outdoor Unit Sizes 09 − 12 (208/230V)
