KeepRite DLFDHB - Remove the Motor and Motor Support; Remove the Electric Box Assy; Remove the Clapboard Sub-Assy

64 328 080000 01
Specifications subject to change without notice.

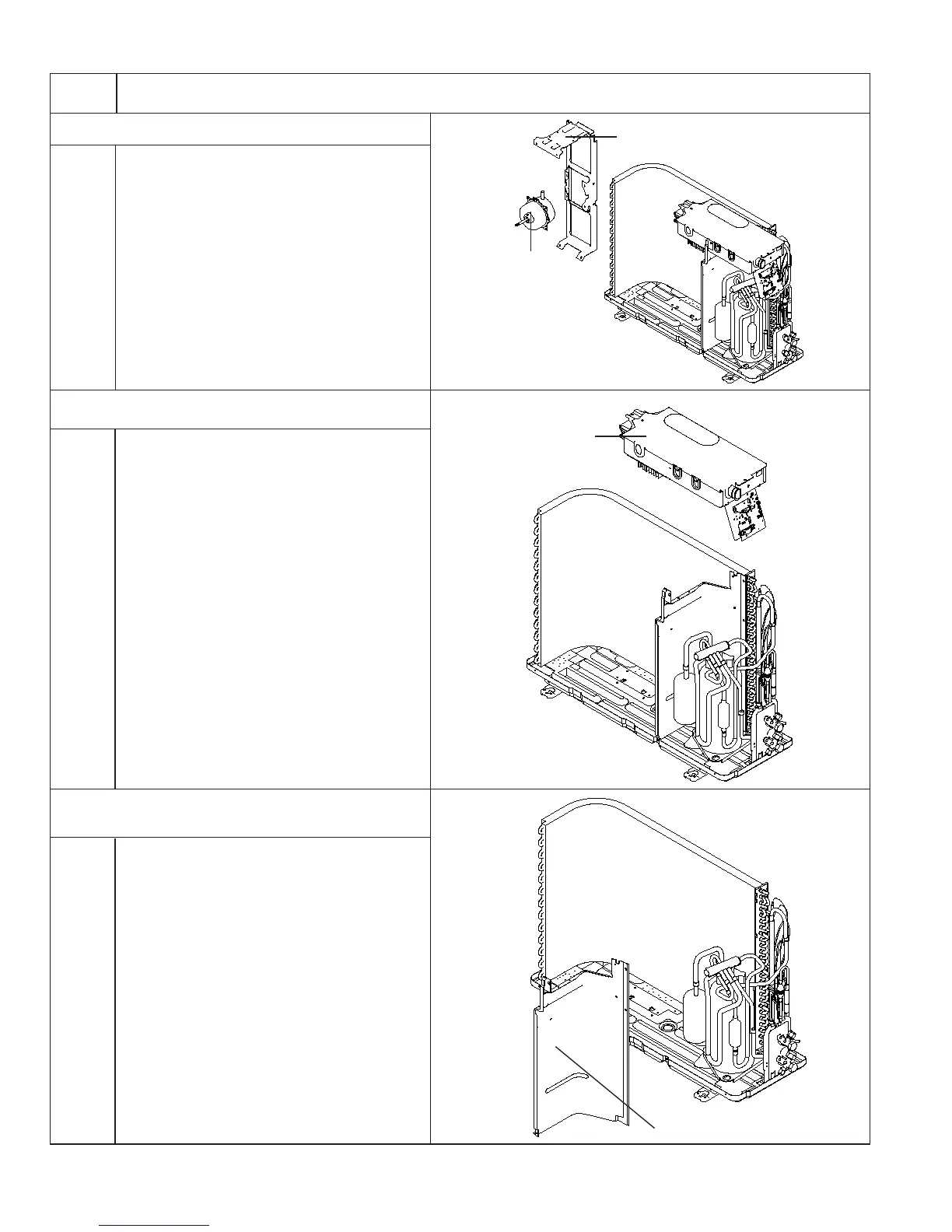

DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT 9−12 (CONT)
7.Remove the motor and motor support
8.Remove the electric box assy
9.Remove the clapboard sub-assy
ProcedureSteps
Remove the 4 tapping screws securing the
motor. Pull out the lead-out wire and remove
the motor. Remove the 2 tapping screws securing
the motor support. Lift the motor support to
remove it.
Remove the 2 screws securing the electric
box cover. Lift to remove the cover. Loosen the
wire and disconnect the terminal. Lift to remove
the electric box assy.
Loosen the clapboard sub-assy. screws.
The clapboard sub-assy has a hook on the
lower side. Lift and pull the clapboard
sub-assy to remove.
motor
motor support
electric box assy
clapboard sub-assy
