KeepRite DLFDHB - Indoor Units DLFDHB Sizes 30 and 36 Top View; Indoor Units; DLFDHB Sizes 30 and 36 Bottom View

328 080000 01 27
Specifications subject to change without notice.
PCB PRINTED DIAGRAMS (CONT)

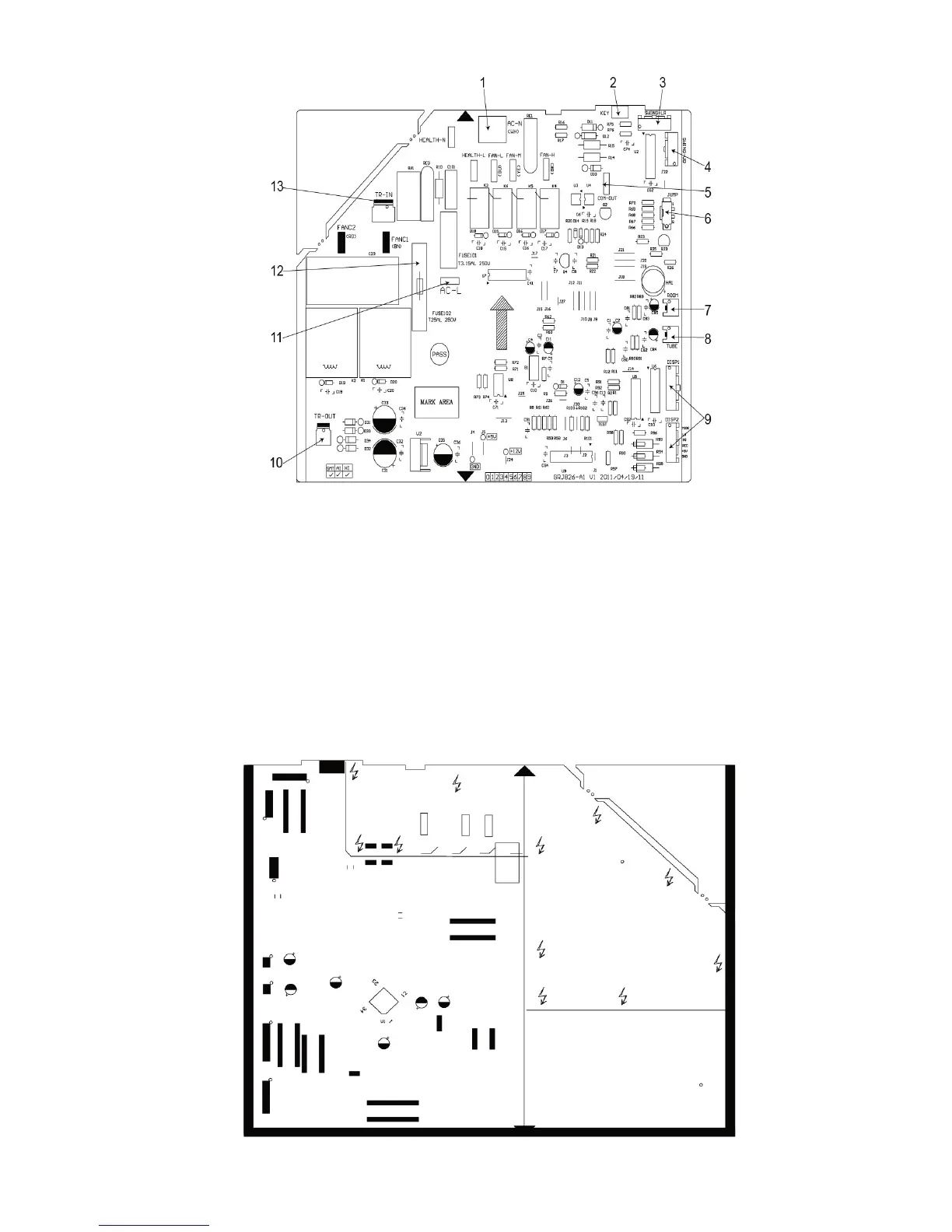

Fig. 44 - Indoor Units DLFDHB Sizes 30 and 36 Top View
Table 19—Indoor Units DLFDAB / DLFDHB
No. NAME
1 Terminal of neutral wire
2 Auto button
3 Horizontal swing terminal
4 Vertical swing terminal
5 Communication terminal
6 Jumper cap
7 Ambient temperature sensor terminal
8 Pipe temperature sensor terminal
9 Display panel 1 and 2 terminals
10 Transformer Output Terminal
11 Live Wire Terminal
12 Protective tube
13 Transformer Input terminal
Fig. 45 - Indoor Units / DLFDHB Sizes 30 and 36 Bottom View
