KeepRite DLFDHB - Outdoor Units DLCCAR; DLCCHR Size 24 Top View

24 328 080000 01
Specifications subject to change without notice.
PCB PRINTED DIAGRAMS (CONT)
1
234 5 6
7
8
9
11
10
12

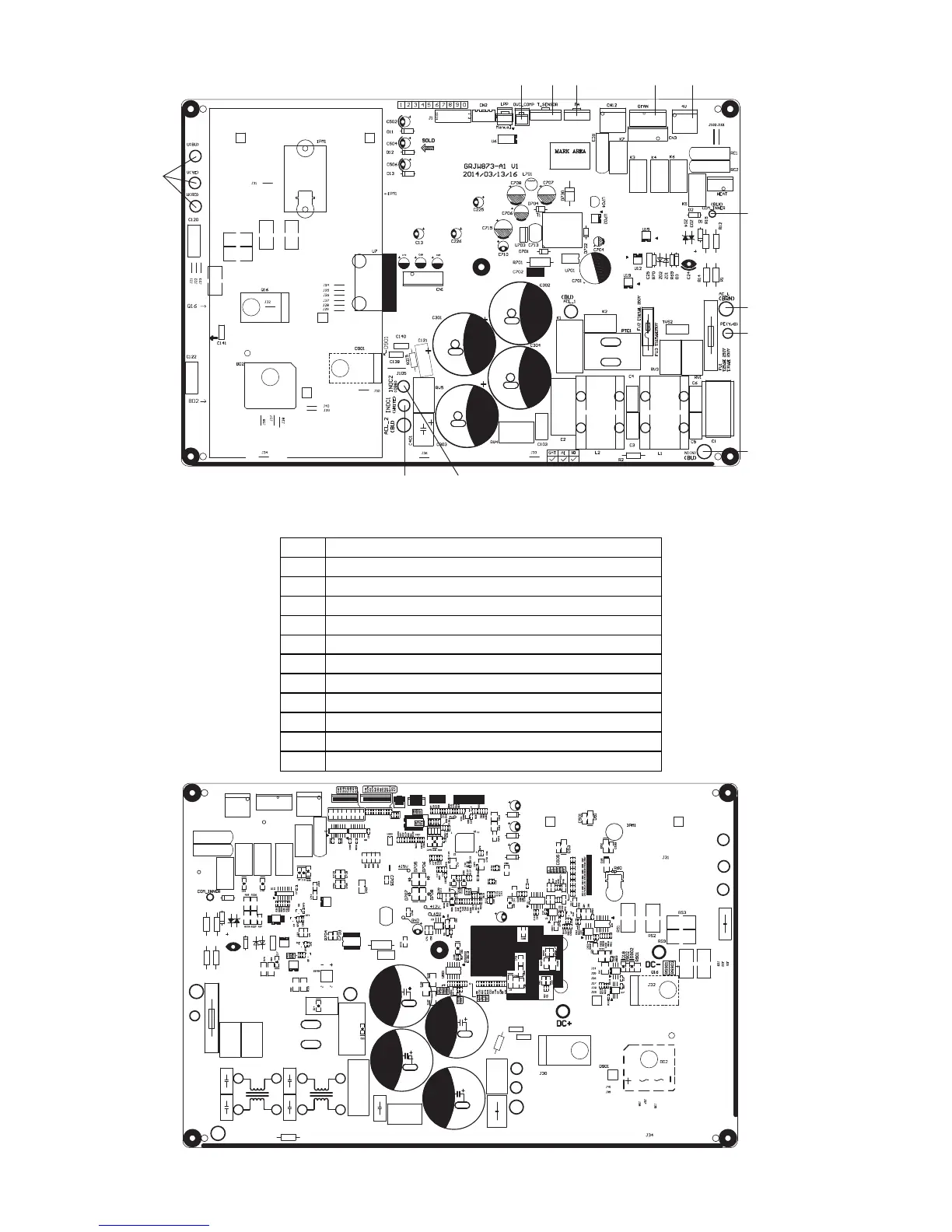

Fig. 38 - Outdoor Units DLCCAR / DLCCHR Size 24 Top View
Table 17— Outdoor Units
1 Compressor interface
2 Compressor overload protector
3 Temperature sensor
4 Electric expansion valve
5 Outdoor fan
6 4-way valve
7 Indoor unit communication interface
8 Live wire
9 Earthing wire
10 Neutral wire
11 Reactor interface 2
12 Reactor interface 1
Fig. 39 - Outdoor Units DLCCAR / DLCCHR Size 18 Bottom View
