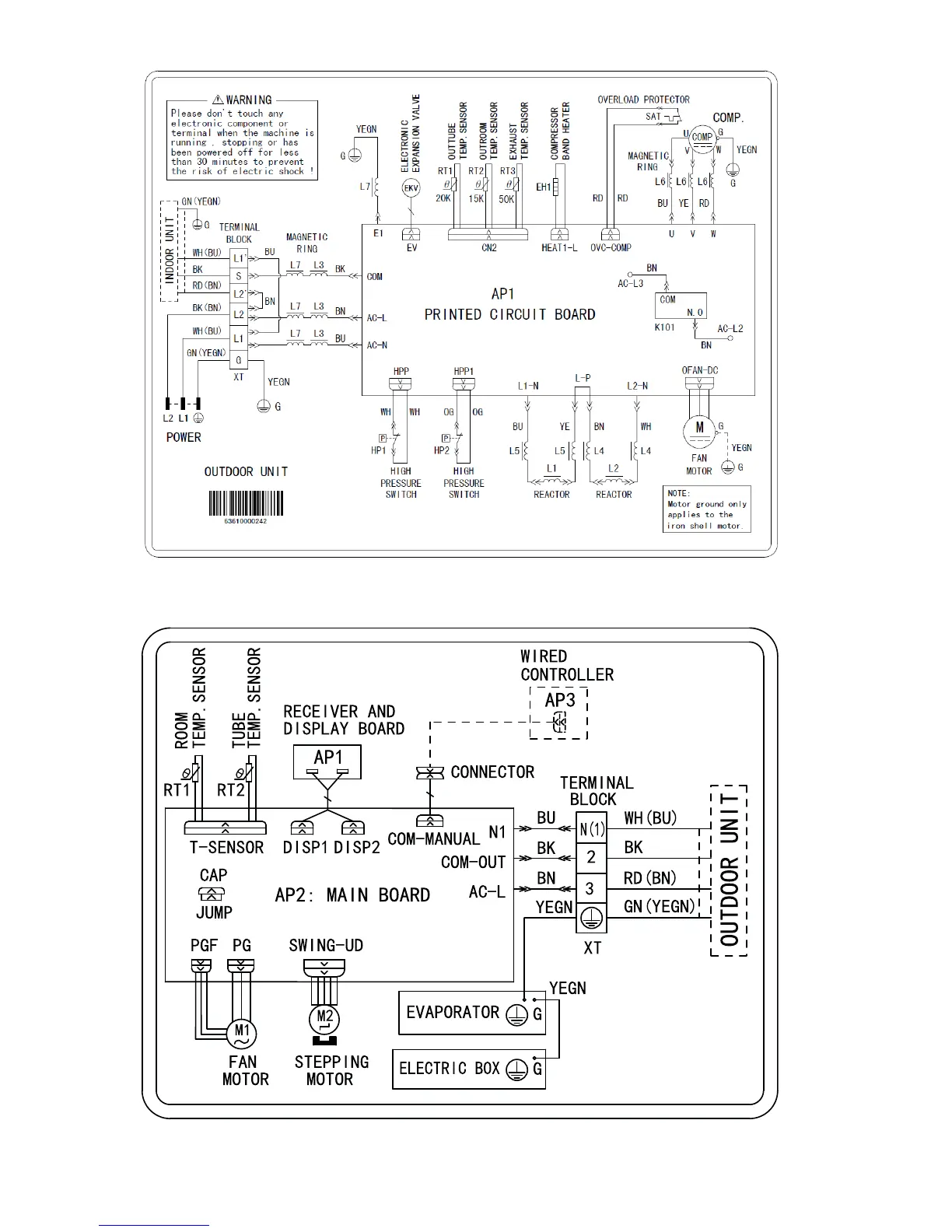

WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR (CONT)
Fig. 16 - Outdoor Unit Sizes 30 − 36 (208/230V)
WIRING DIAGRAM − INDOOR UNIT − DLFDAB / DLFDHB
Fig. 17 - Indoor Unit Sizes 09 − 12 (115V)
