KeepRite DLFDHB - Continued Disassembly Steps; Continued Disassembly Procedure Visuals

328 080000 01 73
Specifications subject to change without notice.

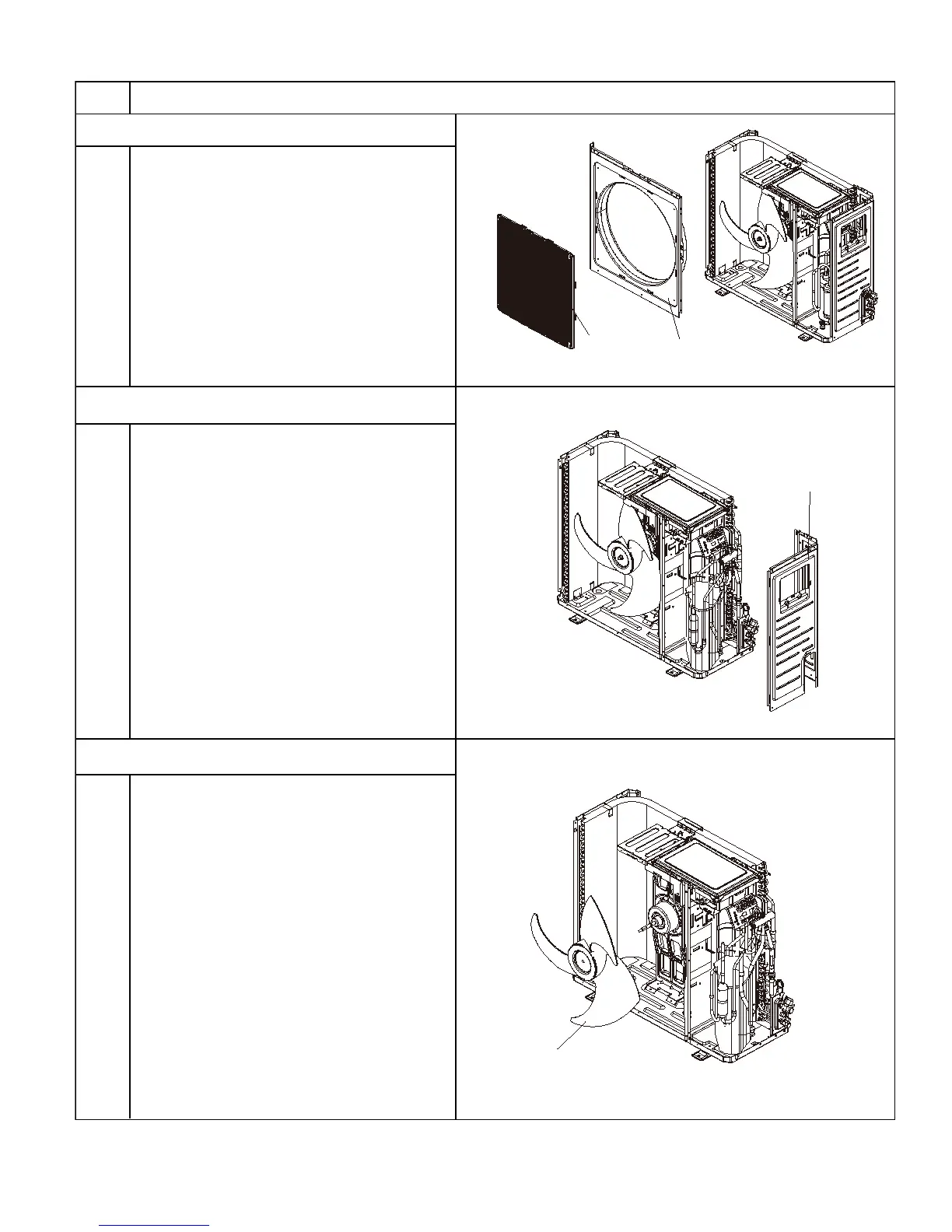

DISASSEMBLY INSTRUCTIONS OUTDOOR UNIT SIZES 30−36 (CONT)
Steps
4.Remove the grille and panel
grille
panel
Twist off the screws connecting the panel, chassis
and motor support with a screwdriver.
Next, remove the panel.
Twist off the screws connecting the grille and
panel. Next, remove the grille.
5.Remove the right side plate
right side plate
Twist off the screws connecting the right side
plate and chassis, valve support and condenser.
Next, remove the right side plate.
6.Remove the axial flow blade
axial flow blade
Twist off the nuts on the blade with wrench.
Next, remove the axial flow blade.
Procedure
