PCB PRINTED DIAGRAMS (CONT)
2
1
3
4
5
6
8
7
9
10
11
12
13

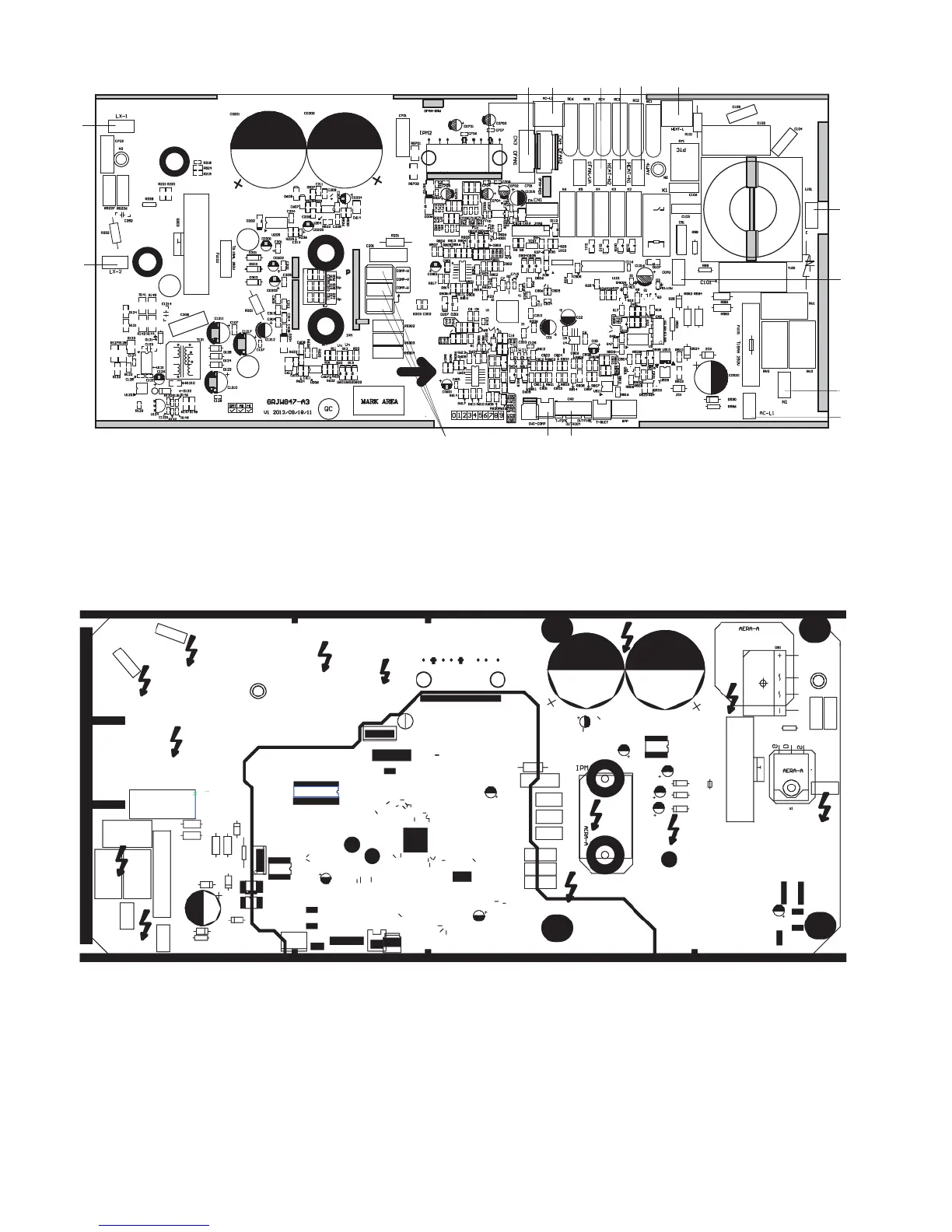

Fig. 34 - Outdoor Units DLCCAR / DLCCHR 208/230V sizes 9 and 12 Top View
Table 15—Outdoor Units DLCCAR / DLCCHR
1 Live wire input 4 Ground wire input 7
Electric heater
compressor neutral wire
10 Fan interface 13
Compressor phases
U,V,W
2 Neutral wire input 5 Electrical Heater wire 8
Electric heater chassis
neutral wire
11 Electric reactor interface 1 14 Overload input
3 Communication interface 6 4-way valve neutral wire 9 4-way valve live wire 12 Electric reactor interface 2 15 Temp. sensor
Fig. 35 - Outdoor Units DLCCAR / DLCCHR 208/230V Sizes 9 and 12 Bottom View
