PCB PRINTED DIAGRAMS (CONT)

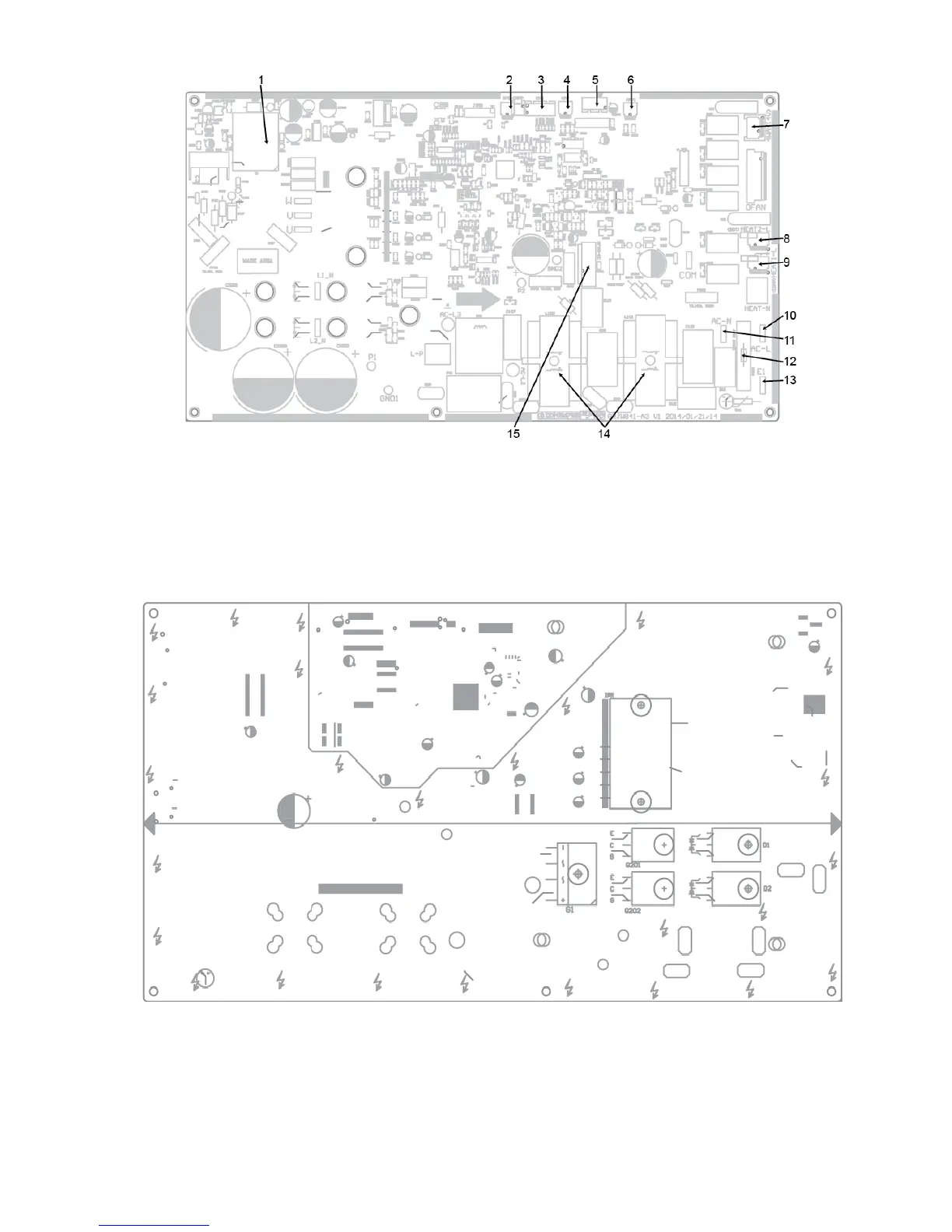

Fig. 40 - Outdoor Units DLCCAR / DLCCHR Sizes 30 and 36 Top View
Table 18—Outdoor Units DLCCAR / DLCCHR
No. NAME No. NAME No. NAME
1 High-frequency transformer T1 6 High pressure protection terminal HPP1 11 Terminal of neutral wire
2 Overload protection terminal of compressor OVC-COMP 7 Terminal of 4-way valve 12 Protective tube FU101
3 Terminal of temp sensor CN2 8 Electric heater band of chassis HEAT2-L 13 Terminal of ground wire
4 High pressure protection terminal HPP 9 Electric heater band of compressor HEAT1-L 14 Choke L 101 and L102
5 Electronic expansion valve terminal EV 10 Terminal of live wire 15
Terminal of outdoor fan OFAN-DC
Fig. 41 - Outdoor Units DLCCAR / DLCCHR Sizes 30 and 36 Bottom View
