WIRING DIAGRAM − OUTDOOR UNIT − DLCCAR / DLCCHR (CONT)

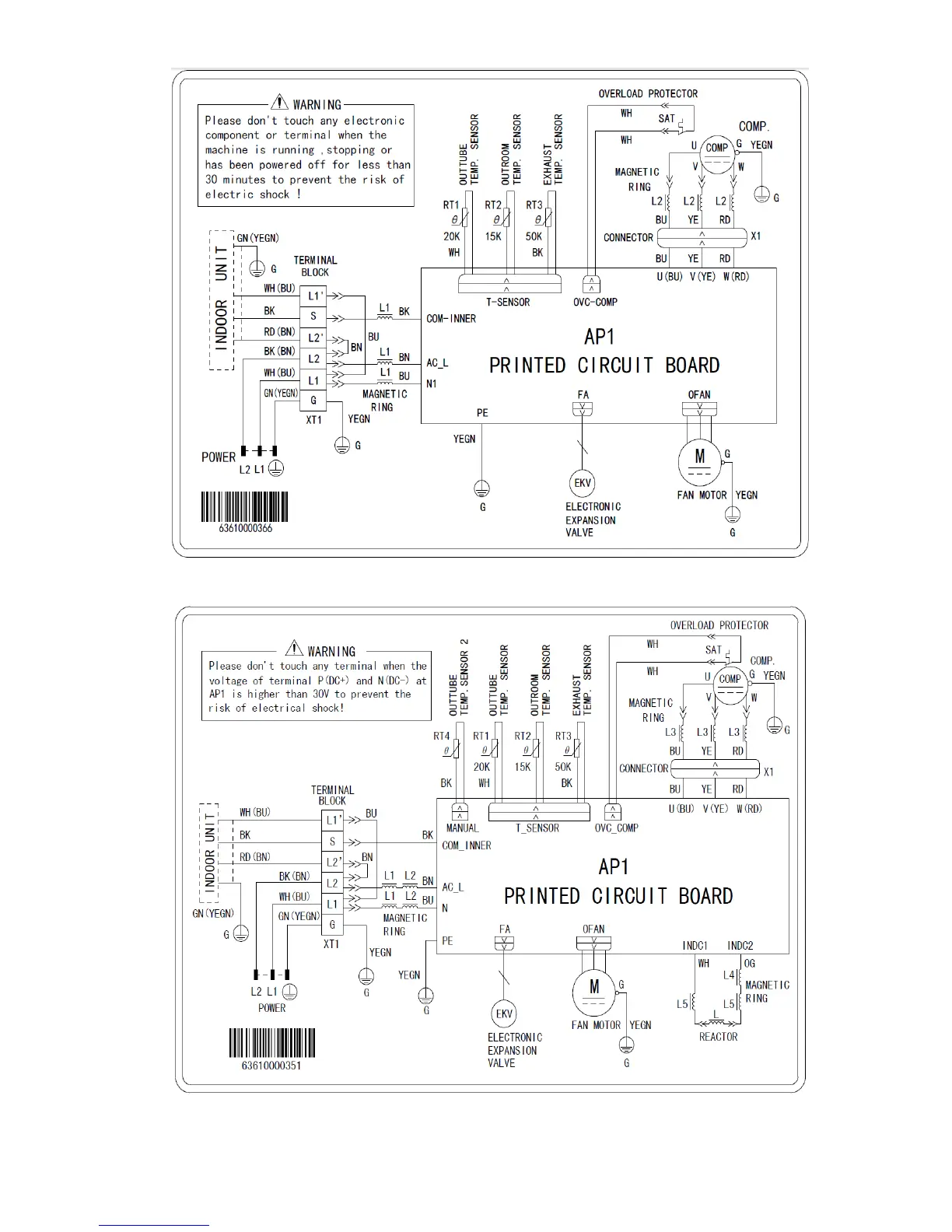

Fig. 14 - Outdoor Unit Size 18 (208/230V)
Fig. 15 - Outdoor Unit Size 24 (208/230V)
