Section 2:Quick reference Model 2231A Triple-channel DC Power Supply Reference Manual
2-2 077100401/September 2014
Rear panel overview

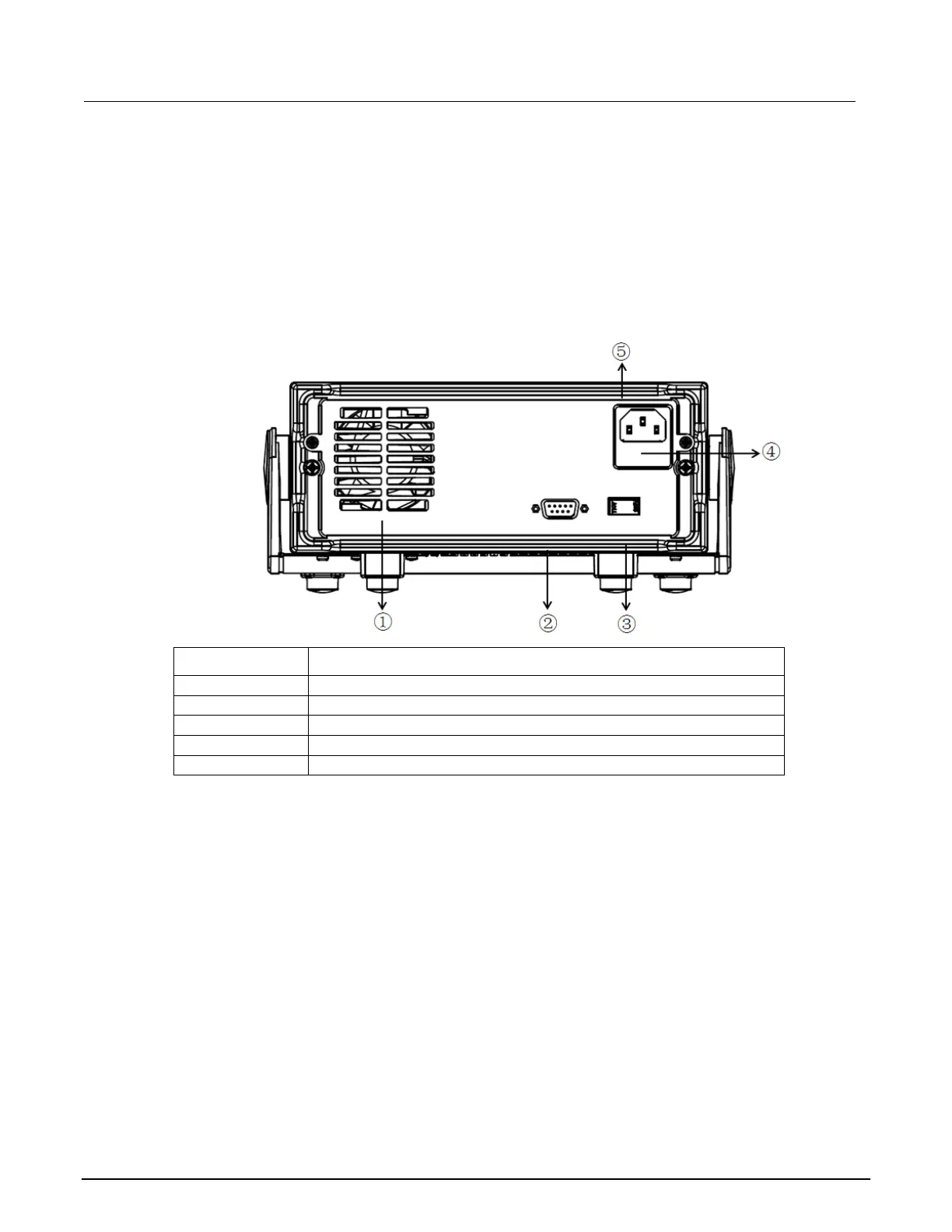

The rear panel of the Model 2231A-30-3 is shown below; descriptions follow the figure.
Figure 2: Model 2231A-30-3 rear panel
Item Description
1 Ventilation holes
2 TTL interface connector for remote control
3 110 V/220 V AC power selection switch
4 Fuse compartment
5 AC power inlet
Installing the system
This section contains information on how to install your Model 2231A-30-3 power supply.
Unpack the instrument and check that you received all the items listed as standard
accessories.
Check that you also received any other accessories that you ordered with your instrument.
Dimensions
The dimensions of the Model 2231A-30-3 power supply: 214.5 mm wide × 88.2 mm high ×354.6
mm deep.
