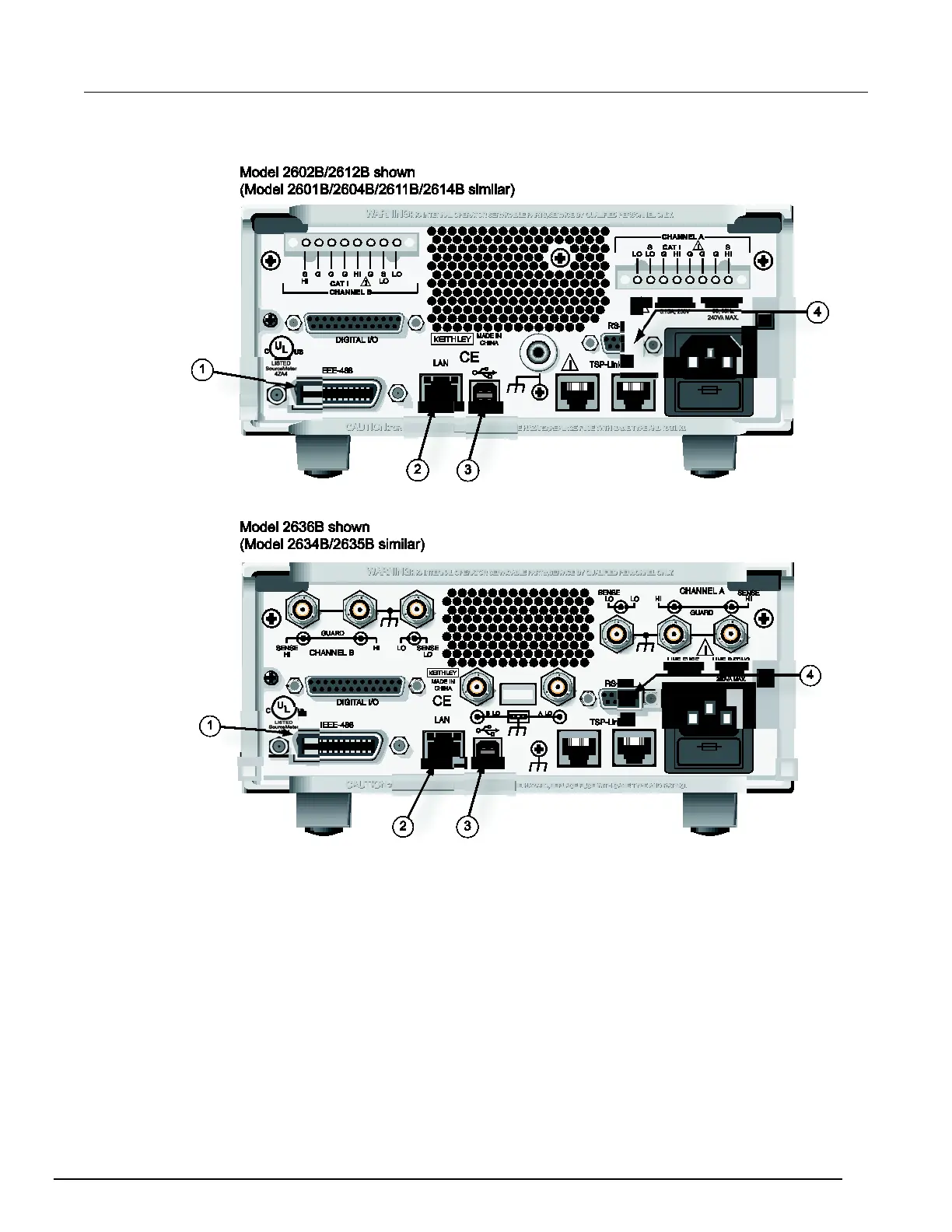

Figure 42: Series 2600B IEEE-488, LAN, USB, and RS-232 connections
1 IEEE-488 connection
2 LAN connection
3 USB connection
4 RS-232 connection
Output queue
Response messages, such as those generated from print commands, are placed in the output queue.
All remote command interfaces share the same output queue.
The output queue sets the message available (MAV) bit in the status model.
The data in the output queue is cleared by the *CLS command.
