2: General operation Series 2600B System SourceMeter® Instrument
2-12 2600BS-901-01 Rev. B / May 2013

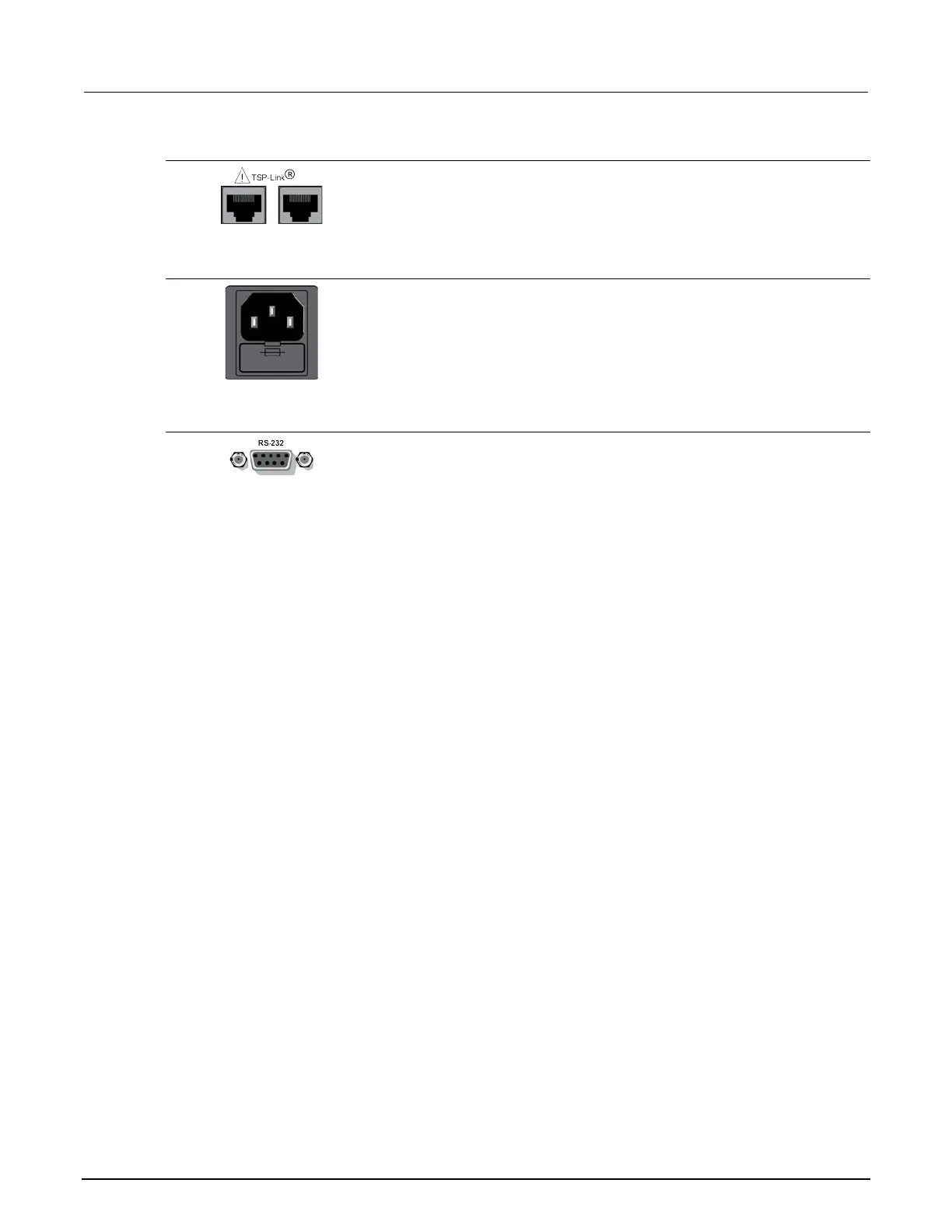

8. TSP-Link
Expansion interface that allows a Series 2600B and other TSP-enabled
instruments to trigger and communicate with each other. Use a category 5e or
higher LAN crossover cable (Keithley Instruments part number CA-180-3A).
The TSP-Link is not available on the Models 2604B, 2614B, and 2634B.
9. Power module
Contains the AC line receptacle and power line fuse. The instrument can operate
on line voltages of 100 V to 240 V AC at line frequencies of 50 Hz or 60 Hz.
10. RS-232
Female DB-9 connector. For RS-232 operation, use a straight-through (not null
modem) DB-9 shielded cable (Keithley Instruments Model 7009-5) for
connection to the computer.
Cooling vents
The Series 2600B has side and top intake and rear exhaust vents. One side must be unobstructed to
dissipate heat.
Excessive heat could damage the Series 2600B and degrade its performance. Only operate the
Series 2600B in an environment where the ambient temperature does not exceed 50 °C (122 °F).
Do not place a container of liquid (water or coffee, for instance) on the top cover. If it spills, the liquid
may enter the case through the vents and cause severe damage.
