Keithley DMM7510 Calibration Manual

Section
2: Performance verification Model DMM7510 7½ Digit Graphical Sampling Multimeter
Calibration Manual
2-62 DMM7510-905-01 Rev. A / April 2015
Verifying zeros using a 4-wire short
Four-wire short verifications are not included in the Customer Calibration Data Report.
Check the zeros of various test points with 4-wire connections to the Model DMM7510 front or rear
terminals. Verify that the displayed readings fall within specified limits.
Verify resistance zeros using a 4-wire short
To verify resistance zeros:
1. Select the 4W Res function.
2. Set the Model DMM7510 to the 1Ω range.
3. Press the MENU key.
4. Select Settings.
5. Set the Offset Compensation to On.
6. Connect the Model 8610 or 8620 4-wire short to the front panel, as shown in the following figure.
7. Allow to settle for 5 minutes. Do not use relative offset.

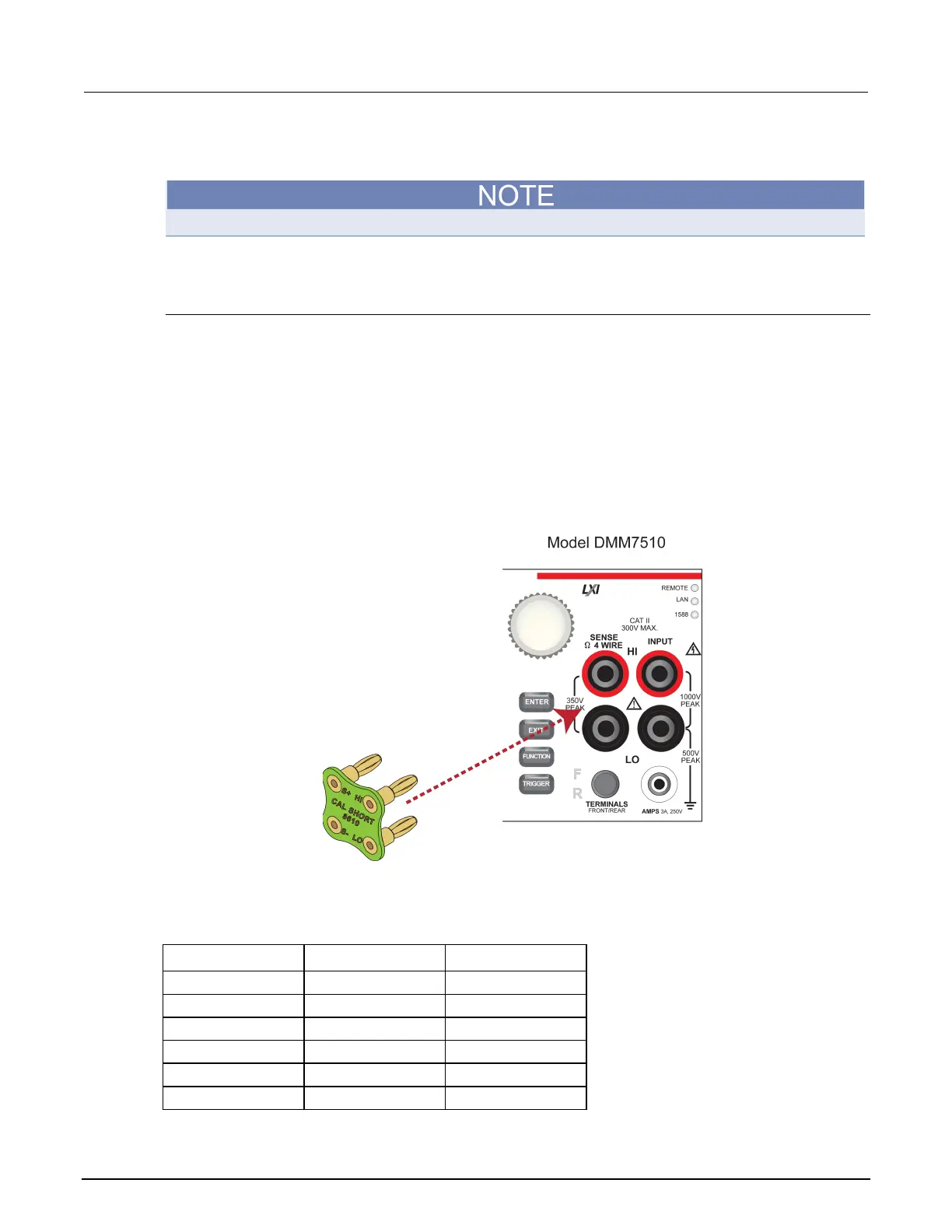

Figure 13: Front panel 4-wire shorting plug orientation
8. Verify the 1Ω range is within specification (see the 4-wire short applied verification data table).
9. Repeat verification for the 1 Ω to 100 kΩ range ranges.
Verify 4-wire resistance zeros
Range Lower limit Upper limit
1 -5.00E-05 5.00E-05
10
-5.00E-05
5.00E-05
100
-4.00E-04
4.00E-04
1 K
-3.00E-03
3.00E-03
10 k
-3.00E-02
3.00E-02
100 k -3.00E-01 3.00E-01

Keithley DMM7510 Specifications

General

Resolution	7.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
Resistance Range	10 Ω to 1 GΩ
Sampling Rate	1 MS/s
Memory	27.5 million readings
Display	5 inch capacitive touchscreen
AC Voltage Accuracy	±0.06% of reading
AC Current Range	10 A
Connectivity	USB, LAN, GPIB
