12-2 Limit Testing 2400 Series SourceMeter
®
User’s Manual
Types of limits
As shown in Figure 12-1, there are 11 limit tests that can be performed on a DUT. These
limits include:
• Limit 1: compliance test
• Limit 2: course limits
• Limits 3, 5-12: fine limits
NOTE Limit 4 is reserved for the contact check option. See Appendix F for details.
A test is only performed if it is enabled. Thus, you can perform one, two, or all 11 tests.
The tests are always performed in the order shown in the drawing.

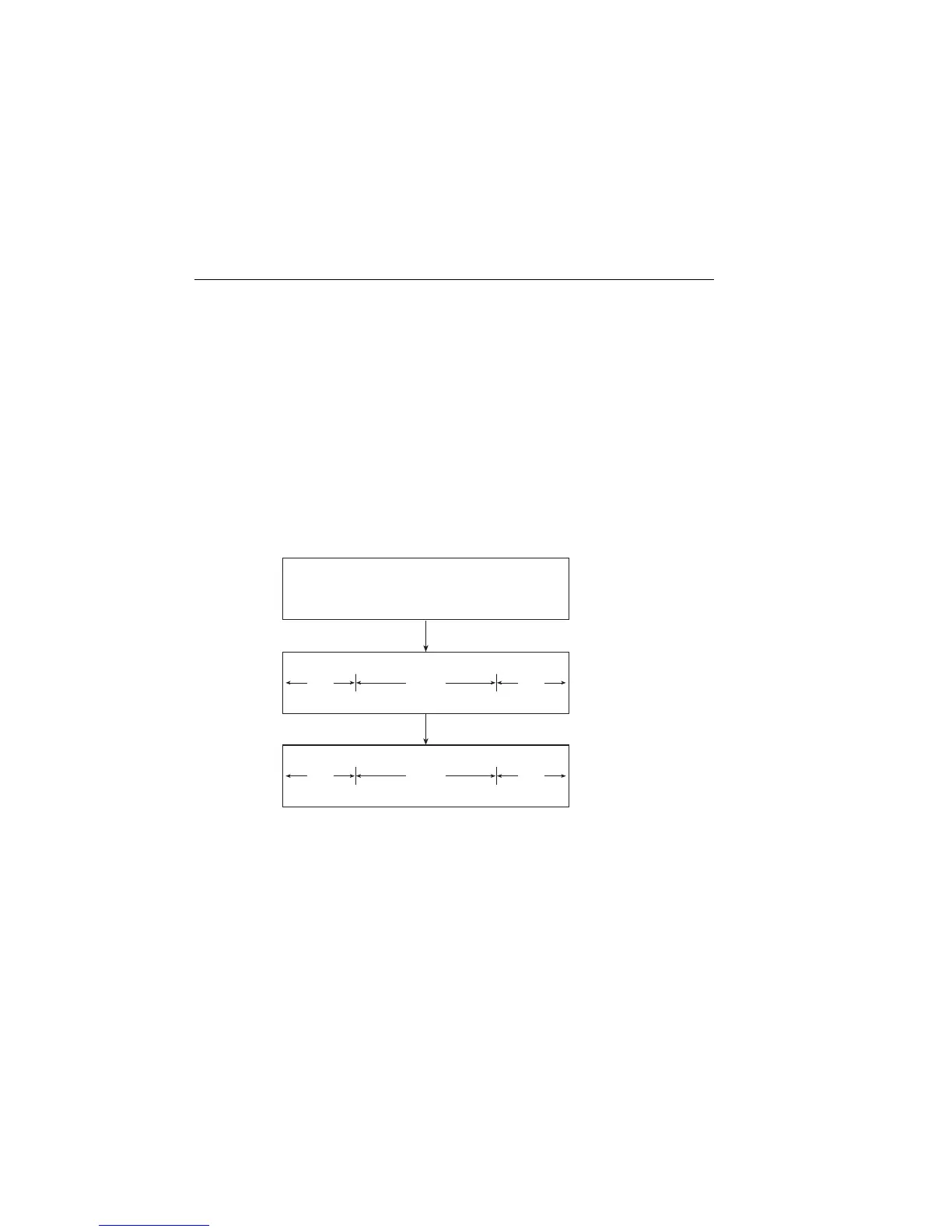

Figure 12-1
Limit tests
Pass
Limit
LO
Fail Fail
Limit
HI
Pass or Fail on Compliance
Pass
Limit
LO
Fail
Fail
Limit
HI
Limit 1 Test
(Compliance)
Limit 2 Test
(Coarse Limits)
Limit 3, 5-12 Tests
(Fine Limits)
