Creating and modifying a script

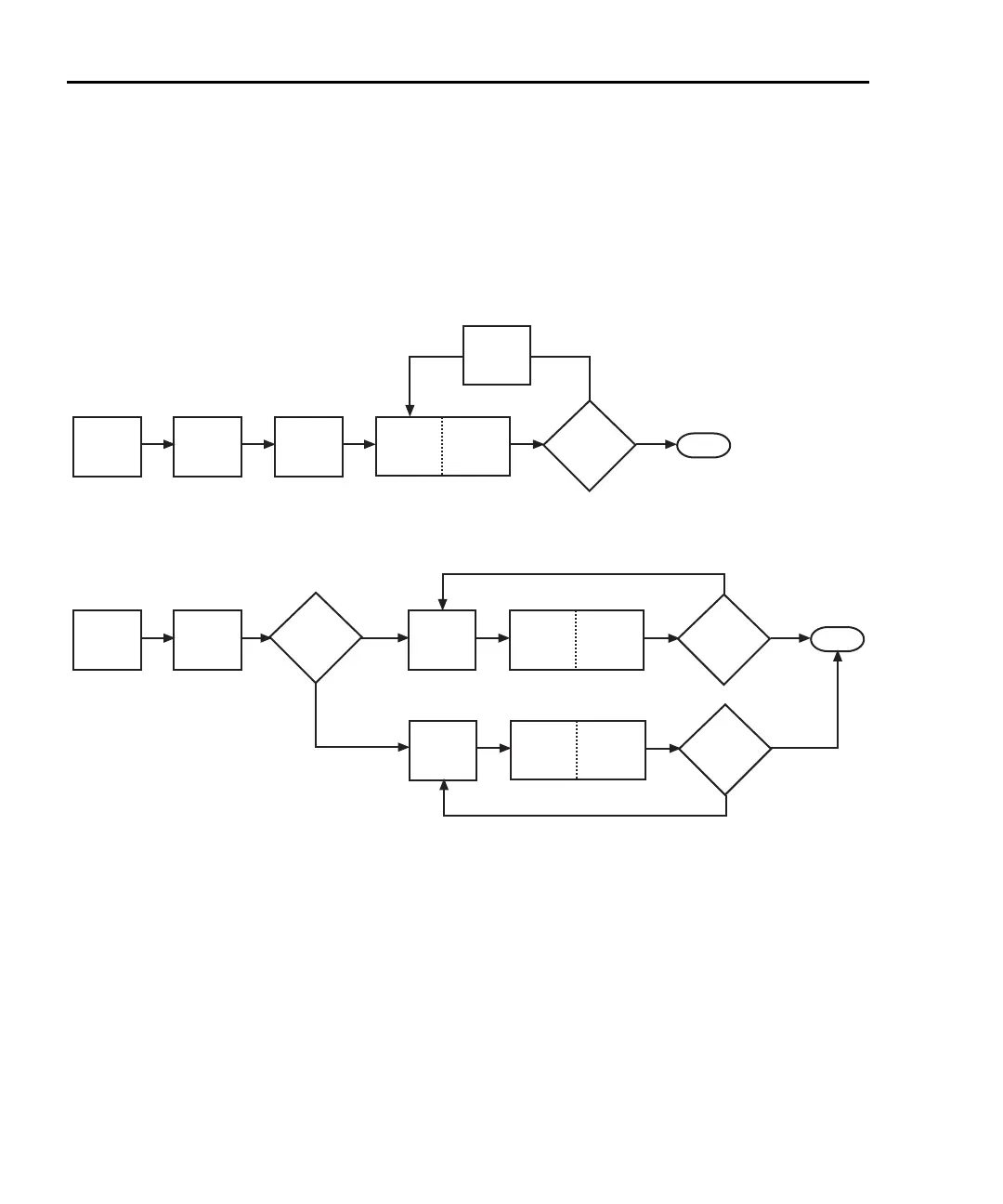

The flowcharts in Figure 2-7 show the basic processes to create and modify a
script using the Test Script Builder. The labels (A through G) are used to identify
reference links provided after the illustration.
Figure 2-7
Open a
Resource
Options: Rename Project Folder
Rename Script Files
Ye s
No
Select
Communications
Interface
Modify
Another
File
?
End
Open
Script
File
Modify
Modify
Script
Save
Script
No
Create
Another
File
?
Write
Script
Save
Script
Create
New
Script
File
Create
Ye s
Open a
Resource
Create
Project
Folder
Write
Script
Save
Script
Ye s
No
Select
Communication
Interface
One script file
is also created
Create
Another
File
?
Create
New
Script
File
End
Creating a script project
CAB D
F
AB D
F
DE
DE
E
G
Modifying a script project
Modify or
Create
Script
File
Options: Rename Project Folder
Rename Script Files
G
Start
Test Script
Builder
Start
Test Script
Builder
Creating and modifying a script using the Test Script Builder
Reference links for labels A through G shown in Figure 2-7:
A “Starting Test Script Builder”
B “Opening communications”
C“Creating a project folder”
D“Writing or modifying a script”
E“Saving a script”
F “Creating new script files”
G“Renaming a project folder and/or script file”
