Kemppi MASTERTIG AC/DC 2000 Service Manual

The power source has extra functions and selections, that can´t be seen on the display normally.
The jumper functions can sometimes solve special problems. The jumper function can be a simple
on/off type function or it may have an adjustable value.
Jumper functions in use:
1. Shut down the power source by the main switch

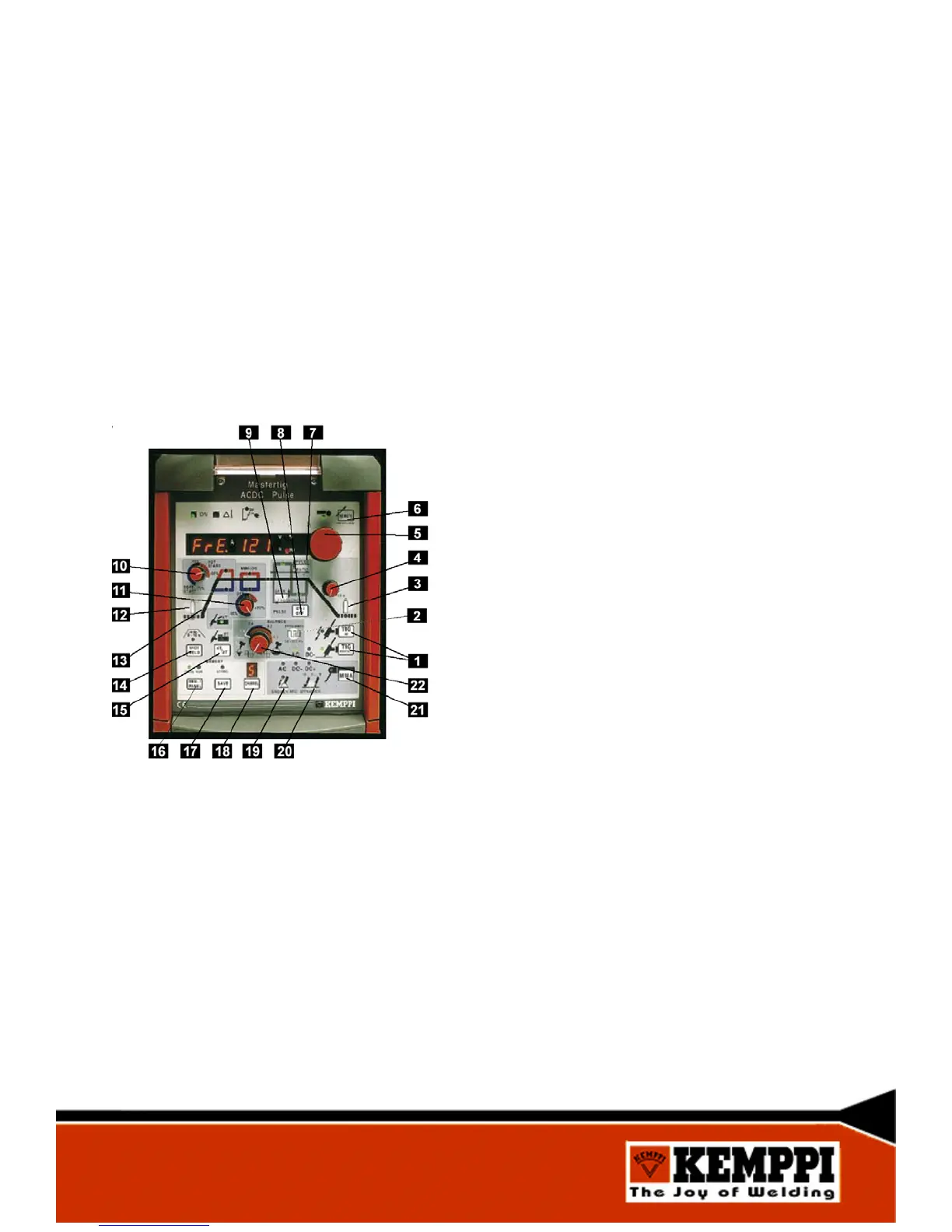

2. Press and hold down the post gas button (3) and simultaneously turn the main switch S001 to
ON.
3. Press the pregas button(12) once. J01 is shown on the display.
4. Choose the jumper to be adjusted by REMOTE (6) button.
5. Change the jumper setting by the current adjustment knob (5).
6. To save the settings, finally press the post gas time (3) button.
Jumper functions
10
