Voltage selector switch

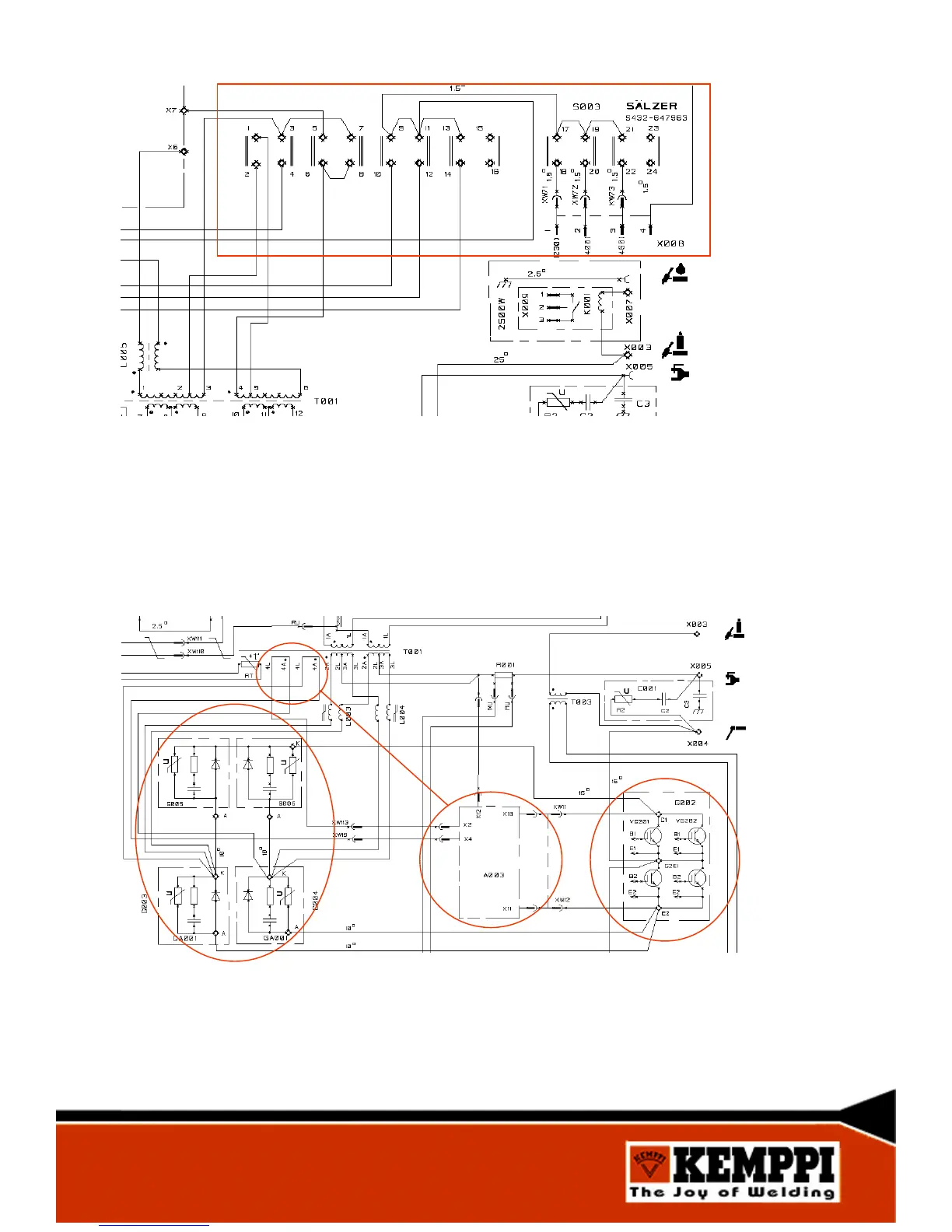

Voltage selector switch S003 is used to select the correct net voltage (3~ 230, 400, 460 Vac). It
sets the correct transformation ratios for the main transformer T001 and voltages for auxiliary
transformer T002.
Mastertig 2500 AC/DC S003
Diode cards rectify the main transformer T001´s secondary voltages. The secondary unit
G002´s IGBT-transistors genereate the current type: DC-, DC+ or AC. Control card A003
generates the auxiliary pulse (approx. 400V/ 1ms) needed in AC welding.
Mastertig AC/DCs
Secondary circuit components
21
