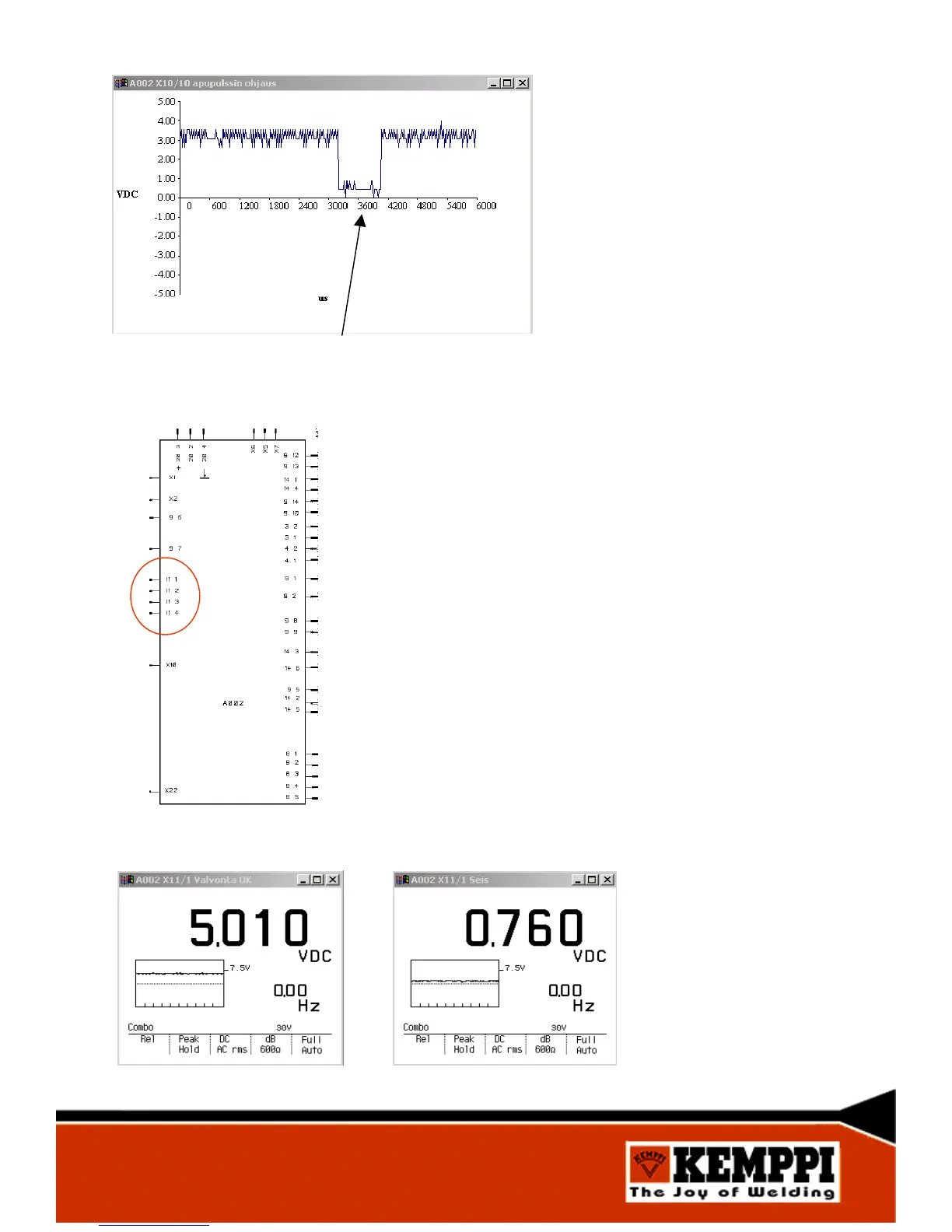

AC TIG auxiliary pulse control, voltage on connector X10/10
AC-TIG auxiliary pulse control
Measurings from control card A002 connector X11
Cooling unit monitorings, voltage on connector X11/1
Cooling OK Error, stop -command to power source
52
