Kemppi MASTERTIG AC/DC 2000 Service Manual

Function panels
1 TIG HF ignition/ contact ignition selection
2 AC-TIG frequency adjustment 50…200 Hz
3 Postgas time adjustment 0…100 s.
4 Welding current downslope time adjustment 0…15 s.
5 Current adjustment knob/selected parameter adj
6 Local-/remote control selection/code lock
11 Minilog-function selection/adjustment -80…+20 %
12 Pre gas time adjustment/code lock
13 Welding current upslope time adjustment 0…5 s.
14 2T/4T-selection
19 Broken arc welding
20 MMA welding dynamics adjustment
21 MMA welding selection
22 AC-TIG balance adjustment -70…+70 %
1 TIG HF ignition/ contact ignition selection
2 AC-TIG frequency adjustment 50…200 Hz
3 Postgas time adjustment 0…100 s
4 Welding current downslope time adjustment 0…15 s.
5 Current adjustment knob/selected parameter adj
6 Local-/remote control selection/code lock
7 Pulse-TIG pulse height adjustment 3…200, 250,
350 A/pulse ratio adjustment 10…75 %
8 Pulse-TIG selection
9 Pulse-TIG background current adjustment 20…40 %/
frequency adjustment 0,1…300 Hz
10 Start current adjustment-70...+70 %
11 Minilog-function selection/adjustment -80…+20 %
12 Pregas time adjustment/code lock
13 Welding current upslope time adjustment 0…5 s.
14 Fusion spot welding selection/adjustment 0…10 s.
15 2T/4T-selection
16 Memory channels selection
17 Welding values saving into the memory channels
18 Memory channel selection
19 Broken arc welding
20 MMA welding dynamics adjustment
21 MMA welding selection
22 AC-TIG balance adjustment -70…+70 %

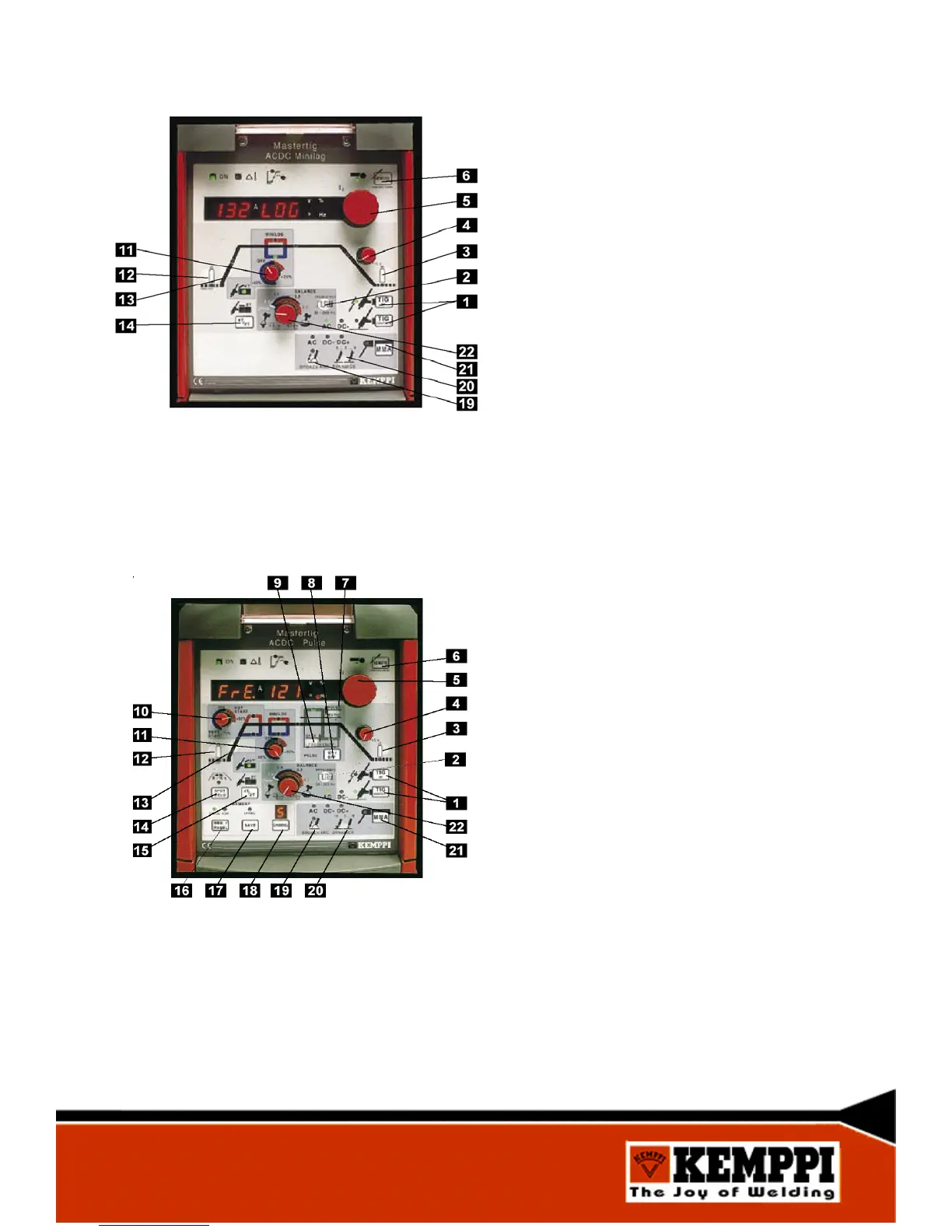

Minilog-panel
