Secondary circuit components

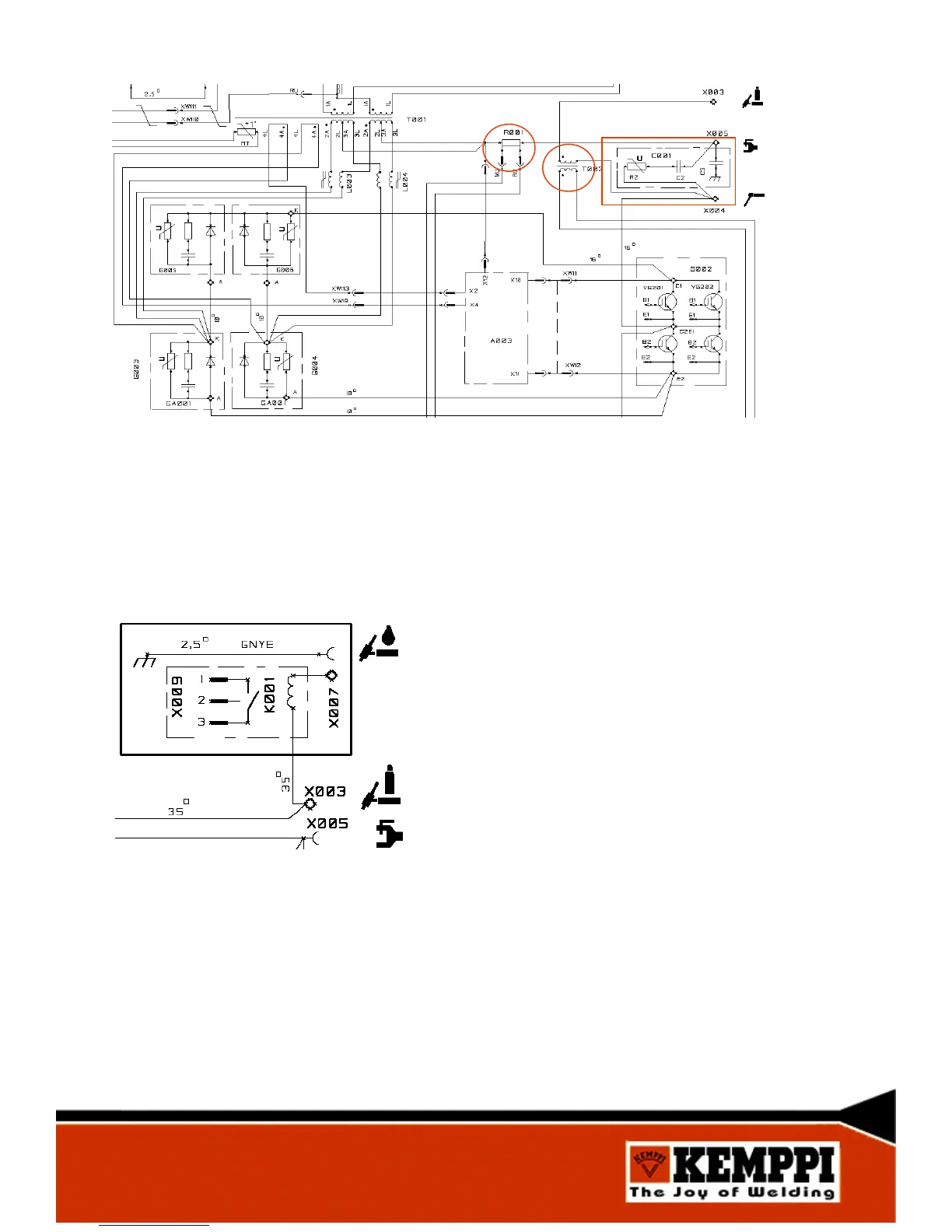

The shunt resistor R001 is used to measure secondary circuit current. The spark transformer
T003 increases the TIG ignition spark to approx. 10 kV. C001 gives protection against the
TIG ignition spark.
Reed-relay K001 protects the liquid cooled TIG-torch, in case the cooling method selector switch
is in gas-position.
