Kemppi MASTERTIG AC/DC 2000 Service Manual

Diode card layout

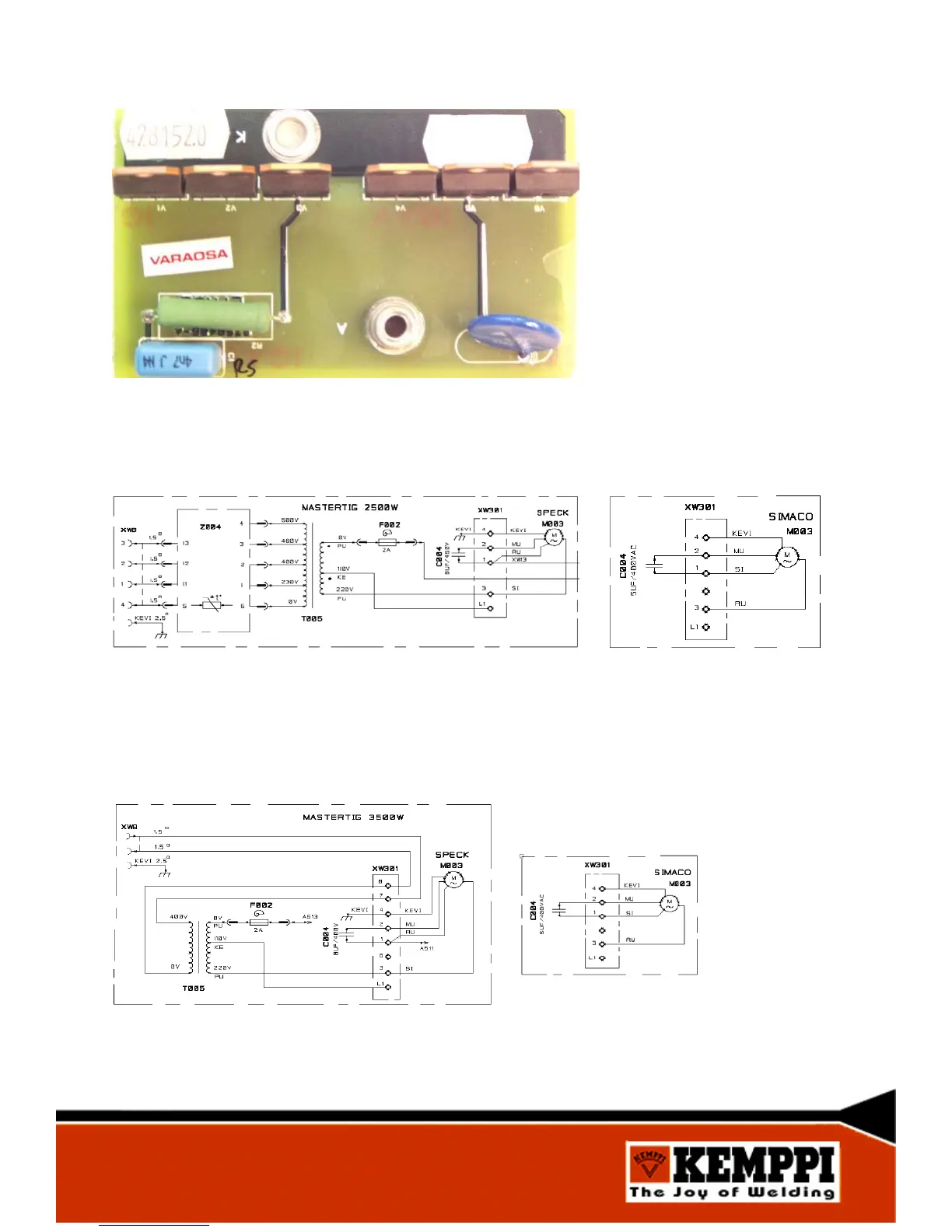

The auxiliary transformer T005 generates the 230 Vac supply voltage for the pump motor.
The filter card Z004´s PTC-resistors protect the auxiliary transformer T005, if a wrong supply
voltage is selected by the voltage selector switch S003.
Cooling unit
Mastertig 2500W AC/DC
Mastertig 3500W AC/DC
The auxiliary transformer T005 generates the 230 Vac supply voltage for the pump motor.
23

Kemppi MASTERTIG AC/DC 2000 Specifications

General

Brand	Kemppi
Model	MASTERTIG AC/DC 2000
Category	Welding System
Language	English
