Kemppi MASTERTIG AC/DC 2000 Service Manual
4
of 1
of 1 rating
83 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Process selection from remote contr
o
ller, voltage on connector X8/1-4
MMA
TIG
Mastertig 2000 AC/DC inverter controls

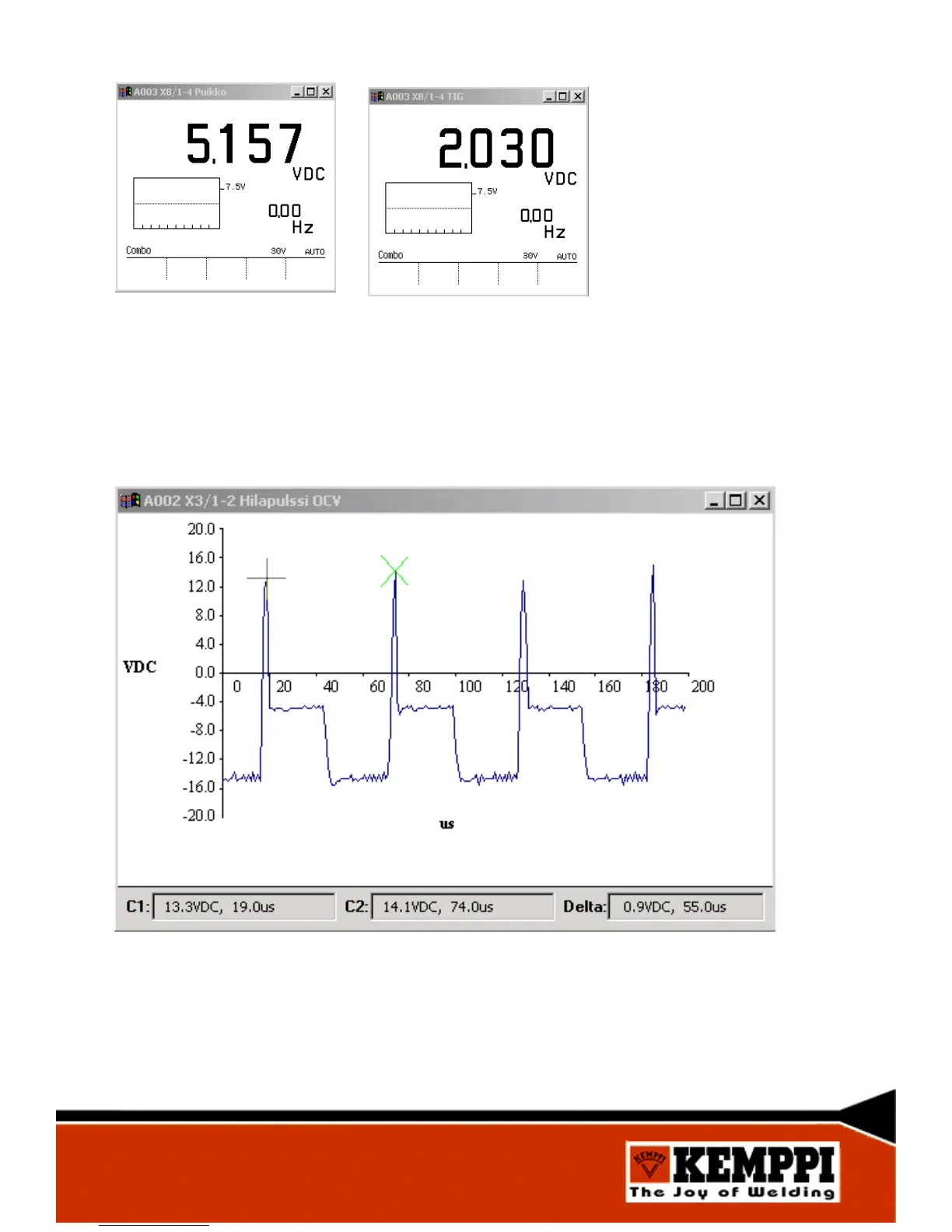

IGBT gate pulse con
trol on MM
A / idling
IGBT gate pulses, voltage
on connector X3/1-2 (A002)
Master
tig 2000 AC/DC
57
56
58
Table of Contents
Service Manual
1
Technical Data
4
Technical Data
5
Switches and Connectors
6
Switches and Connectors
8
Function Panels
9
Jumper Functions
10
Jumper Functions
11
Error Codes
12
Operation Principle
14
Filter Cards
15
Filter Cards
16
Filter Card Layout
17
Main Circuit Cards
18
Main Circuit Cards
19
Main Circuit Cards Layout
20
Secondary Circuit Components
21
Secondary Circuit Components
22
Diode Card Layout
23
Filter Card Z004 Layout
24
Control Card A005 Layout
25
Control Card A001 Connectors
26
Control Card A002 Layout
29
Control Card A003 Layout
31
Control Card A004 Layout
32
Structure
33
Structure
35
Troubleshooting
36
Troubleshooting
37
Measurings from Control Card A002 Connector X8
46
Measurings from Control Card A002 Connector X9
48
Measurings from Control Card A002 Connector X10
50
Measurings from Control Card A002 Connector X10
52
Measurings from Control Card A002 Connector X20
53
Measurings from Control Card A003 Connector X3
54
Measurings from Control Card A003 Connector X8
56
Mastertig 2000 AC/DC Inverter Controls
57
Mastertig 2500 AC/DC Inverter Controls
70
Mastertig 3500 AC/DC Inverter Controls
77
