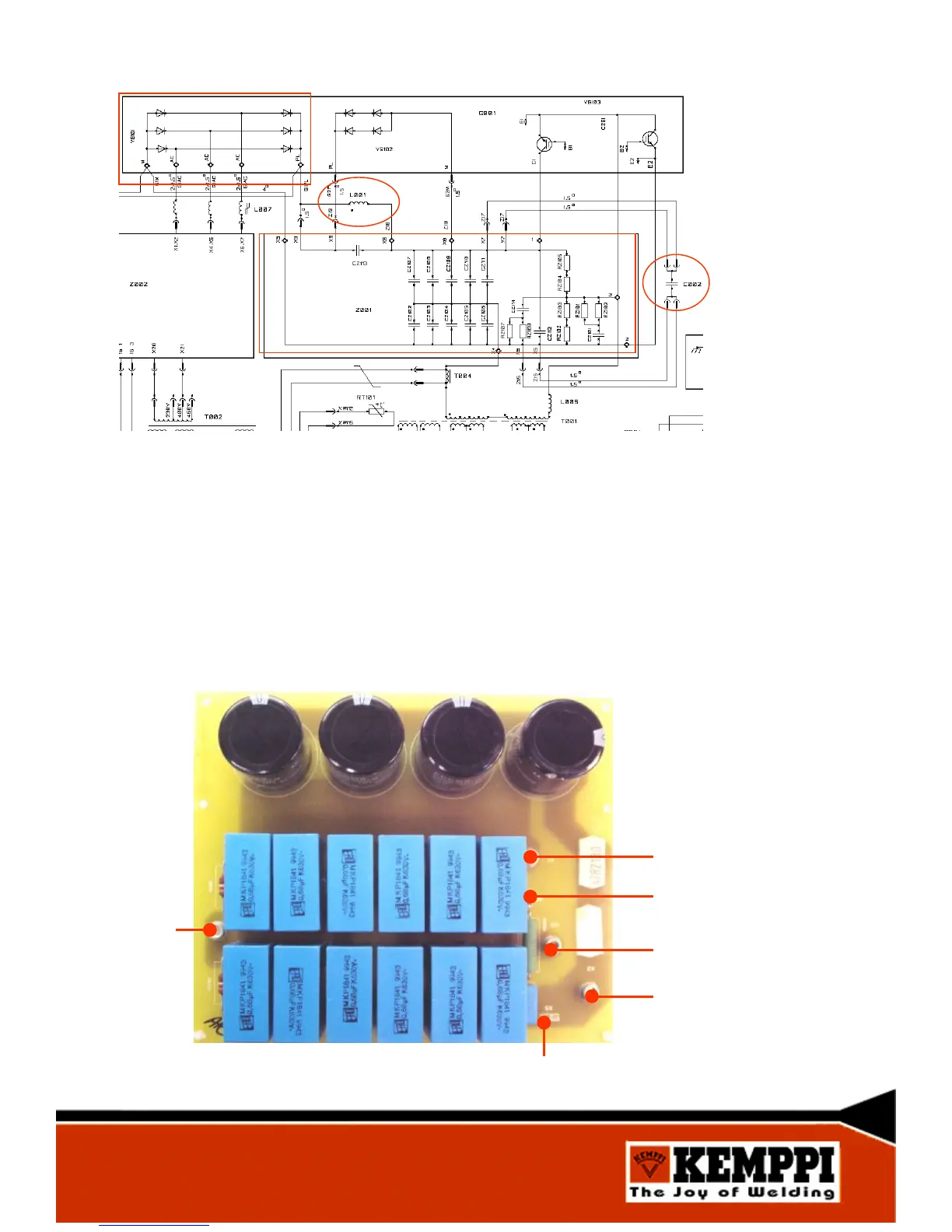

Main circuit cards
The primary rectifier VG101 rectifies the net voltage. Primary choke L001 and smoothing
capacitor C002 filter the DC voltage. The primary inverter´s working capacitors are mounted onto
the main circuit card Z001.
Mastertig 3500 AC/DC Z001
Main circuit cards layout
X4
X1
X6
X3
X2
X5
Mastertig 2000 AC/DC Z002
19
