Kemppi Minarc Evo 150 Service Manual

Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
8
Kemppi Oy

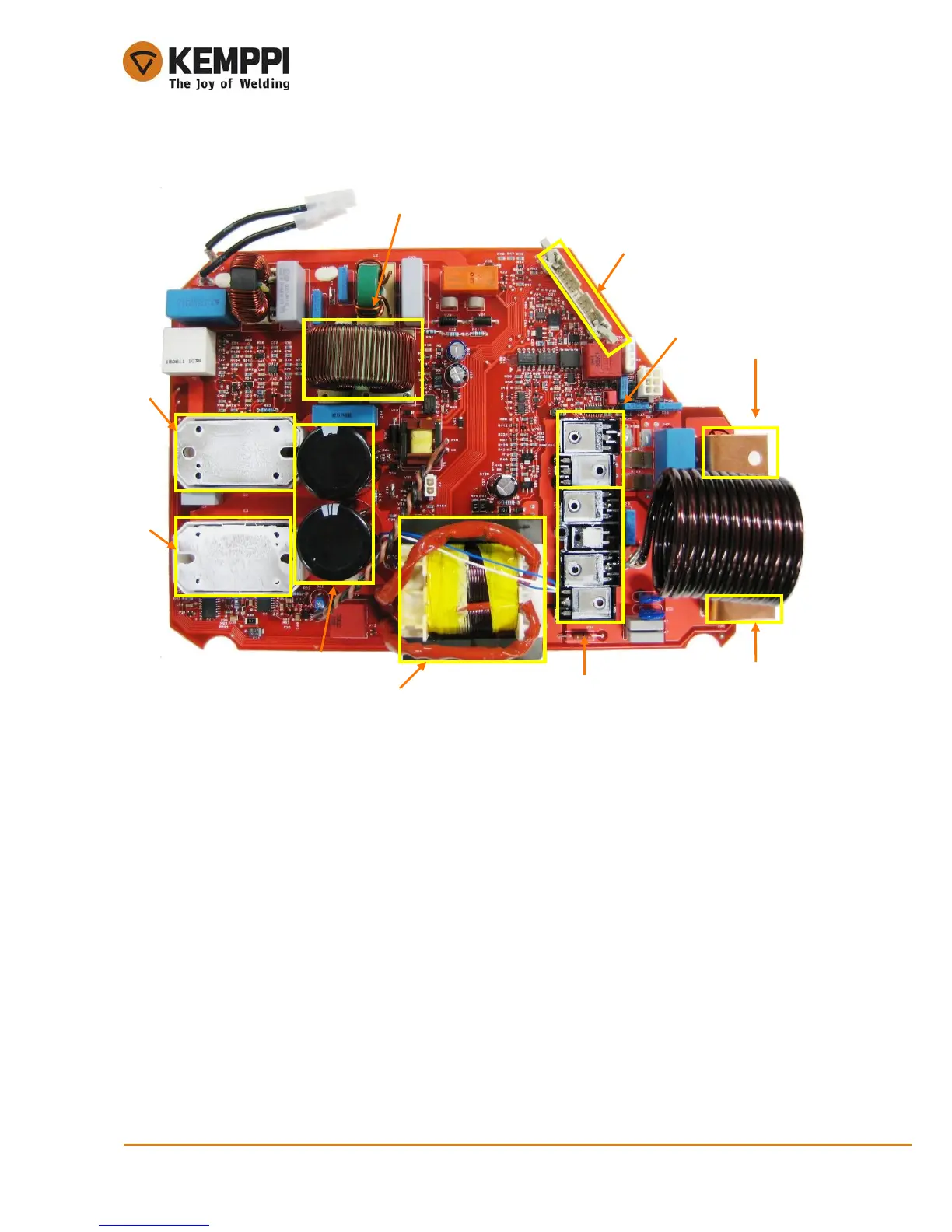

3.3.2. Z001 main circuit card structure
1.
2.
3.
4.
5.
6.
7.
9.
8.
1. Primary rectifier and PFC module
2. IGBT module
3. DC-link capacitors
4. Main transformer
5. Secondary diodes, zero side + stress reduction resistor
6. Negative output connector
7. Positive output connection
8. Secondary diodes, positive side
9. X9 connector to A001 card
10. PFC choke
10.
