Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
22
Kemppi Oy
4.3.1.4. Voltages

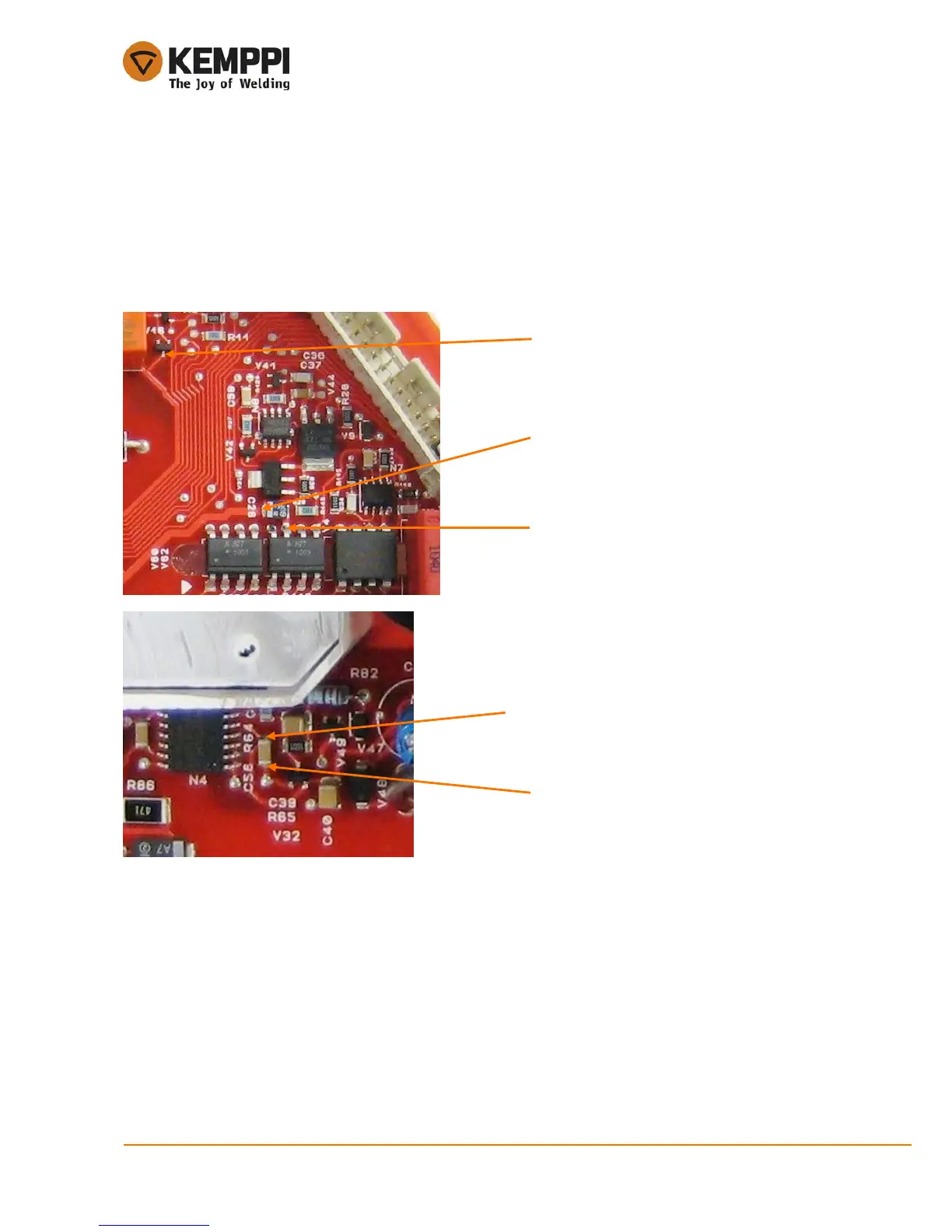

The Z001 main circuit card has the DC-link voltage after the input rectifier and several auxiliary voltages
made by the auxiliary PSU. Floating point voltage and remote control reference voltage need their own
ground points to get right values.
Note! Most voltages are in the primary side. Even touching the ground level may affect electric
shock because there is up to 120VDC between the ground and protective earth.
C26 left side
connection point
+24VDC,
V46 bottom leg
Primary GND,
V62 leg on the upper
side, second from left
Floating +16VDC,
C56 upper connection
point
Floating GND,
C56 bottom connection point
