Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
24
Kemppi Oy
Both primary modules NTCs are integrated inside the module:
 Measure the resistance, it should be between 60-15kΩ in a cool machine (in
environment temperature 0-40°C)
 While temperature rises resistance lowers and at 2kΩ point the inverter stops and gives
overheat alert.
 A broken NTC has usually hundreds of kilo ohms resistance, no value at all or short
circuit.

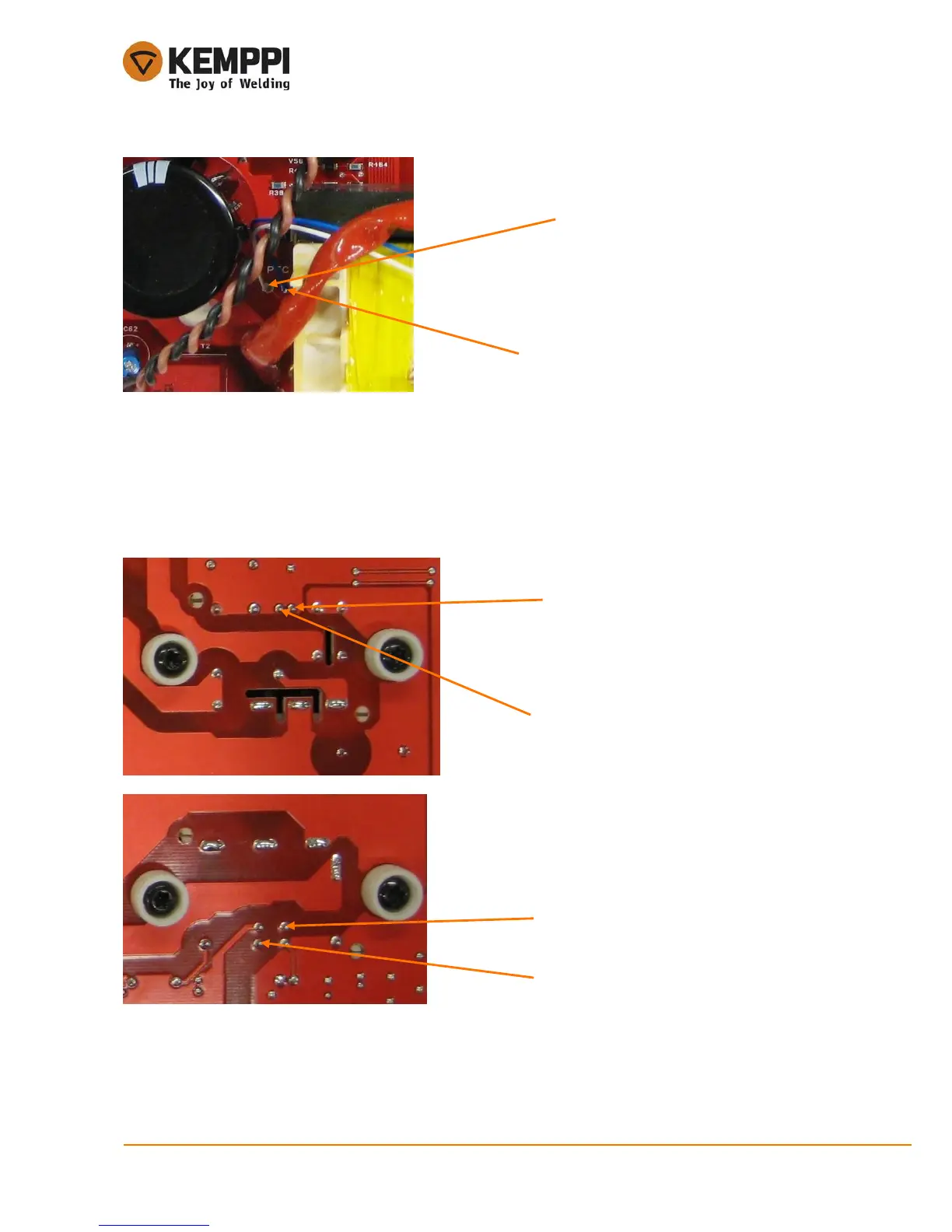

4.3.2. A001 control card
PTC common point
Main transformer PTC
resistor
NTC common point
Rectifier/PFC module NTC
resistor
NTC common point
IGBT module NTC resistor
