Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
25
Kemppi Oy

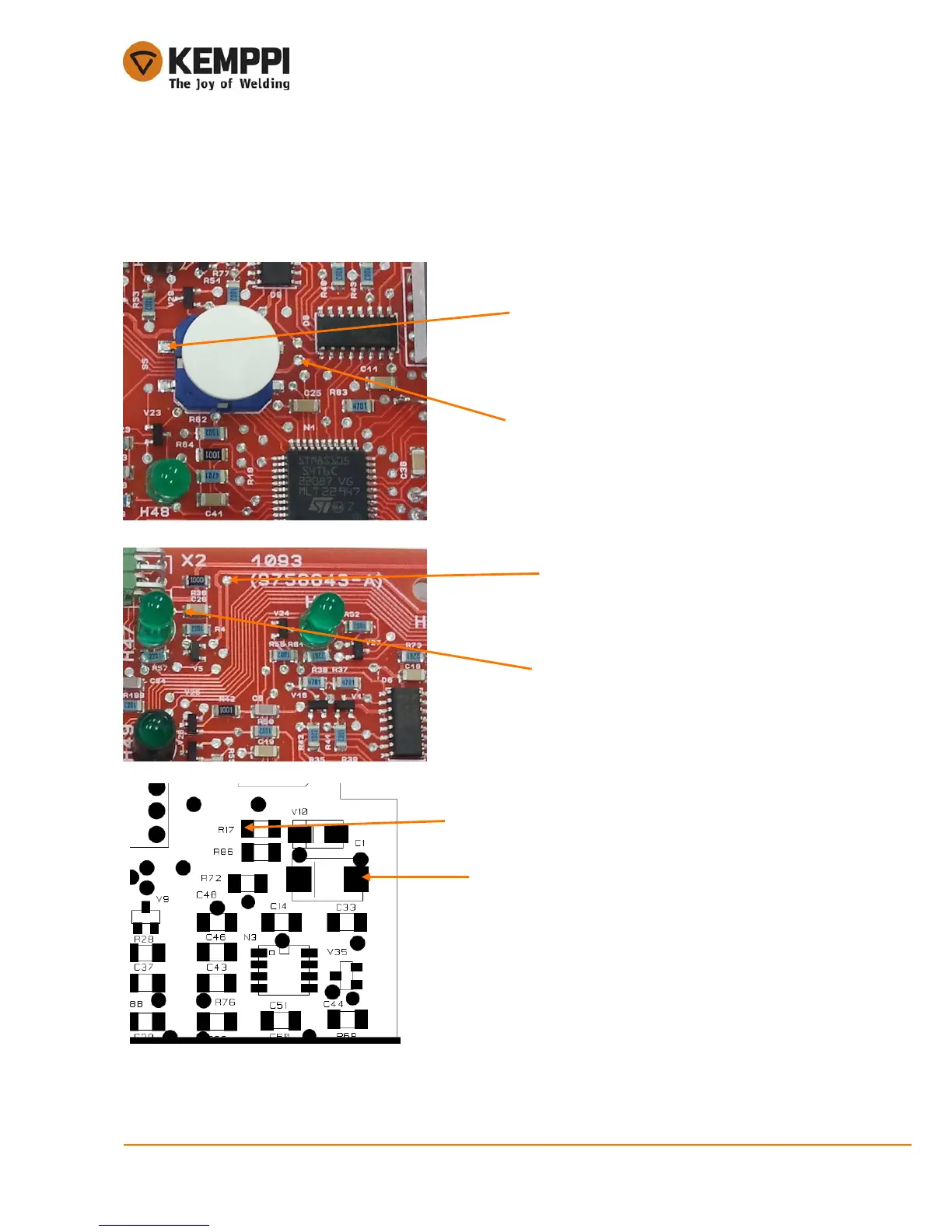

Control card voltages have common ground, on the primary side. +16VDC and +24VDC PSU are located
on the Z001 card. +5VDC is made on the A001 card.
Note! Voltages are in the primary side. Even touching the ground level may affect electric shock
because there is up to 120VDC between the primary ground and protective earth.
GND,
S5 upper leg
+5VDC
Test point between the S5
switch legs. Also N3
second leg from the lower
left
+16VDC,
Test point
GND,
C26 left side or upper leg
of S5 as shown in the
previous picture
+24VDC,
R17 left side connection point
GND,
C1 right side
