Service manual Minarc Evo 150 and 180
Version 1.3
30.9.2015
23
Kemppi Oy
4.3.1.5. Overheat protection
Main transformer PTC is soldered to the Z001 main circuit card:
 Measure the resistance: It should be less than 100Ω
 In over temperature situation PTC goes to high-resistance mode (>10kΩ)
 Machine gives temperature alarm at 1,5kΩ
 A broken PTC has usually hundreds of kilo ohms resistance or no value at all.

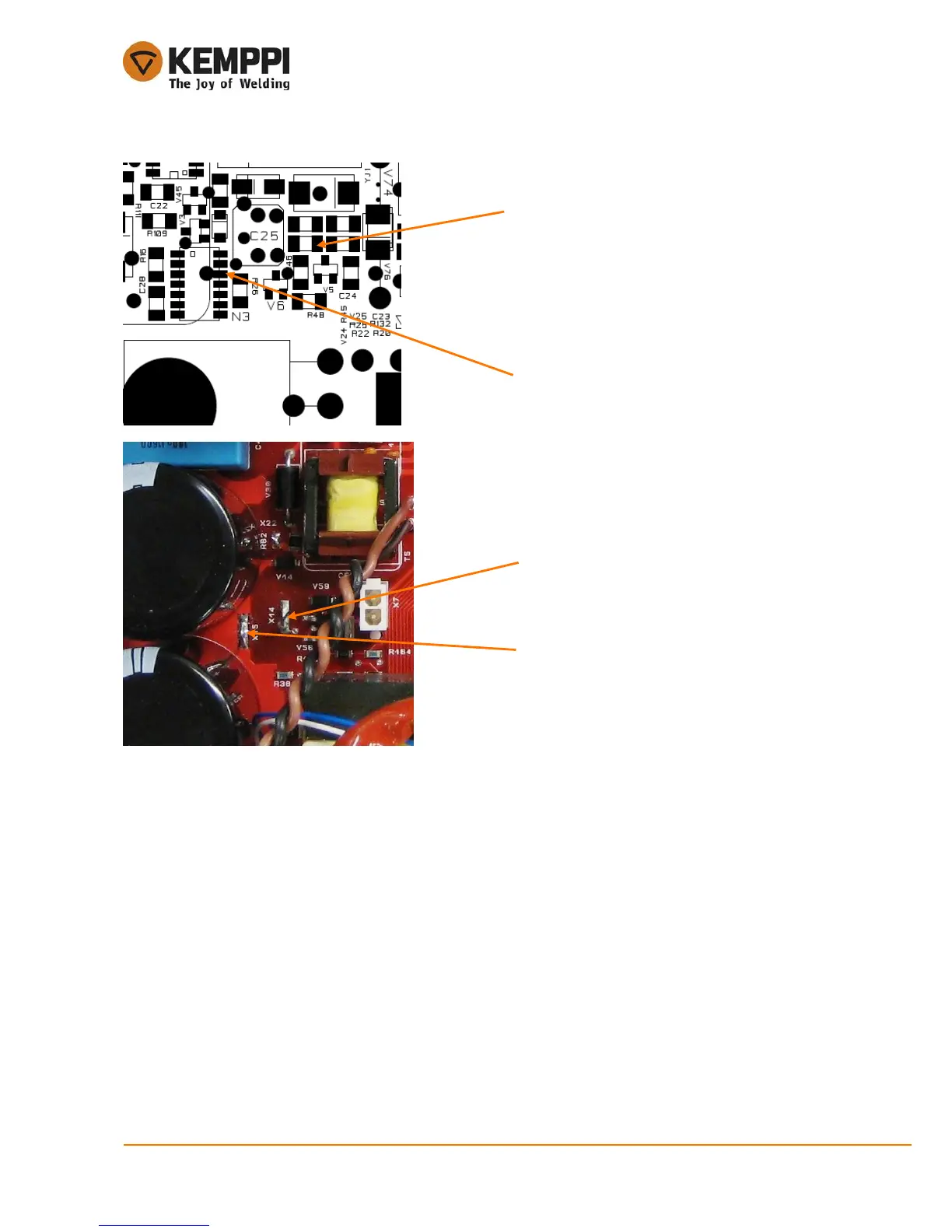

+12VDC,
Test point on the right
side of R22
Reference ground, N3
right side, third leg
from top
+390VDC,
DC-link,
TP4
Primary GND,
TP5
