Kemppi WFX 200 - 2. INSTALLATION; 2.1 Machine introduction

WFX 200, 300, 200 P Fe/Ss, 300 P Fe/Ss, 200-T, 300 P-T, 300-T, 200 AMC, 300 AMC
4
EN
2. INSTALLATION

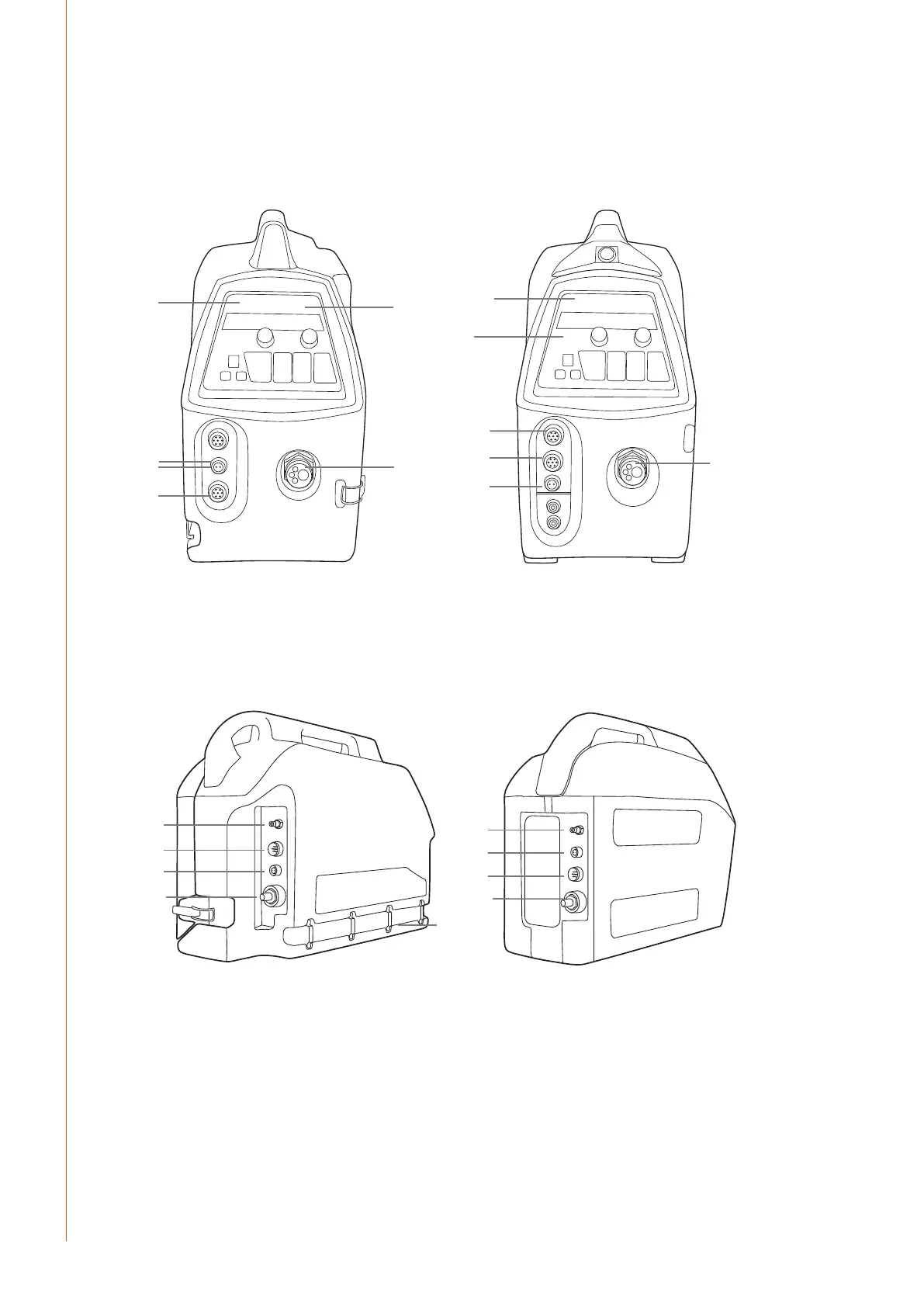

2.1 Machine introduction
WFX 300 P Fe, WFX 300 P Ss, WFX 300 P-T WFX 300, WFX 300 AMC, WFX 300-T
4.
2.
1.
3.
5.
2.
1.
3.
5.
4.
6.
1. Control panel
2. ON/OFF button
3. Euro gun connection
4. Voltage sensing cable connection
5. Remote control connection
6. Sub-feeder sync connector (kit optional)
8.
11.
10.
9.
7.
8.
10.
9.
7.
7. Shielding gas connection
8. Control cable connection
9. Measurement cable connection
10. Welding current cable connection
11. Lead-in and clamping of cooling
liquid hoses
7. Shielding gas connection
8. Measurement cable connection
9. Control cable connection
10. Welding current cable connection
