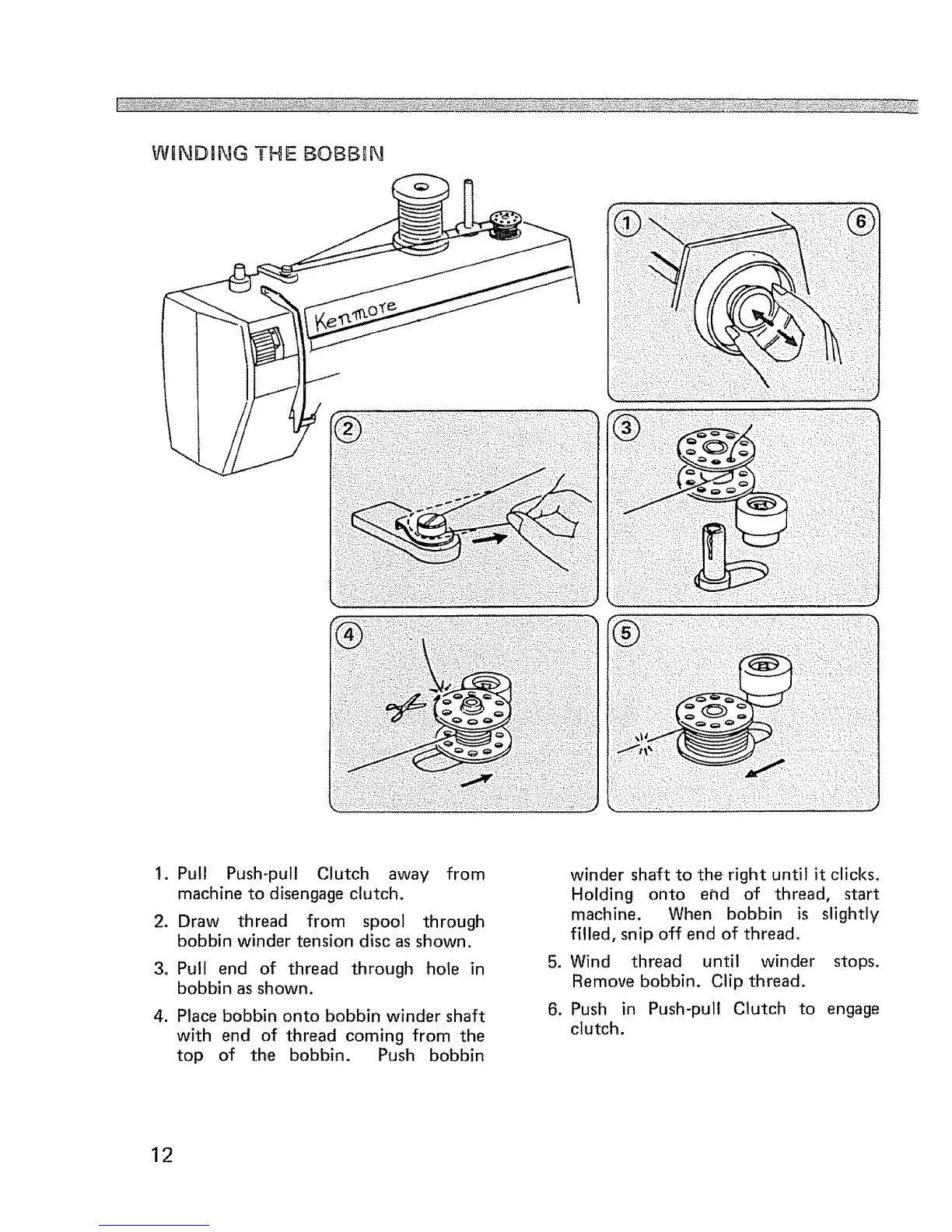

WGND_NG THE BOBBIN
1. Pull Push-pull Clutch away from
machine to disengage clutch.
2, Draw thread from spool through
bobbin winder tension disc as shown.
30 Pull end of thread through hole in
bobbin as shown.
4. Place bobbin onto bobbin winder shaft
with end of thread coming from the
top of the bobbin. Push bobbin
winder shaft to the right until it clicks.
Holding onto et_d of thread, start
machine. When bobbin is slightly
filled, snip off end of thread.
5. Wind thread until winder stops.
Remove bobbin. Clip thread.
6. Push in Push-pull Clutch to engage
clutch.
12
