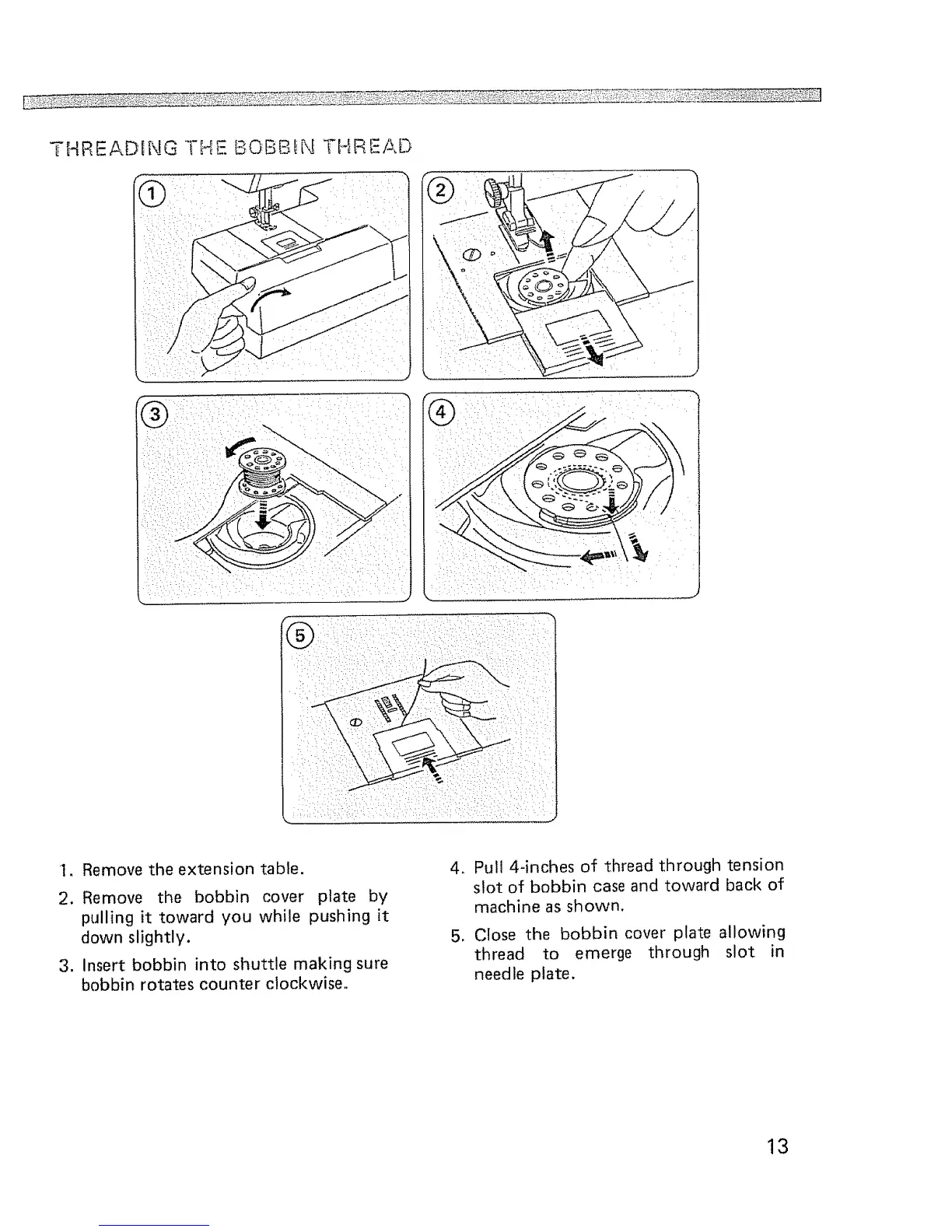

THREADING "THE BOBBIN THREi-_,D
t_ Remove the extension table.
2. Remove the bobbin cover plate by
pulling it toward you while pushing it
down slightly.
3. Insert bobbin into shuttle making sure
bobbin rotates counter clockwise.
4. Pull 4-inches of thread through tension
slot of bobbin case and toward back of
machine as shown.
5. Close the bobbin cover plate allowing
thread to emerge through slot in
needle plate.
13
