Kenmore 16951 - Threading Top Thread

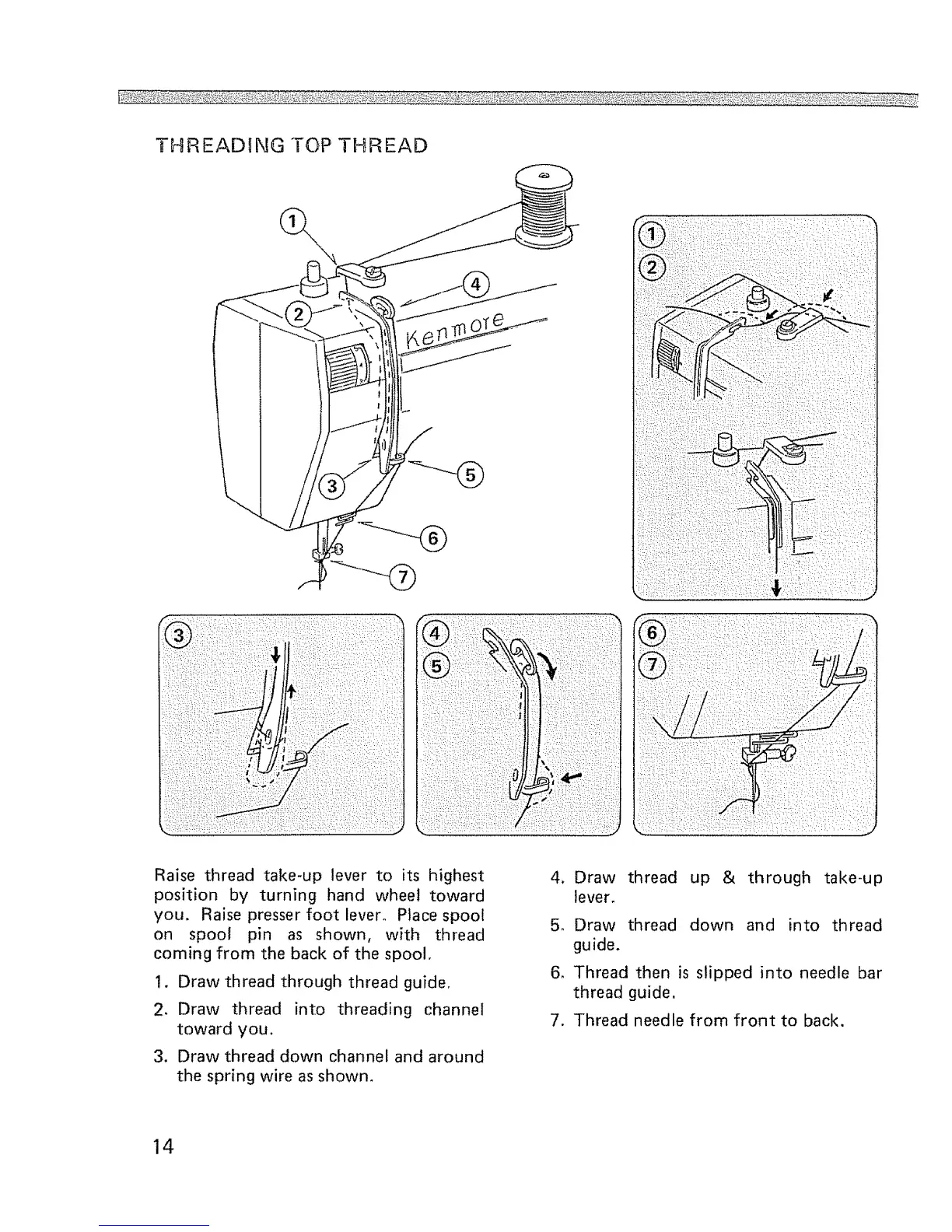

THREADING TOP THREAD
Raise thread take-up lever to its highest
position by turning hand wheel toward
you. Raise presser foot lever, Place spool
on spool pin as shown, with thread
coming from the back of the spool,
!. Draw thread through thread guide,
2, Draw thread into threading channel
toward you.
3. Draw thread down channel and around
the spring wire as shown,
4. Draw thread up & through take-up
lever.
5o Draw thread down and into thread
guide.
6. Thread then is slipped into needle bar
thread guide.
7. Thread needle from front to back.
14
