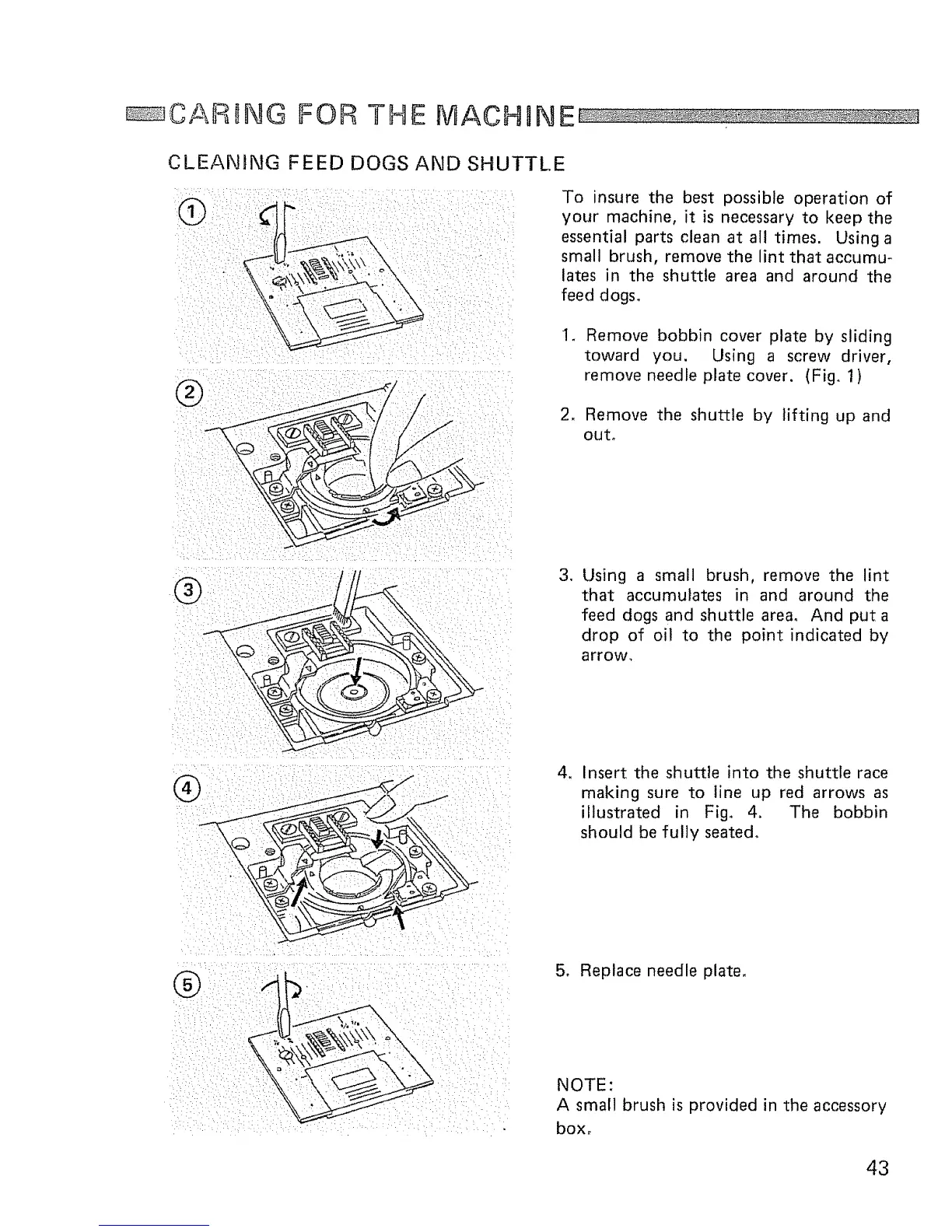

CLEANING FEED DOGS AND SHUTTLE
To insure the best possible operation of
your machine, it is necessary to keep the
essential parts clean at all times. Using a
small brush, remove the lint that accumu-
lates in the shuttle area and around the
feed dogs,
1, Remove bobbin cover plate by sliding
toward you. Using a screw driver,
remove needle plate cover. (Fig, 1 )
2. Remove the shuttle by lifting up and
out°
®
3, Using a small brush, remove the lint
that accumulates in and around the
feed dogs and shuttle area, And put a
drop of oil to the point indicated by
arrow,
®
®
4. Insert the shuttle into the shuttle race
making sure to line up red arrows as
illustrated in Fig, 4, The bobbin
should be fully seated°
5o Replace needle plate.
NOTE :
A small brush is provided in the accessory
box°
43
