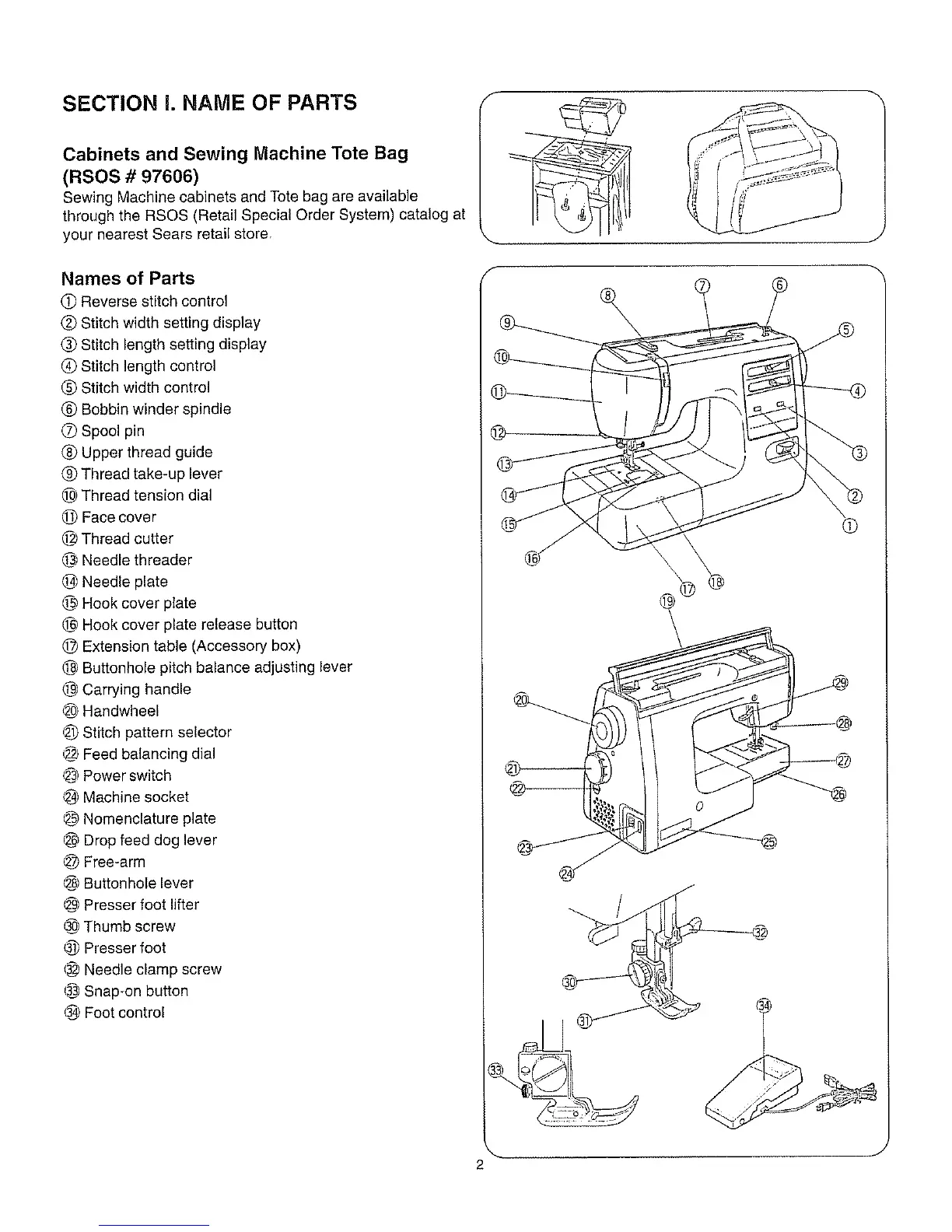

SECTION I. NAME OF PARTS
Cabinets and Sewing Machine Tote Bag
(RSOS # 97606)
Sewing Machine cabinets and Tote bag are available
through the RSOS (Retail Special Order System) catalog at
your nearest Sears retail store,
Names of Parts
(_ Reverse stitch control
Stitch width setting display
_) Stitch length setting display
_) Stitch length control
Stitch width control
(_ Bobbin winder spindle
O Spool pin
Upper thread guide
Thread take-up lever
Thread tension dial
Face cover
C2_Thread cutter
_) Needle threader
Needle plate
_. Hook cover plate
1_ Hook cover plate release button
(_ Extension table (Accessory box)
_/Buttonhole pitch balance adjusting lever
Carrying handle
__ Handwheel
Stitch pattern selector
Feed balancing dial
_.) Power switch
Machine socket
Nomenclature plate
_ Drop feed dog lever
_-_Free-arm
_ Buttonhole lever
Presser foot litter
_) Thumb screw
_ Presser foot
(_ Needle clamp screw
I_) Snap-on button
_ Foot control
f
@
@
®
J
@
